7. SADDLE STITCHING SECTION
B. Bundle arm rotation mechanism

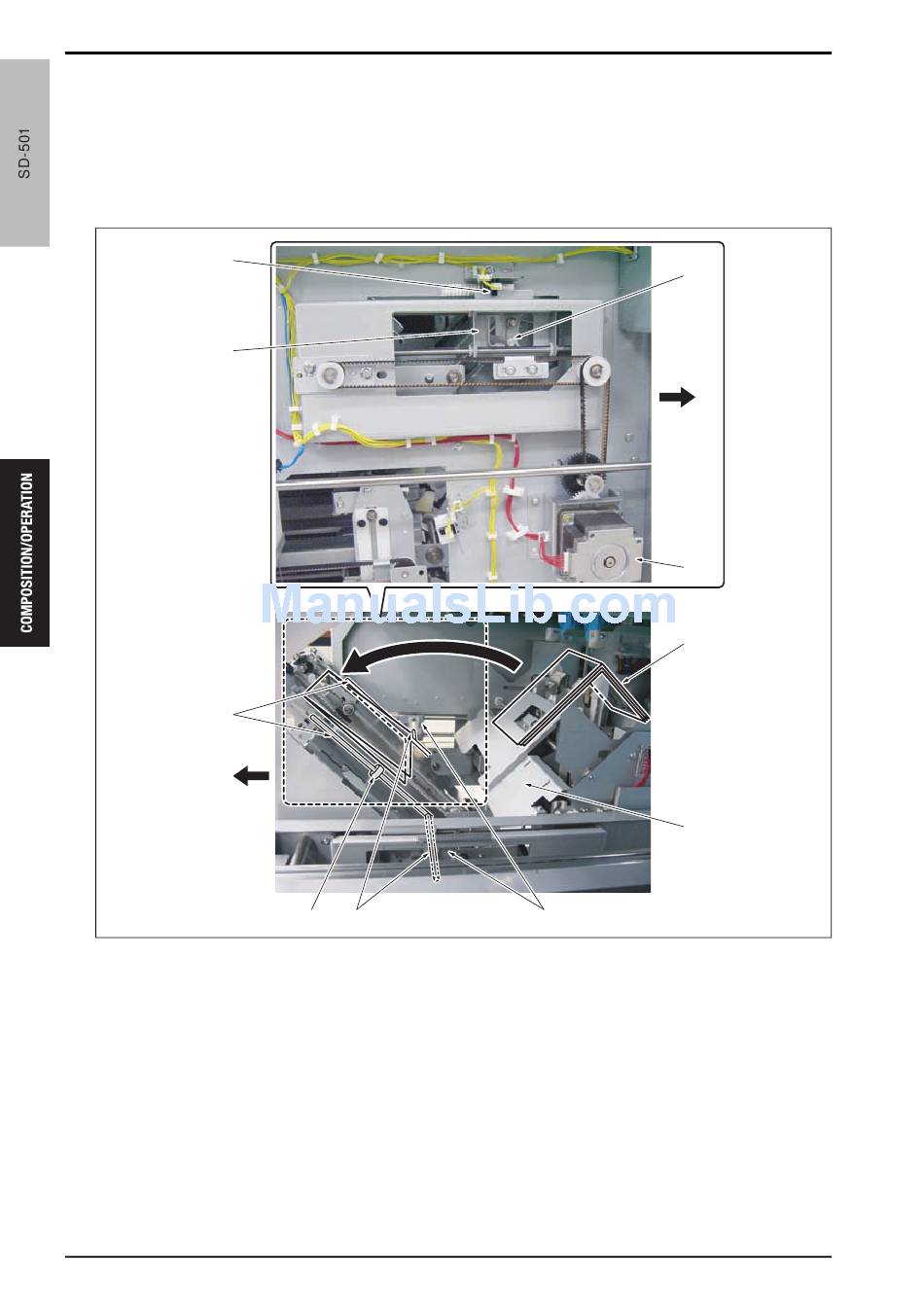

The bundle arm rotation motor (M22) [2] drives the bundle arm [8] via the belt, slide guide [5], and guide shaft [6].
When M22 drives the slide guide [5] in the main scan direction, the guide shaft [6] passing through the long hole
of the slide guide is rotated, and then the bundle arm [8] is rotated around the fulcrum. When it is driven to the
paper [3] side, M22 stops where the ring [7] is contacted with the guide plate [4].
The bundle arm rotation home sensor (PS31) [9] detects the home position of the bundle arm.
[9]
[5]
[8]
[1]
[1] Front side direction
[2] Bundle arm rotation motor (M22)
[3] Paper
[4] Guide plate
[5] Slide guide
72
[7] [6]
Theory of Operation Ver2.0 Sep.2006
[5]
[6] Guide shaft
[7] Ring
[8] Bundle arm
[9] Bundle arm rotation home sensor (PS31)
[6]
[1]
[2]
[3]
[4]
15ant2c045na
