Operation - Develop ineo+ 6500 Service Manual

Theory of Operation Ver1.0 Sep.2006
6.3

Operation

• The reverse roller and the paper exit roller are driven by the reverse/paper exit motor (M303).
• One-way clutch rotates the paper exit roller only in the paper exit direction when M303 drives both forward
and reverse.

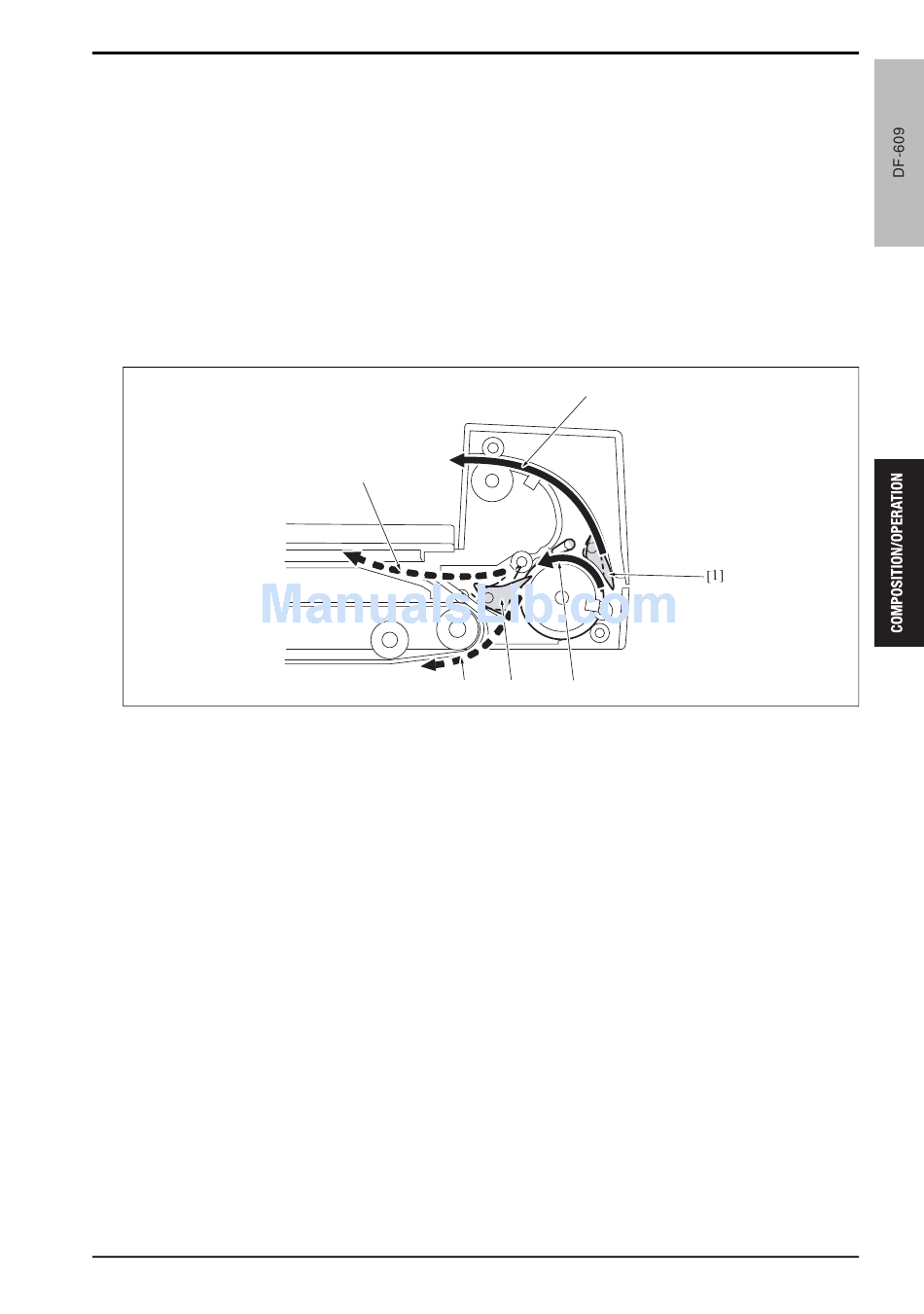

• The paper exit gate and the reverse gate switch the path of the reverse paper exit.
• The paper exit gate [1] is driven by the paper exit solenoid (SD301). The path is switched to the reverse
path [2] when SD301 is turned off while the path is switched to the straight paper exit path [6] when SD301
is turned on.
• The reverse gate [3] is driven by the reverse solenoid (SD302). The path is switched to the reverse stacker
path [5] when SD302 is turned off while the path is switched to the back side reverse path [4] when SD302
is turned on.
[1] Paper exit gate
[2] Reverse path
[3] Reverse gate
[5]
[4] [3]
[4]
[5]
[6]
6. REVERSE/PAPER EXIT SECTION
[6]
[2]
Back side reverse path
Reverse stacker path
Straight paper exit path
a052t2c015ca
23
