Develop ineo+ 6500 Service Manual page 610

Theory of Operation Ver2.0 Sep.2006

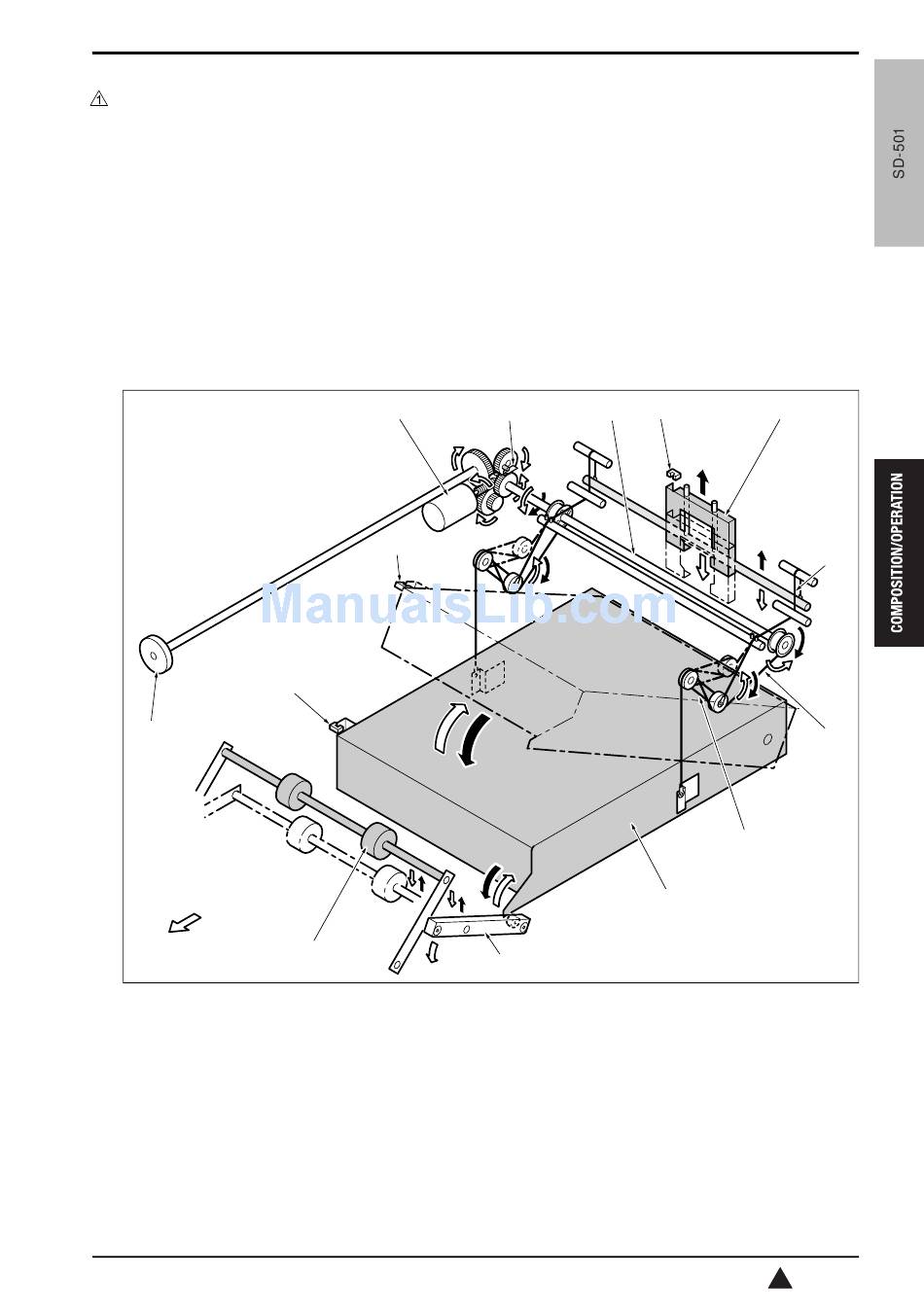

A. Mechanism
The bundle press stage up down motor (M24) [12] rotates the wire winding shaft [14] and winds up the lift wire
[3]. During the initial phase, the wire is tightened and the wire arm [4] comes to the horizontal position but the
bundle press stage [5] doesn't move up. At the time, as the wire arm comes horizontal, the bundle registration
plate wire [2] is loosen and the bundle registration plate [1] moves down and works as the stopper against the
registration operation.
Then, the bundle press stage moves up as the wire winding shaft [14] rotates and winds up the up down wire [3]
and it stops when the bundle press stage up down limit sensor (PS45) [11] turns ON.
The home positions (shelter position) for the bundle registration plate and the bundle press stage are detected
by the bundle registration plate home sensor (PS16) [15] and the bundle press stage up down home sensor
(PS35) [10] respectively.
The over-winding-prevention stopper [13] prevents the over winding since you can move up and down the bun-
dle press stage manually by rotating the knob [9].
[9]
[7]
[1] Bundle registration plate
[2] Bundle registration plate wire
[3] Lift wire
[4] Wire arm
[5] Bundle press stage
[6] Bundle exit auxiliary roller arm
[7] Front side direction
[8] Bundle exit auxiliary roller
[12]
[11]
[10]
[8]
8. BUNDLE PROCESSING SECTION
[13] [14] [15]
[5]
[6]
[9] Knob
[10] Bundle press stage up down home sensor
(PS35)
[11] Bundle press stage up down limit sensor (PS45)
[12] Bundle press stage up down motor (M24)
[13] Over-winding-prevention stopper
[14] Wire winding shaft
[15] Bundle registration plate home sensor (PS16)
[1]
[2]
[3]
[4]
15ant2c056na
