Bundle registration control

The paper registration operation reforms the skew at trimming.
A. Mechanism
The bundle registration motor (M12) drives the registration claws [4].
Two registration claws [4] conduct the registration by making the paper [14] contact [3] with the bundle registra-
tion plate [13] from the gutter side.
In the registration operation, the bundle press section [7] conducts the pressing by moving to the appropriate
position in accordance with the paper size. To conduct the bundle registration, the registration claws [4] press
the paper until the actuator [2] on the bundle press section comes in the upright position and the trimmer regis-
tration sensor (PS55) [1] turns ON.
The bundle exit claws [9] are located at the 180° opposite to the registration claws on the belt. M12 rotates in
the reverse direction [10] to exit the paper at the paper exit.
The home position of the registration claws [4] is detected when the registration claws push the actuator [11]
and turns ON the bundle registration home sensor (PS34) [12].
[13]
[12]
[11]
[10]

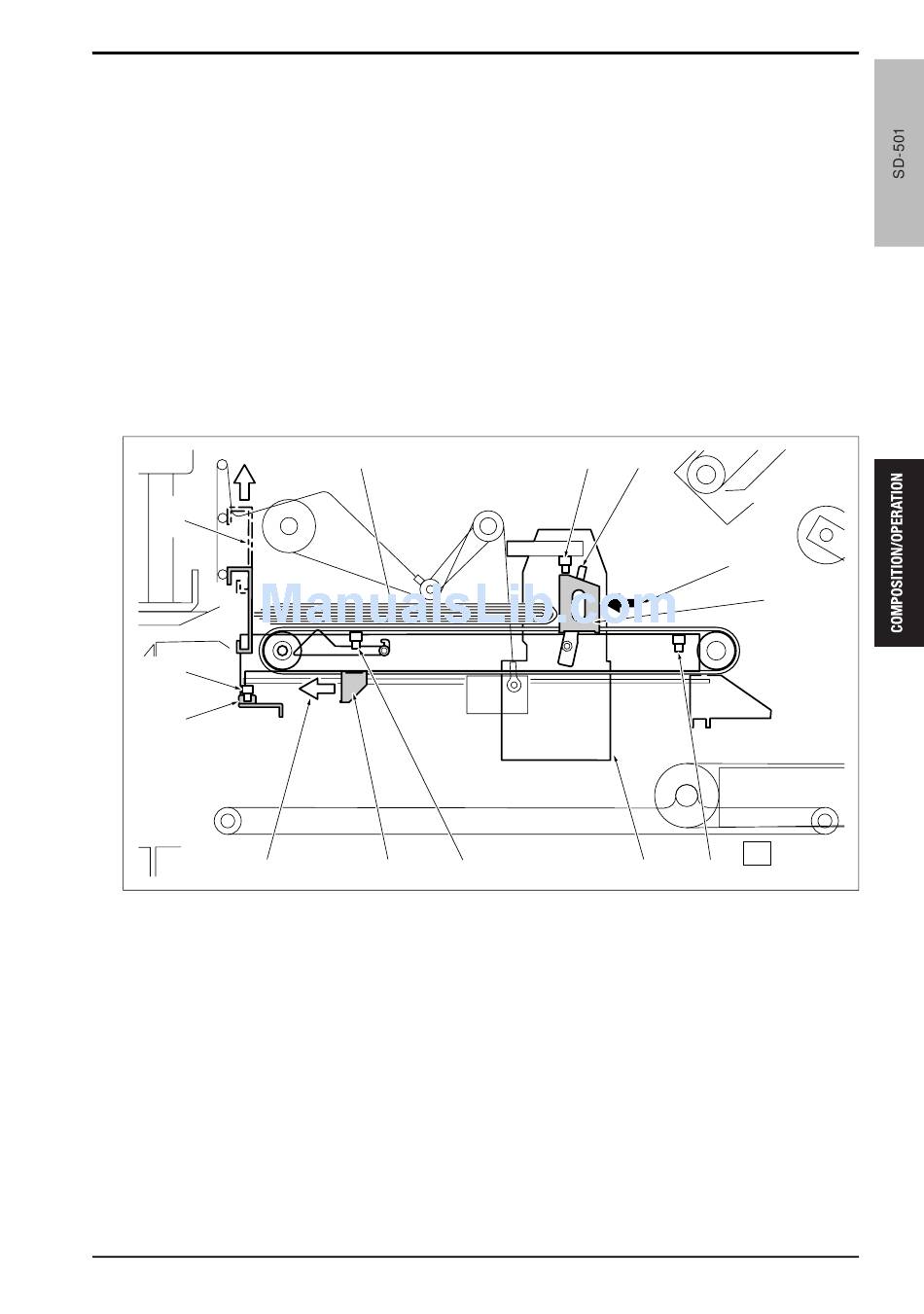

[1] Trimmer registration sensor (PS55)
[2] Actuator
[3] Registration direction
[4] Registration claws
[5] Left side view
[6] Bundle sensor /2 (PS15)
[7] Bundle press section
[14]
[9] [8]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
