4. PAPER FEED SECTION
4.3.7

Remaining paper detection control

• Remaining paper detection is made by the remaining paper VR/1 (VR2) and /2 (VR4) that are interlocked
with the up/down operation of the paper lift plate via the pulley and the gear.
• The following 8 levels are detected according to the resistance value, and the detected information is sent
to the main body.

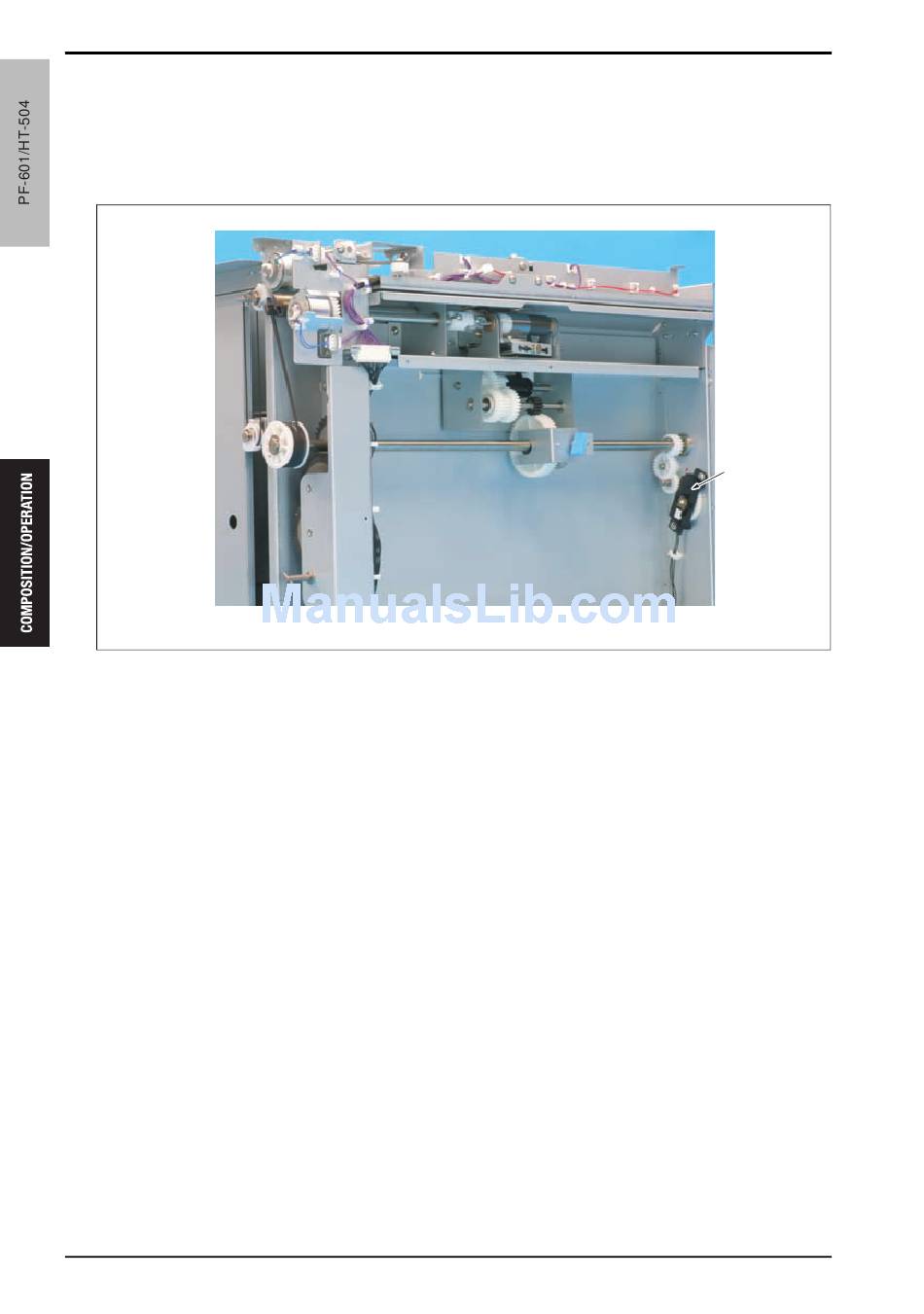

[1] Remaining paper VR/1 (VR2) and VR/2 (VR4)
4.3.8

Tray lock control

• Each of the tray is locked by the tray locked lever.
• When the tray lock release sensors /1 (PS4) and /2 (PS12) of the either trays /4 or /5 are turned off, the tray
lock solenoids /1 (SD4) and /2 (SD8) of the corresponding tray are turned on. This causes the tray lock lever
to go up and the tray is unlocked.
• In order to avoid pulling multiple trays out at a time, the SD4 and SD8 solenoids other than those which has
already been turned on do not become on even when an off-status of another lock release sensor is
detected while PS4 or PS12 sensor is off.
• When a jammed paper is lying over the tray and the exit conveyance section, the tray remains locked until
the jammed paper is removed. This prevents the paper from being torn off.
18
Theory of Operation Ver1.0 Sep.2006
[1]
a03xt2c013ca
