Develop ineo+ 6500 Service Manual page 464

Theory of Operation Ver1.0 Sep.2006

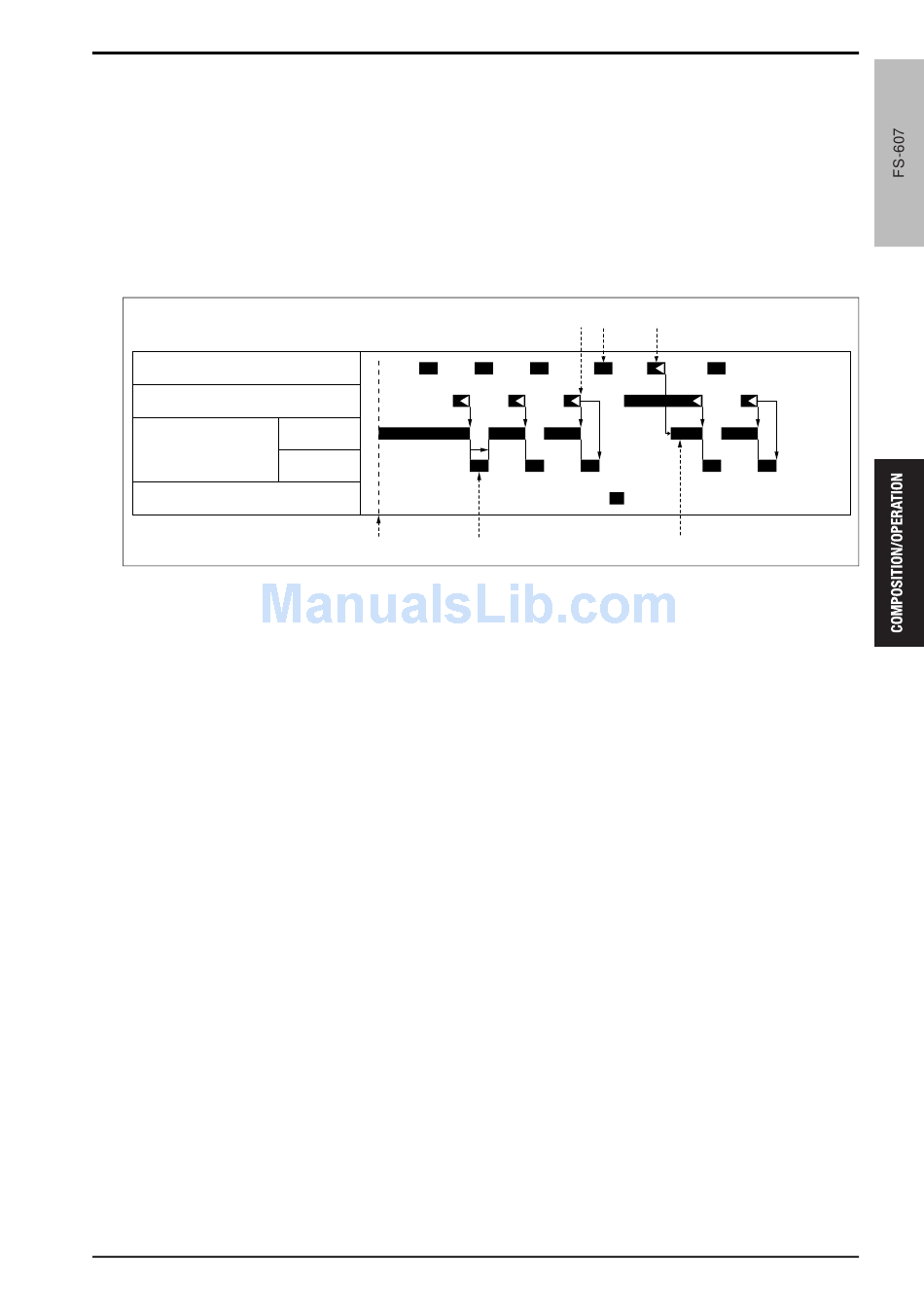

(2) Stapling mode (the paper size is A4, B5, or 8
The 1st copy is transferred by the same operation for the paper whose size is other than A4, B5, or 8
When transferring the 1st and 2nd paper of the 2nd and following copies, the stacker entrance motor (M13)
stops after a specified period of time since the stacker entrance sensor (PS5) detects the trailing edge of the last
paper of the 1st copy [3]. To prevent the paper of the 2nd copy is transferred to the stacker before the stapling
operation for the 1st copy is completed, the 1st paper for the 2nd copy stands by in the bypass path.
The stacker entrance motor (M13) turns ON and rotates in high speed after a specified period of time since the
FNS entrance sensor (PS4) detects the trailing edge of the 2nd paper [5]. Then the 1st and 2nd paper are over-
lapped and transferred to the stacker [6].
FNS entrance sensor (PS4)
Stacker entrance sensor (PS5)
Stacker entrance
motor (M13)
Stapler motor /Fr (M14)
[1] FNS start signal turned ON
[2] Paper transferred to the stacker in low speed
[3] Trailing edge of the last paper of the 1st
copy detected
When transferring the 3rd and following paper of the 2nd and following copies, the paper is transferred to the
stacker by the same operation for the paper of the 1st copy.
High speed
Low speed
[1]
/ x 11, with the bypassing operation)
1
2
[3] [4]
[2]
[4] 1st paper of the 2nd copy
[5] 2nd paper of the 2nd copy
[6] 1st and 2nd paper of the 2nd copy trans-
ferred simultaneously
6. STACKER SECTION
/ x 11.
1
2
[5]
[6]
15jmt2c010na
39
