3. PAPER PATH

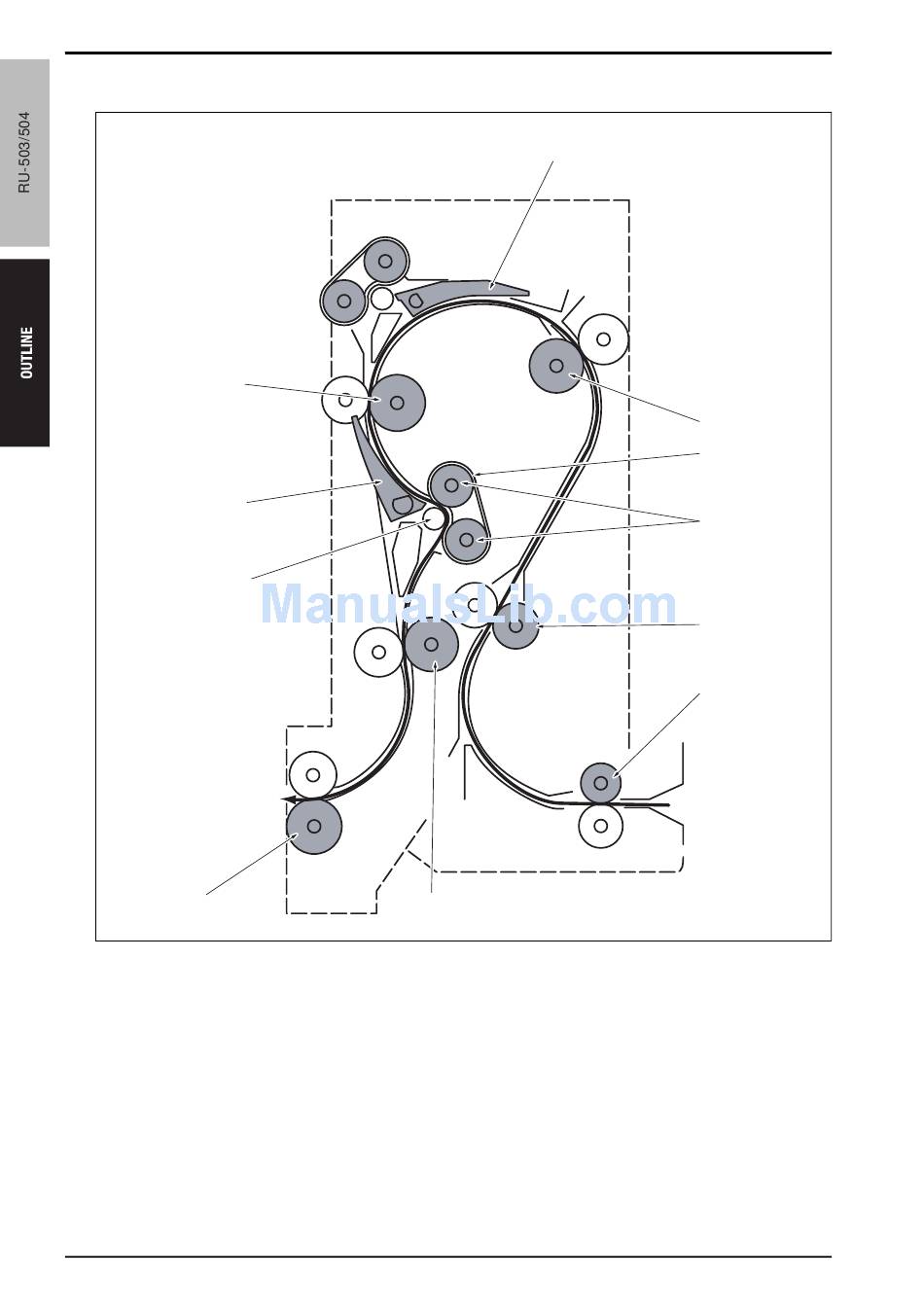

C. Decurler conveyance mode (straightening the downward curling)
[11]
[10]
[9]
[8]
[1] Decurler gate /1
[2] Intermediate roller /1
[3] Decurler belt /2
[4] Decurler roller /3
[5] Entrance roller /2
[6] Entrance roller /1
6
Theory of Operation Ver1.0 Sep.2006
[1]
[7]
[7] Intermediate roller /3
[8] Paper exit roller
[9] Decurler roller /2
[10] Decurler gate /2
[11] Intermediate roller /2
[2]
[3]
[4]
[5]
[6]
