Paper Feed Drive - Develop ineo+ 6500 Service Manual

9. PI SECTION
9.2.2

Paper feed drive

[9]
[8]
[7]
[6]
[5]

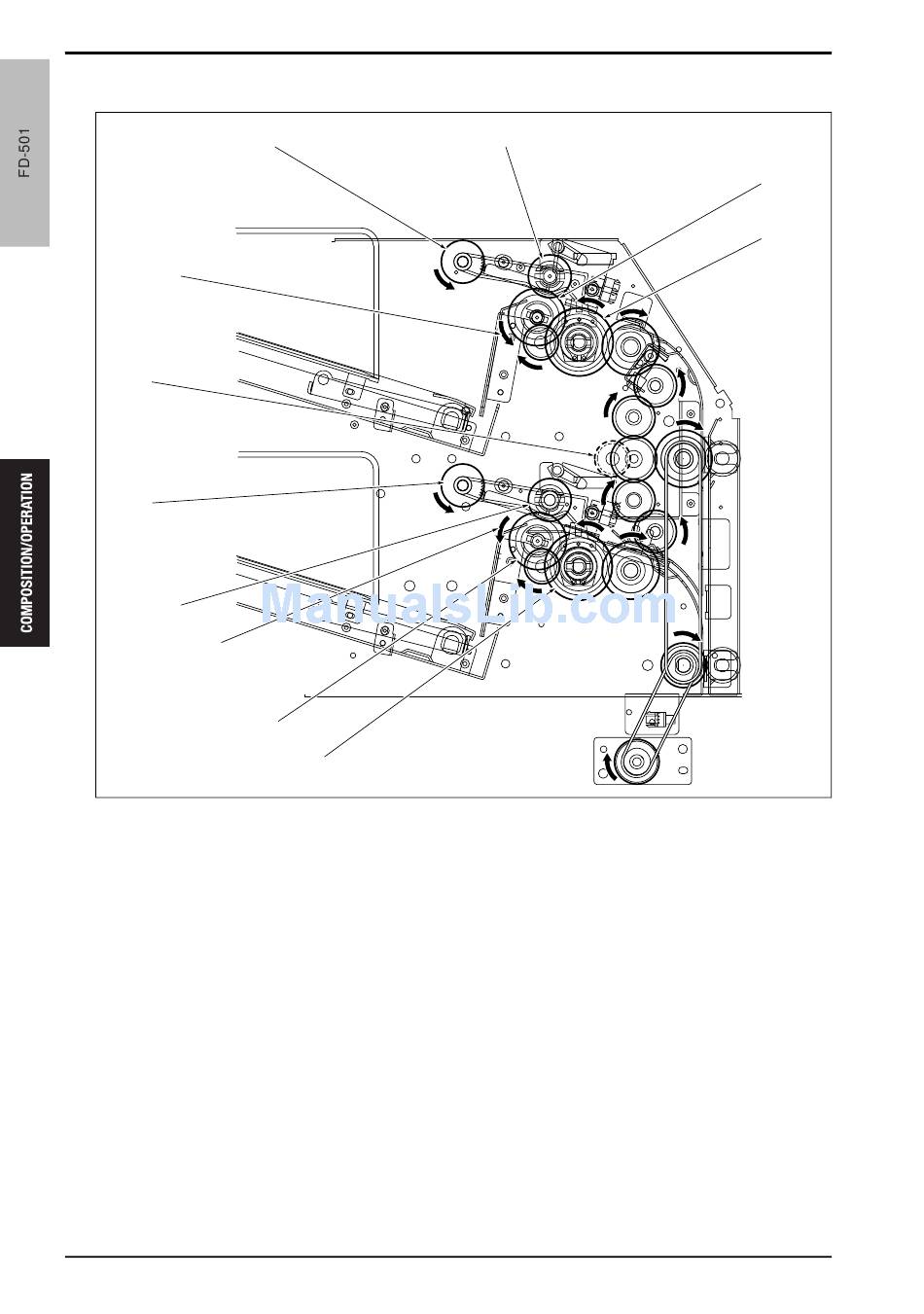

[1] Separation roller /Up
[2] PI registration clutch /Up (CL1)
[3] PI registration clutch /Lw (CL2)
[4] Separation roller /Lw
[5] Rotational direction of separation roller /Lw
[6] Paper feed roller /Lw
50
[10]
[4]
[3]
Theory of Operation Ver2.0 Sep.2006
[11]
[7] Pick-up roller /Lw
[8] PI conveyance motor (M7)
[9] Rotational direction of separation roller /Up
[10] Pick-up roller /Up
[11] Paper feed roller /Up
[1]
[2]
fd501to2029c
