6. FOLDING SECTION
6.2.5

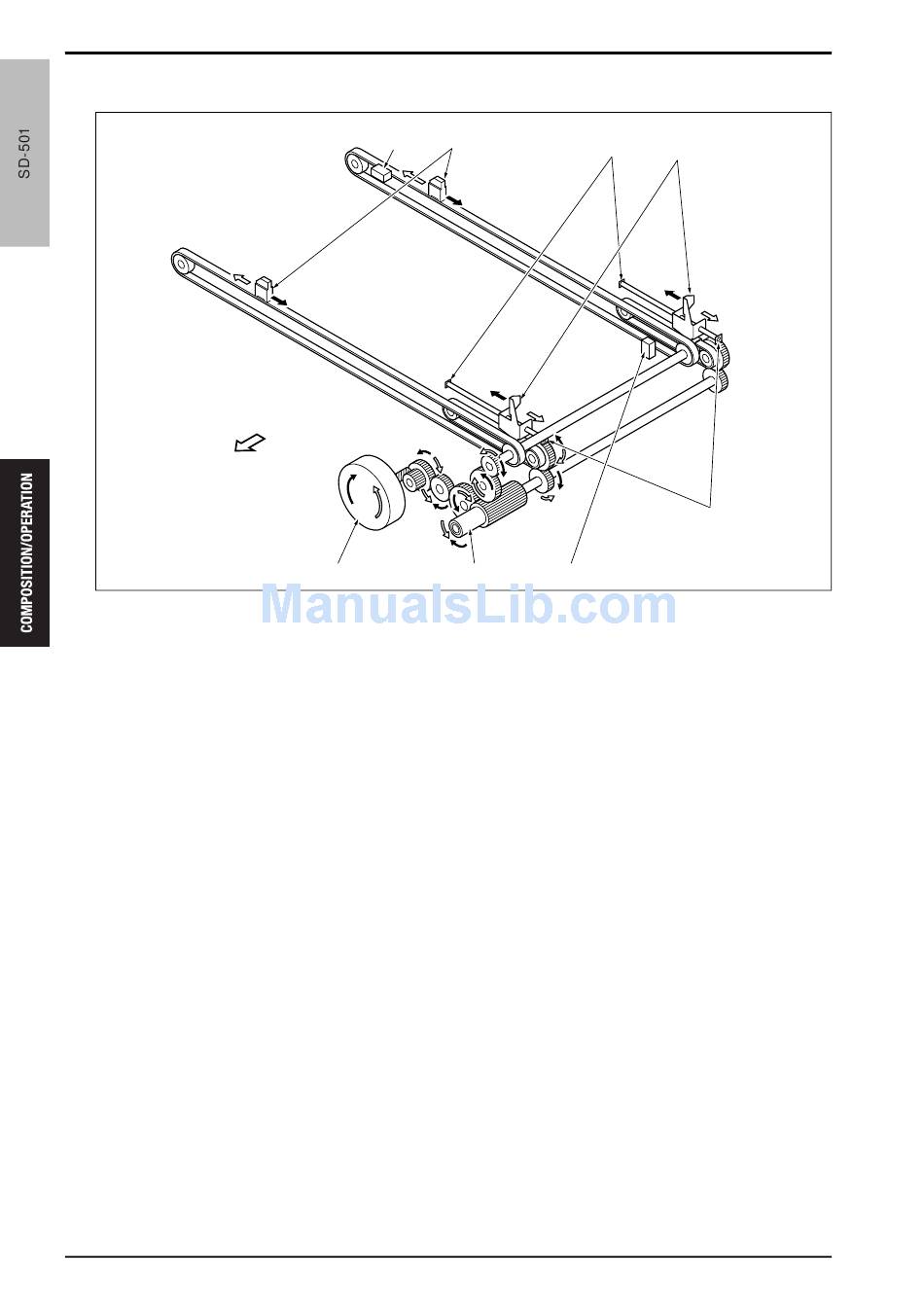

Folding sub scan alignment/center folding exit drive

[6]
[1] Folding alignment stoppers /Rt
[2] Home position stoppers /Rt
[3] Folding exit home sensor (PS24)
[4] Torque limiter
[5] Folding sub scan alignment motor (M8)
34
[7] [8]
[5] [4]
[6]
[7]
[8]
[9]
Theory of Operation Ver2.0 Sep.2006
[9]
[1]
[2]
[3]
Front side direction
Folding sub scan alignment home sensor (PS56)
Folding exit claws
Alignment stoppers /Lt
15ant2c020na
