Theory of Operation Ver1.0 Sep.2006
(2) Control
1.
When the paper exit solenoid (SD301) is turned on [2] after the scanning [1] is completed, the paper exit gate
is set in the straight paper exit path.
2.
The reverse/paper exit motor (M303) is turned on at the same time as the conveyance motor (M302), and
the original conveyed by the conveyance belt is conveyed to the paper exit roller of the reverse/paper exit
section.
3.
After the specified time has elapsed from when the reverse sensor (PS305) is turned off, M303 slows down
[4] to make the original aligned when it is ejected and the original is ejected to the paper exit stacker at low
speed.
4.
After the specified time has elapsed from when the paper exit sensor (PS307) is turned off, M303 is turned
off [5].

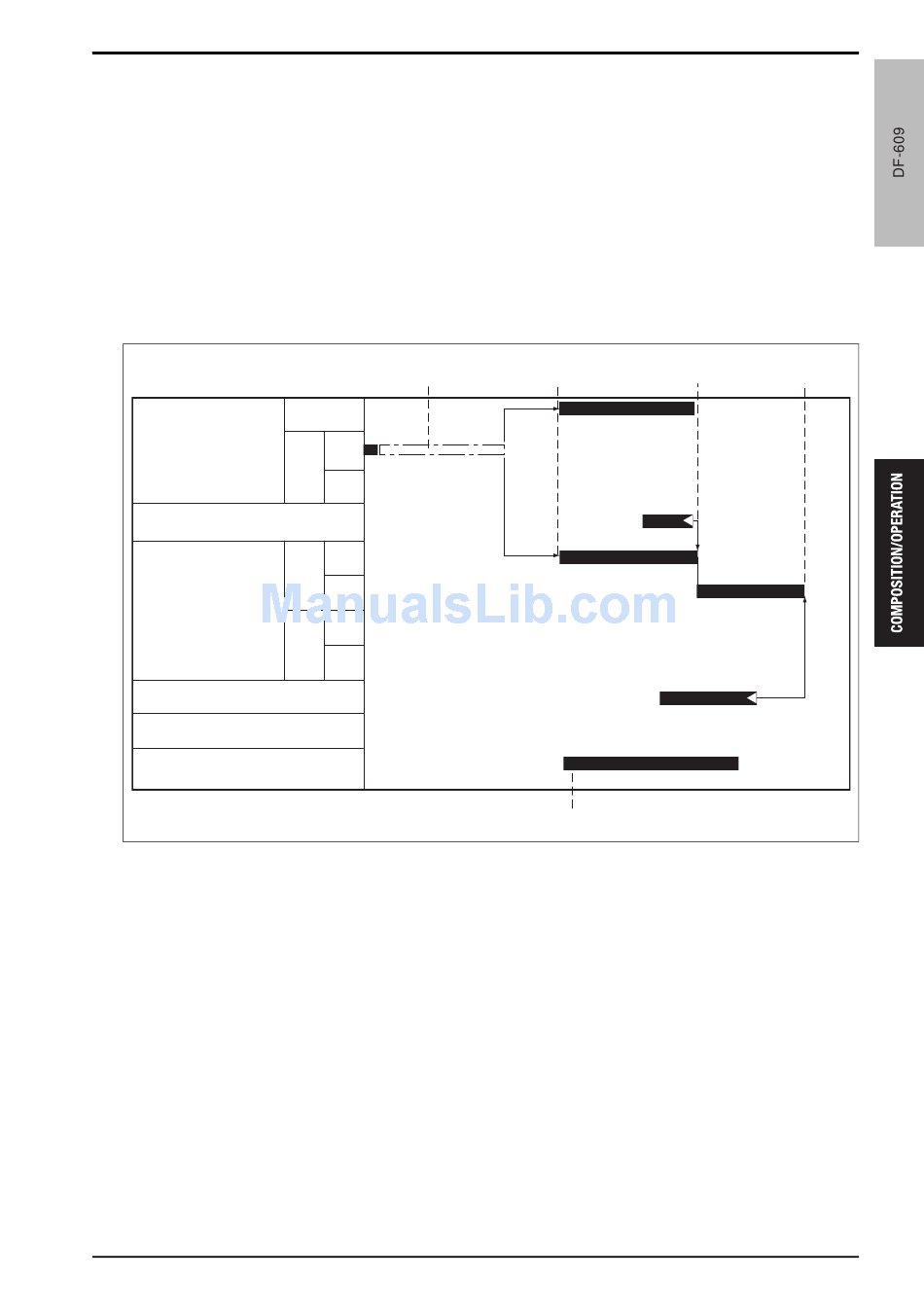

Conveyance motor
(M302)
Reverse sensor (PS305)
Reverse/paper exit
motor (M303)
Paper exit sensor (PS306)
Reverse solenoid (SD302)
Paper exit solenoid (SD301)
[1] Scanning
[2] Sets the paper exit gate in the straight paper
exit path
[3] M302 and M303 starts operating for paper
exit
[1]
Forward
Low
Reve
rse
High
High
For-
ward
Low
Low
Reve
rse
High
6. REVERSE/PAPER EXIT SECTION
[3] [4]
[2]
[4] Switching at low speed (M303)
[5] Paper exiting completed
[5]
a052t2c017ca
