7. SADDLE STITCHING SECTION

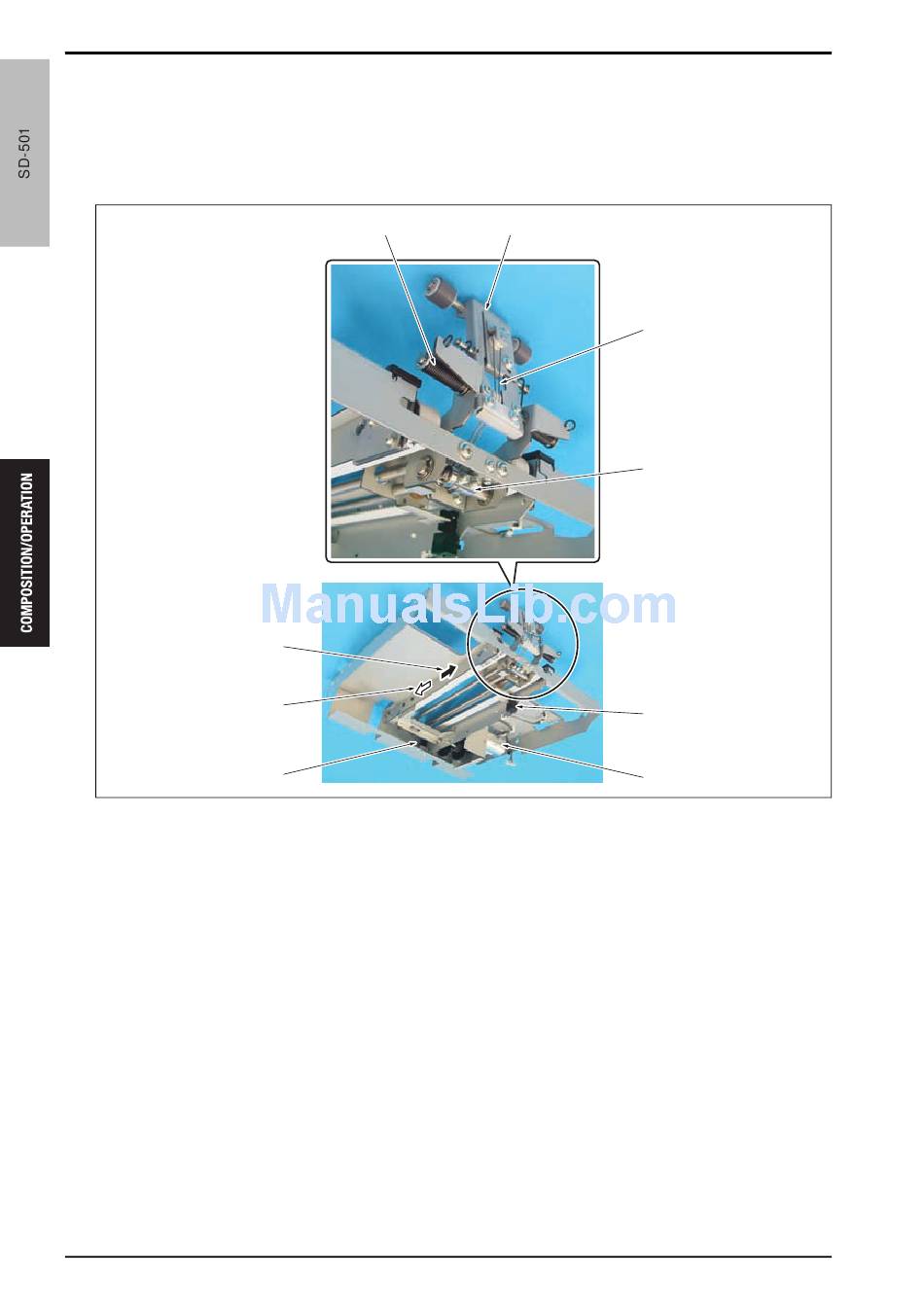

The bundle clip motor (M11) [5] drives the bundle clip [1] up [8] and down [7] via the gear and belt.
The spring [9] provides the bundle clip the force to catch the paper, and the wire [2] and the winding shaft [3]
open the bundle clip to release the paper.
The upper limit of the bundle clip is detected by the bundle clip upper limit sensor (PS33) [4] and the lower limit
is detected by the bundle clip lower limit sensor (PS30) [6].
[1] Bundle clip
[2] Wire
[3] Winding shaft
[4] Bundle clip upper limit sensor (PS33)
[5] Bundle clip motor (M11)
80
[9]
[8]
[7]
[6]
Theory of Operation Ver2.0 Sep.2006
[1]
[2]
[3]
[4]
[5]
[6] Bundle clip lower limit sensor (PS30)
[7] Down
[8] Up
[9] Spring
15ant2c048na
