Theory of Operation Ver2.0 Sep.2006
7.2

Drive

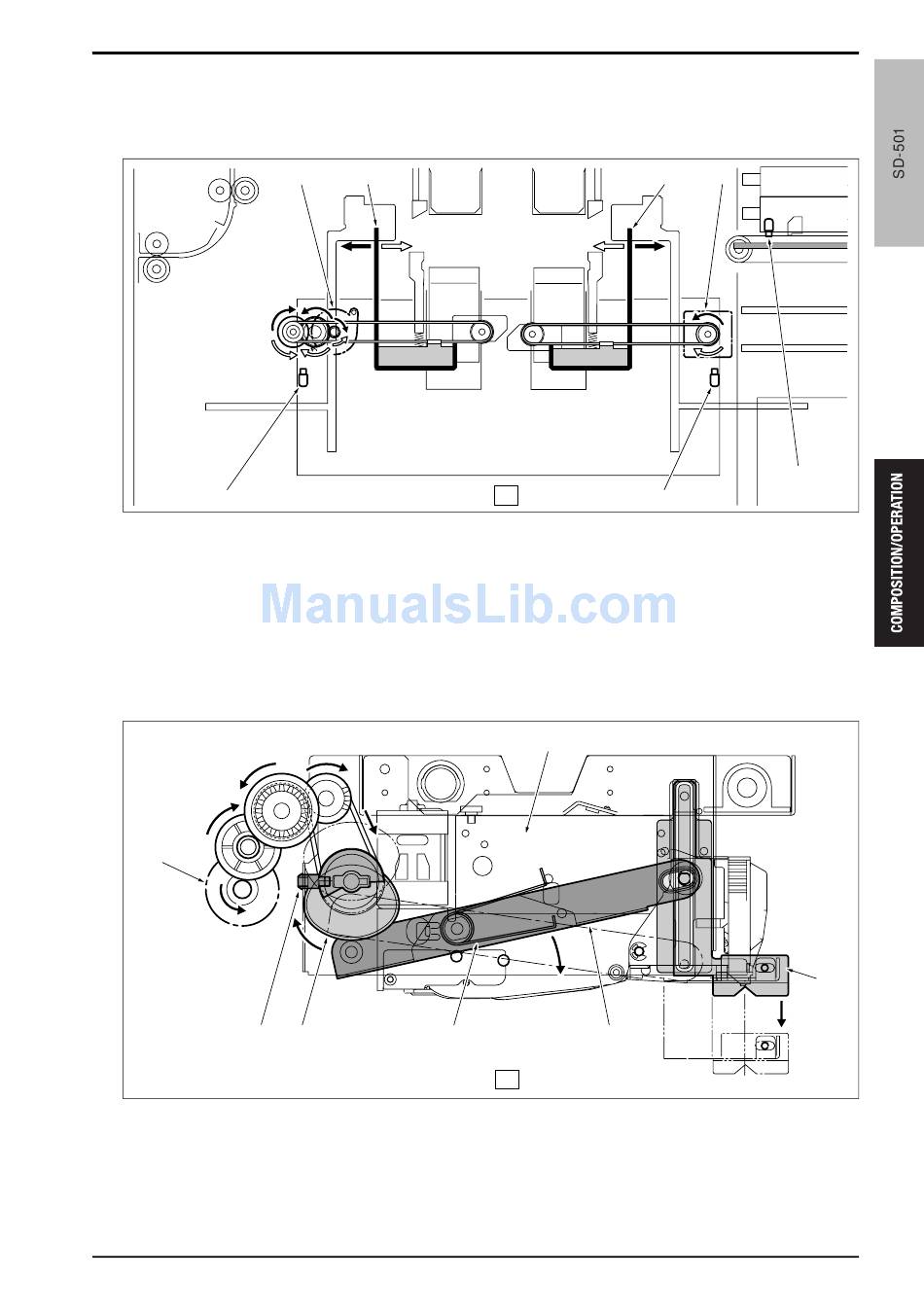

7.2.1

Saddle stitching alignment drive

[5]
[1] Saddle stitching alignment motor /Rt (M9)
[2] Folding sensor /2 (PS44)
[3] Saddle stitching alignment home sensor /Rt (PS28)
[4] Front side view
7.2.2

Saddle stitching hold drive

[7]
[6]
[1] Saddle stitching hold /Up
[2] Arm
[3] Left side view
[4] Spring
[6] [7]
[5] [4]
7. SADDLE STITCHING SECTION
[8]
[4]
[3]
[5] Saddle stitching alignment home sensor /Lt (PS29)
[6] Saddle stitching alignment motor /Lt (M16)
[7] Saddle stitching alignment plate /Lt
[8] Saddle stitching alignment plate /Rt
[8]
[2]
[3]
[5] Eccentric cam
[6] Saddle stitching press home sensor (PS27)
[7] Saddle stitching hold motor (M21)
[8] Stapler
[1]
[2]
15ant2c029na
[1]
15ant2c030na
51
