9. TRIMMER SECTION
B. Control

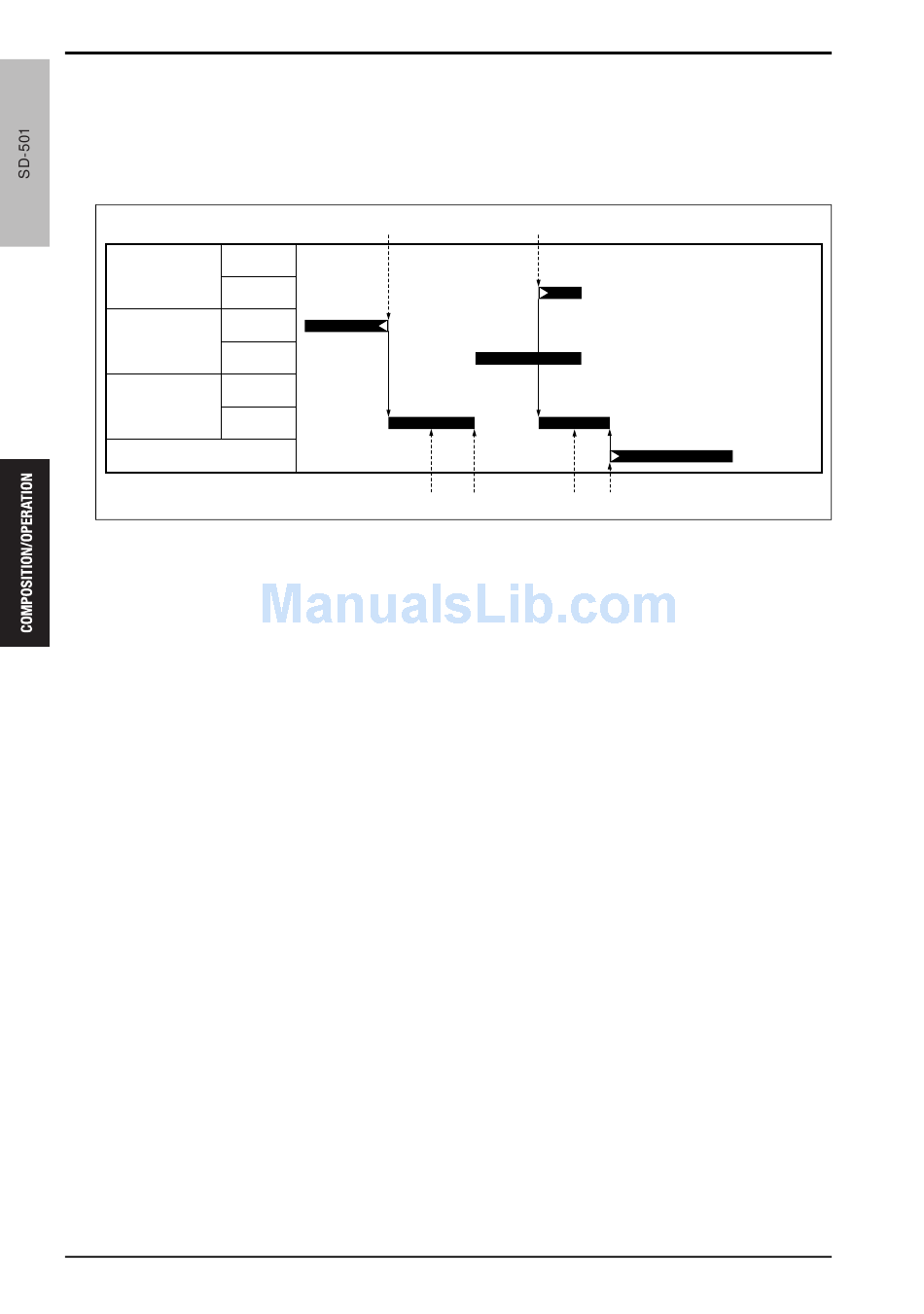

The trimmer blade motor (M31) starts the trimming [2] when the trimmer press motor (M32) completes the press
and stops [1]. M31 stops when the overcurrent is detected [3].
M31 starts the returning operation to the home position [5] when the bundle press motor (M23) starts releasing
the press [4]. M31 stops when the trimmer blade home sensor (PS50) turns ON [6].
Forward
Bundle press
motor (M23)
Reverse
Forward
Trimmer press
motor (M32)
Reverse
Forward
Trimmer blade
motor (M31)
Reverse
Trimmer blade home sensor (PS50)
[1] Trimmer press completed
[2] Trimmer operation
[3] Stopped by the overcurrent
116
[1] [4]
[2] [3]
[4] Releasing the press started
[5] Returning operation to the home position
[6] Home position detected
Theory of Operation Ver2.0 Sep.2006
[5] [6]
