Pick-Up Mechanism - Develop ineo+ 6500 Service Manual

Theory of Operation Ver1.0 Sep.2006
4.3.3

Pick-up mechanism

• Paper is picked up when the pick-up solenoids/1 (SD1) and /2 (SD5) are turned off.
• When the solenoids SD1and SD5 are turned off, the pick-up roller goes down to press paper by its own
weight.
• When the paper feed clutches /1 (MC1) and /2 (MC4) turn on, the pick-up roller starts to rotate and feed
paper to the paper feed roller.

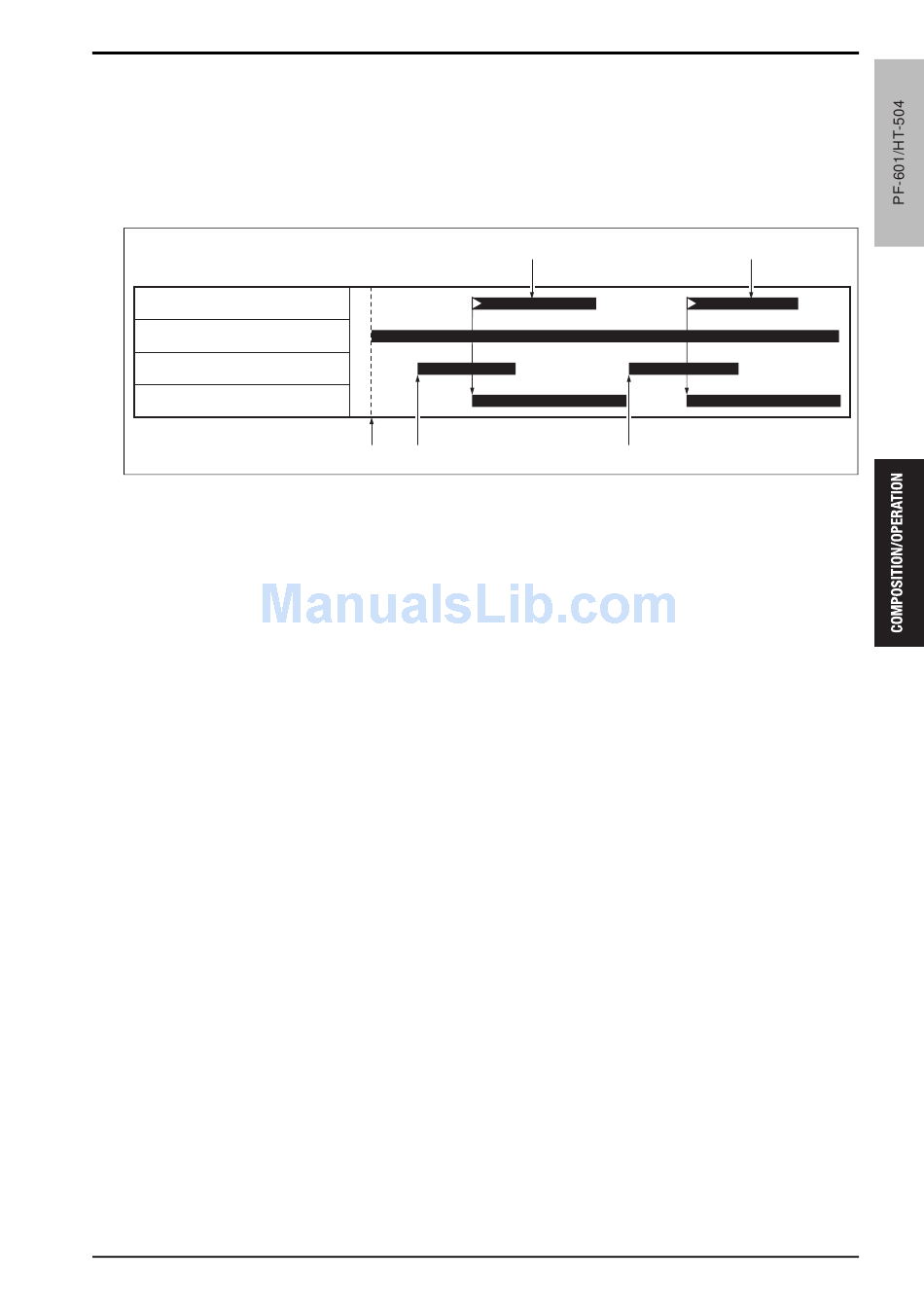

Paper feed sensor/1 (PS2) and /2 (PS10)
Paper feed motor (M1)
Paper feed clutch/1 (MC1) and /2 (MC4)
Pick-up solenoid/1 (SD1) and /2 (SD5)
[1] START button ON
[2] Pick-up of the 1st sheet of paper
[3] Conveyance of the 1st sheet of paper
[3]
[1] [2]
[4]
[5]
4. PAPER FEED SECTION
[4]
Pick-up of the 2nd sheet of paper
Conveyance of the 2nd sheet of paper
[5]
a03xt2c008ca
13
