18. REGISTRATION SECTION

18.3 Operation

18.3.1

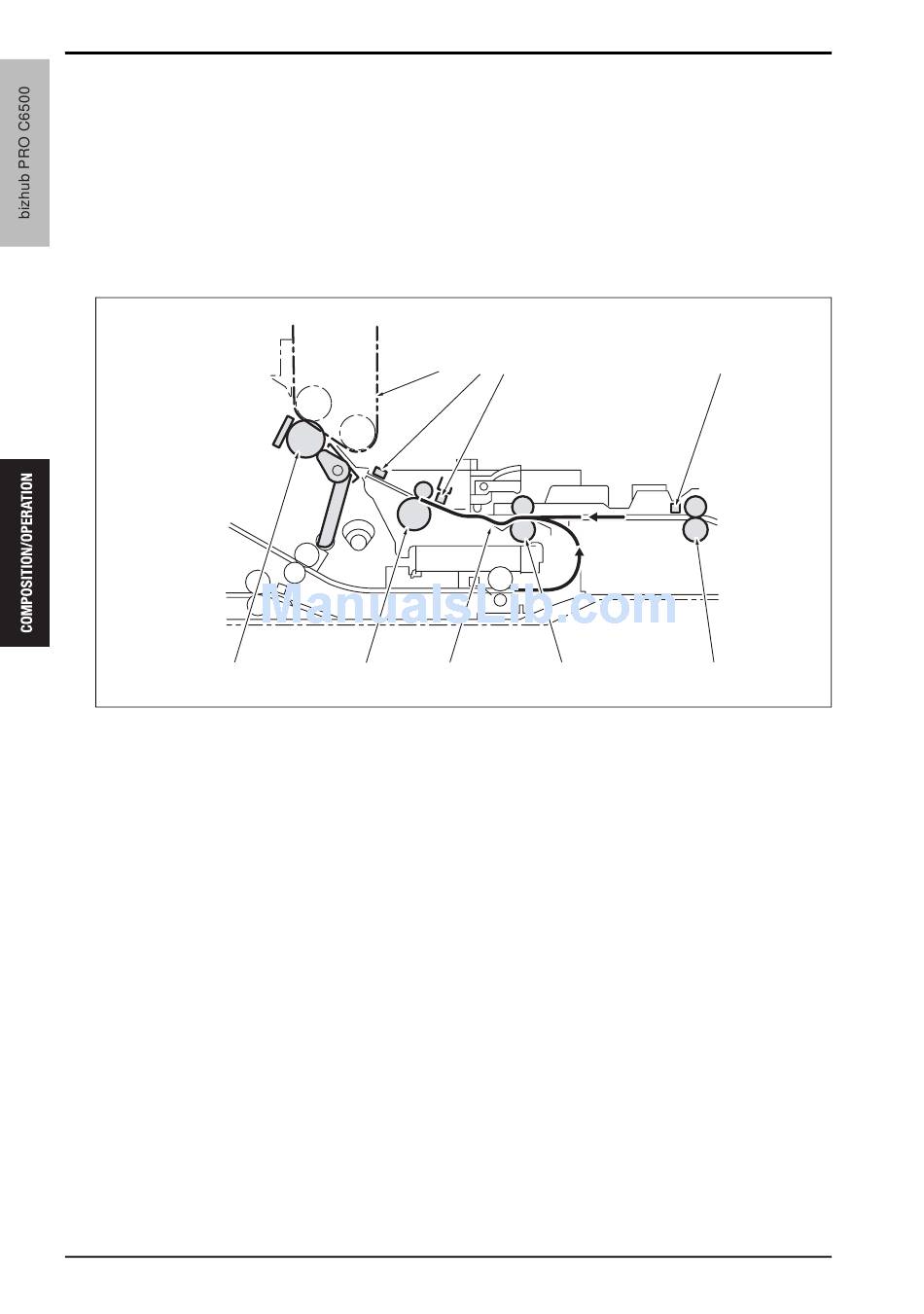

Loop control

• All papers are passed through the loop roller and conveyed to the registration roller.
• Loop motor (M31) that drives the loop roller stops after specified time passed from when the registration
sensor (PS22) turns ON upon detecting the leading edge of paper.
• Because the registration motor (M30) is stopping, the leading edge of paper is pressed against the registra-
tion roller that is not moving. The paper forms a small loop before the M31 stops.
• Making paper form a loop enables to correct skew of the paper.
[5]
[1] Intermediate conveyance roller /2
[2] Loop roller
[3] Registration loop
[4] Registration roller
[5] Second transfer roller /Lw
84
[6] [7] [8]
[4] [3]
[6]
[7]
[8]
[9]
Theory of Operation Ver1.0 Sep.2006
[2] [1]
Transfer belt unit
Leading edge sensor (PS63)
Registration sensor (PS22)
Intermediate conveyance sensor /2 (PS28)
[9]
