Theory of Operation Ver2.0 Sep.2006

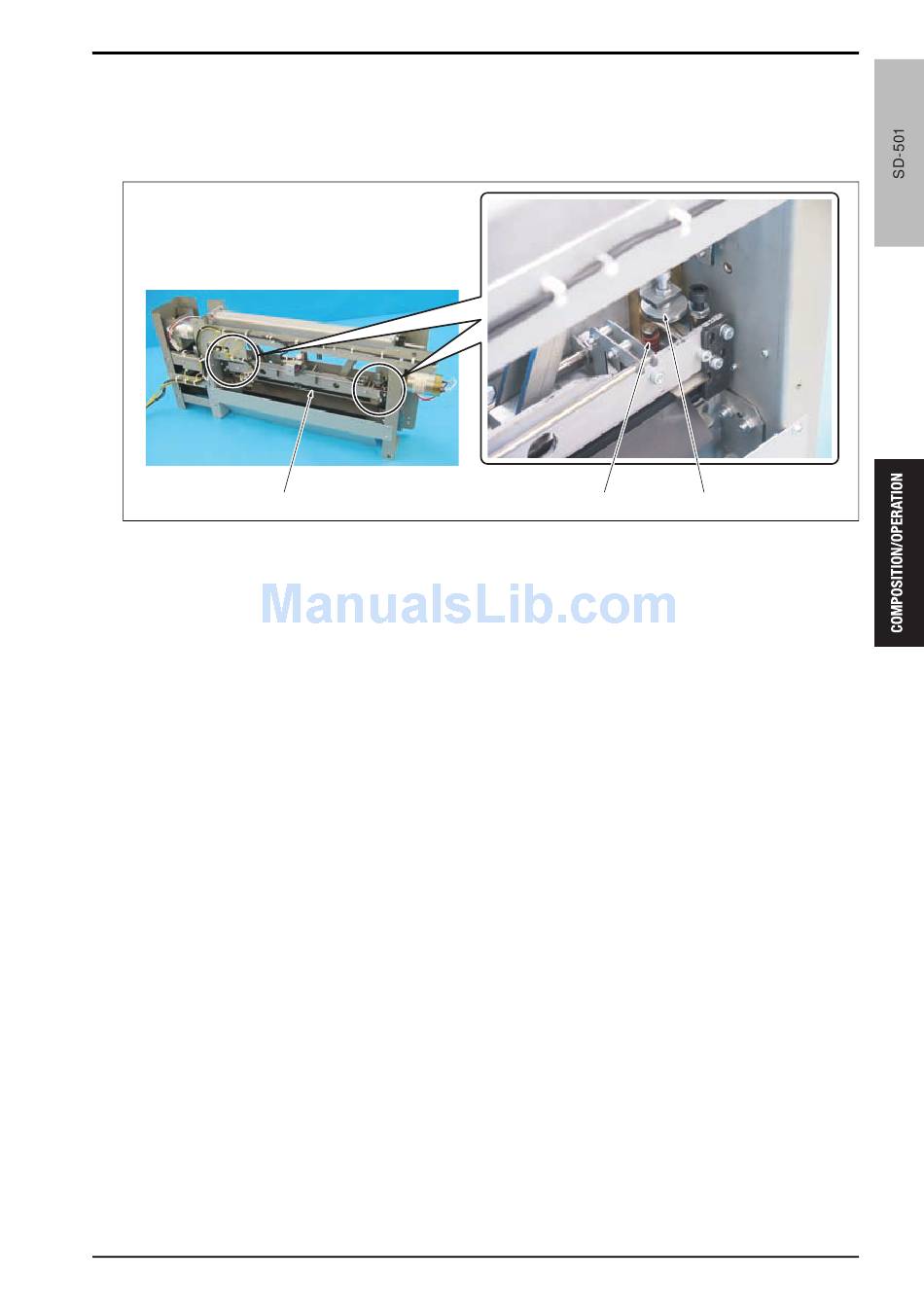

When changing the trimming position of the trimmer board or replacing the trimmer board via the I/O check
mode, M32 rotates in the reverse direction to move up the press board higher than the position of the trimmer
press upper limit sensor (PS52) and release the trimmer board [3] by pushing the trimmer board retaining spring
[2] by the plate [1]. At the time, the opening is approximately 23 mm. The position is detected via overcurrent.
[1] Plate
[2] Trimmer board retaining spring
[3] [2]
[3] Trimmer board
9. TRIMMER SECTION
[1]
15ant2c071na
113
