B. Trimmer scraps removal control

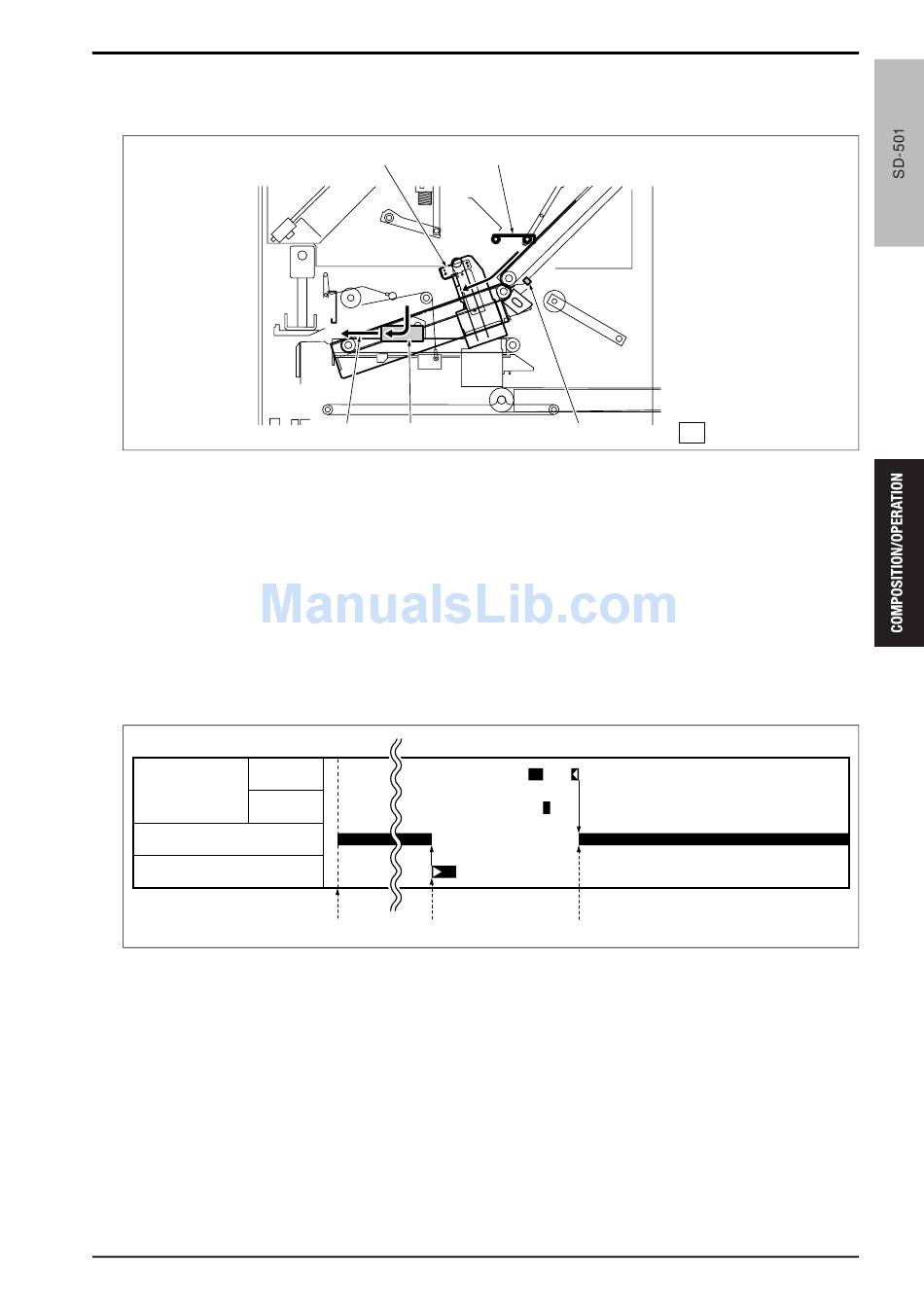

The scraps removal fan (FM1) [3] blows air [4] to make sure to put the trimmer scraps to the scraps box.
[1] Left side view
[2] Bundle clip lower limit sensor (PS30)
[3] Trimmer scraps removal fan (FM1)
The trimmer scraps removal fan (FM1) operates only in the trimmer mode.
When the main body start signal [1] turns ON, FM1 is rotated and the bundle clip releases [2] the paper, FM1
stops for a time to prevent the paper from having the uneven edge. When the bundle press motor (M23) com-
pletes the paper press [3], FM1 is rotated again to send air so that sheet trimming scraps get in the scraps box
without fail.
Forward
Bundle press
motor (M23)
Reverse
Trimmer scraps removal fan (FM1)
Bundle clip lower limit sensor (PS30)
[1] Main body start signal
[2] Bundle clip released the paper
[5] [6]
[4] [3]
[1] [2]
8. BUNDLE PROCESSING SECTION
[2] [1]
[4] Air
[5] Bundle press
[6] Bundle clip
[3]
[3] Paper press operation completed
15ant2c115na
15ant2c116na
