Theory of Operation Ver1.0 Sep.2006
(4) Tri-folding mode
Transmitting the FNS signal from the main body [1], the stacker entrance motor (M13) turns ON and rotates in
high speed.
M13 rotates in low speed [2] to transfer the paper in low speed when the stacker entrance sensor (PS5) detects
the trailing edge of the paper. M13 rotates in high speed and stands by for the subsequent paper after a speci-
fied period of time since it rotates in low speed.
M13 stops after completing the alignment operation of the last paper of the copy [3] and the movement of the
saddle stitching stopper to the tri-folding position [4].
M13 turns ON and rotates in high speed to stand by for the subsequent paper when the folding paper exit sen-
sor (PS25) detects the trailing edge of the paper bundle [5].

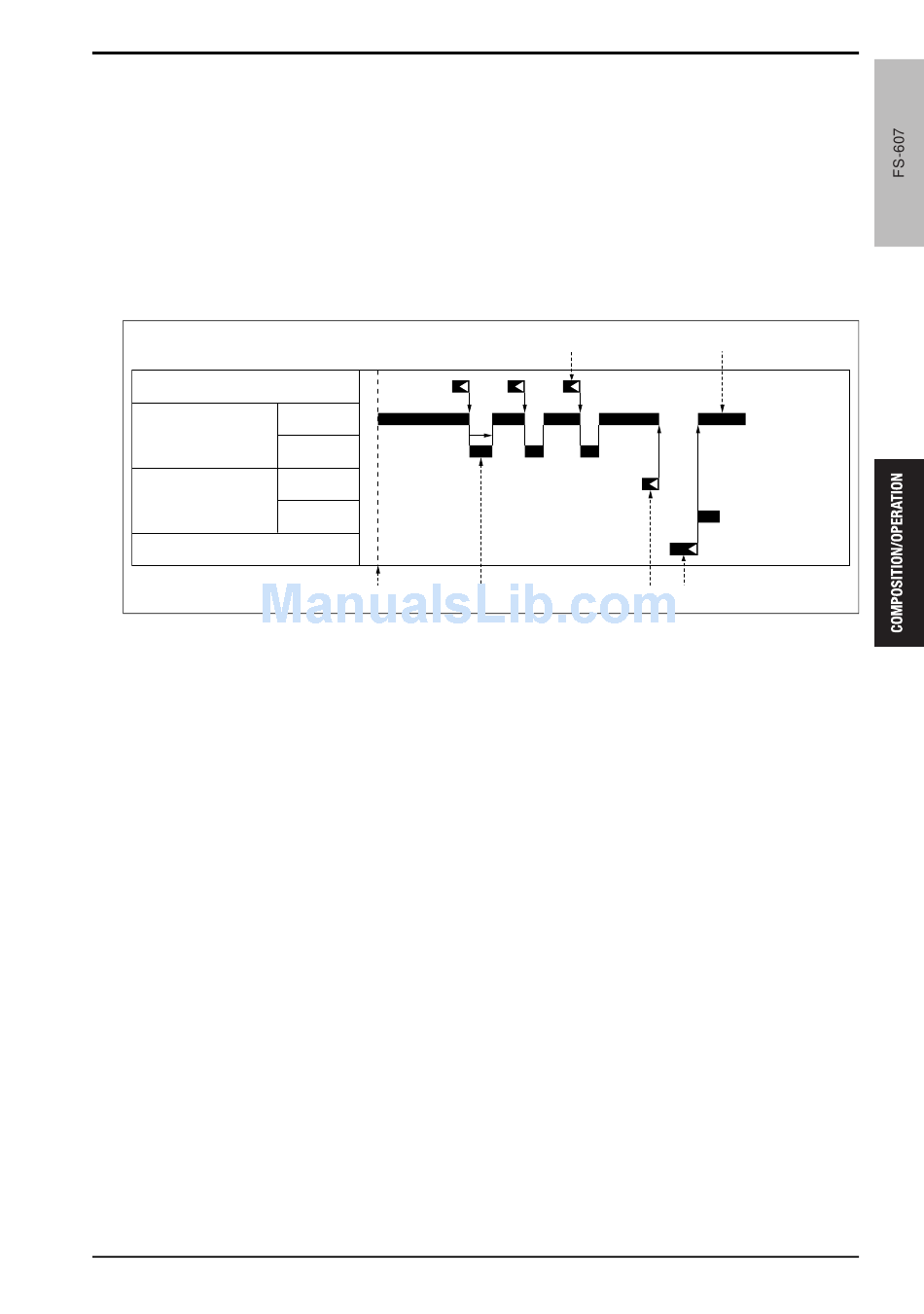

Stacker entrance sensor (PS5)
Stacker entrance
motor (M13)
Saddle stitching stop-
per motor (M18)
Folding paper exit sensor (PS25)
[1] FNS start signal turned ON
[2] Paper transferred to the stacker in low speed
[3] Last paper of the copy
High speed
Low speed
DOWN
UP
[1]
[3]
[2] [4] [5]
[4] Saddle stitching stopper moving to the tri-fold-
ing position
[5] Tri-folding paper exit operation
[6] Standing by for the paper of the subsequent
copy
6. STACKER SECTION
[6]
15jmt2c012na
