Drive - Develop ineo+ 6500 Service Manual

Theory of Operation Ver1.0 Sep.2006

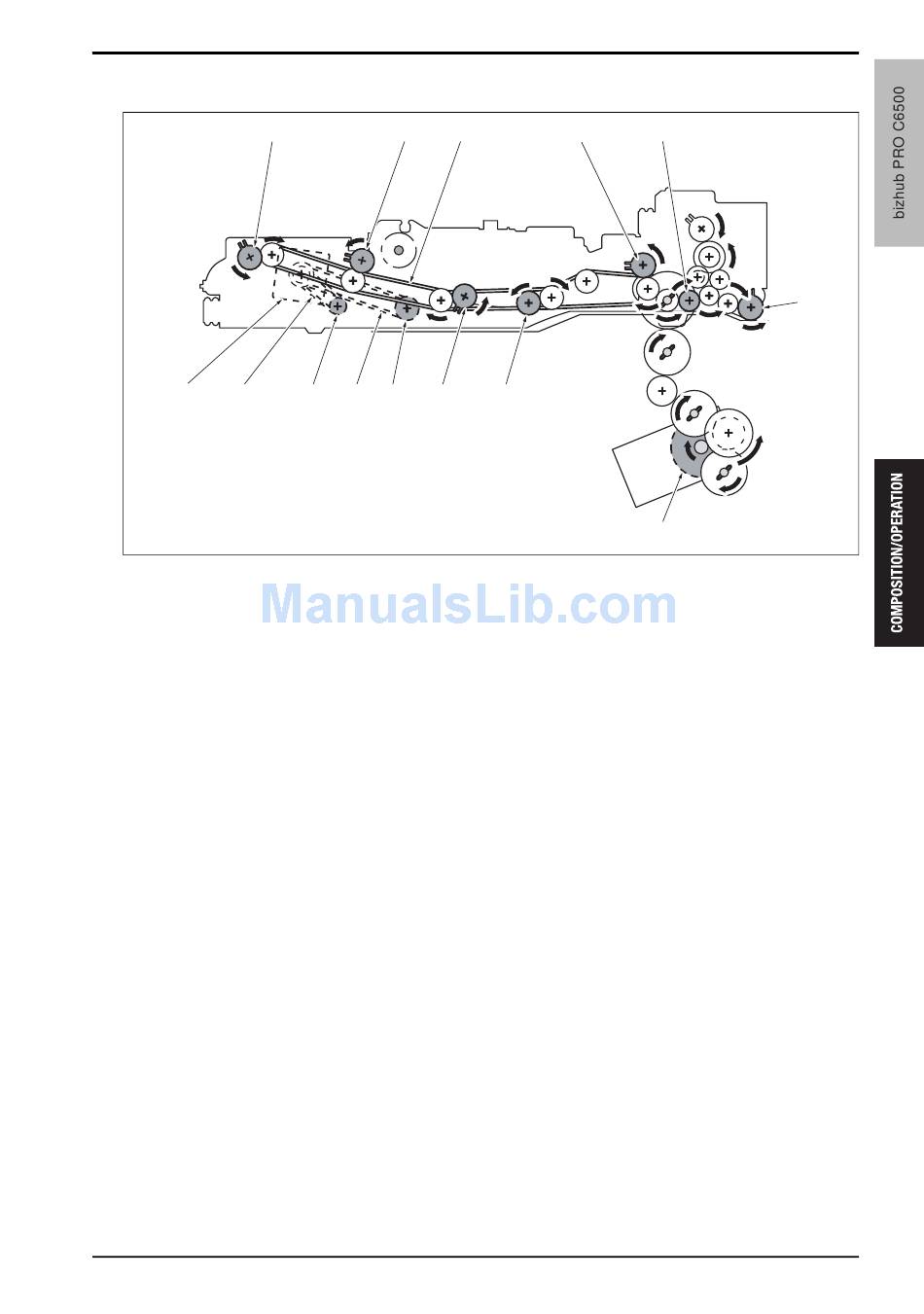

19.2 Drive

[14] [15]
[11]
[13] [12]
[1] Intermediate conveyance roller /2
[2] Intermediate conveyance clutch /2 (MC4)
[3] Paper feed motor (M41)
[4] ADU pre-registration roller
[5] ADU pre-registration clutch (MC18)
[6] ADU conveyance roller /3
[7] ADU conveyance clutch /3 (MC3)
[8] ADU loop roller
[9] Belt
[10] ADU reverse roller
[11] Belt
[16][17] [18]
[10] [9] [8] [7] [6]
[19][20]
[21]
[5] [4]
[3]
[12] ADU loop motor (M57)
[13] ADU reverse motor (M32)
[14] ADU conveyance roller /1
[15] ADU conveyance clutch /1 (MC1)
[16] ADU conveyance roller /2
[17] ADU conveyance clutch /2 (MC2)
[18] Belt
[19] Intermediate conveyance roller /3
[20] Intermediate conveyance clutch /3 (MC5)
[21] Drive coupling
19. ADU SECTION
[1][2]
a03ut5c062ca
87
