Paper Exit Decurler Roller Pressure Control - Develop ineo+ 6500 Service Manual

Theory of Operation Ver1.0 Sep.2006
20.3.3

Paper exit decurler roller pressure control

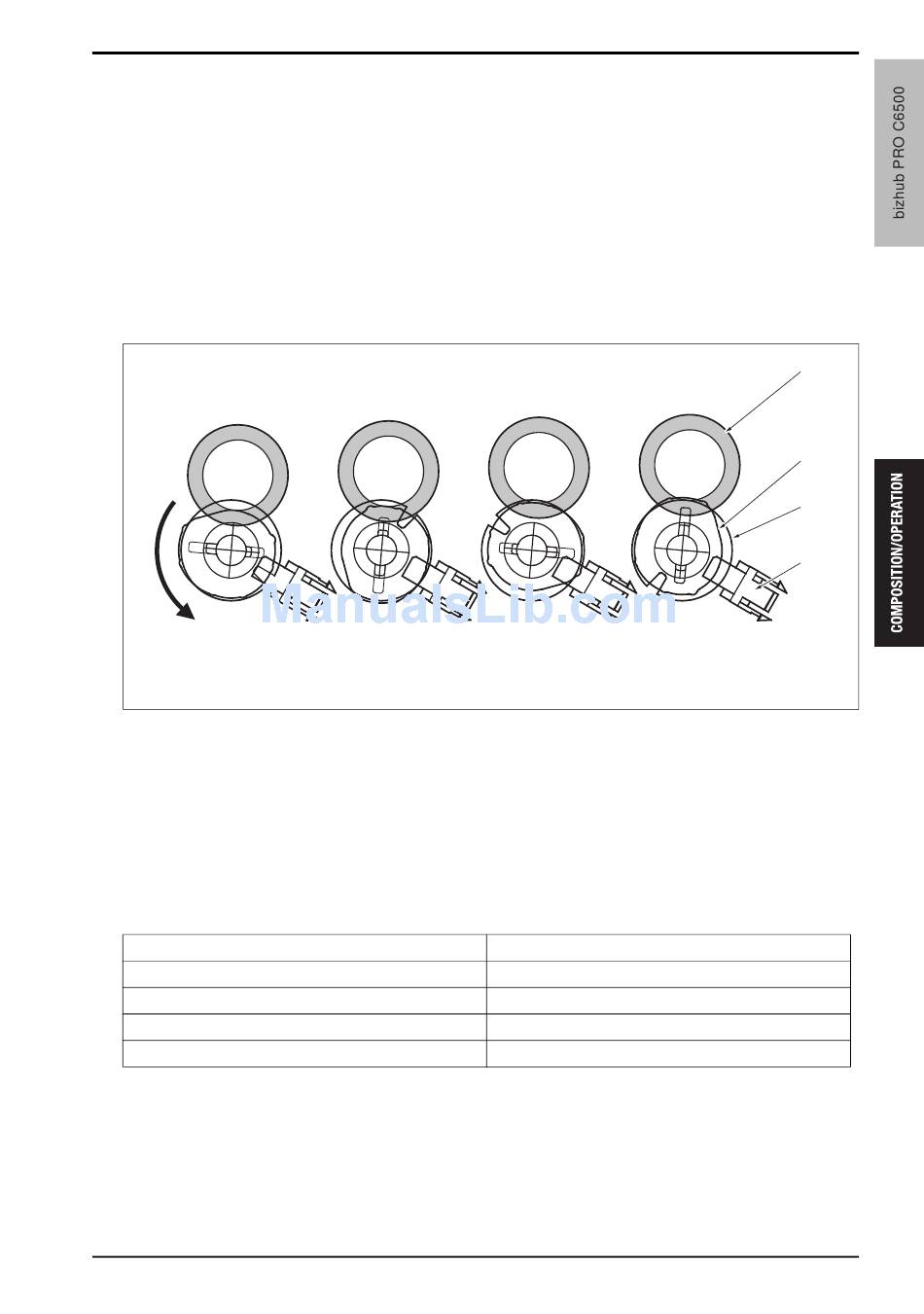

A. Paper exit decurler roller pressure mechanism
• The paper exit decurler roller [1] that faces to the paper exit roller is pressed by the rotation of the cam [2].
• The cam is driven by the paper exit motor (M54).
• Forward rotation of the M54 causes paper exit operation, and its reverse rotation moves the cam to apply
pressure to the paper exit decurler roller.
• The cam and the encoder [3] are located on the same shaft. Paper exit pressure sensor (PS10) [4] detects
the slits on the encoder in order to determine the home position of the decurler roller.
• The pressure applied to the paper exit decurler roller is changed by the cam position in four levels; release
[8], low pressure [7], middle pressure [6], and high pressure [5]. The pressure level is controlled according to
the time period of the M54 rotation from when the PS10 turns off.
[8]
[1] Paper exit decurler roller
[2] Cam
[3] Encoder
[4] PS10
B. Print mode and paper exit decurler roller pressure level
• The pressure level applied to the paper exit decurler roller changes according to print mode.
Standby, jam processing
Straight paper exit mode
Double-sided mode
Reverse paper exit mode
[7]
Print mode
20. REVERSE/PAPER EXIT SECTION
[6]
[5] High pressure
[6] Middle pressure
[7] Low pressure
[8] Release
Pressure amount
Release
Low pressure
Middle pressure
High pressure
[1]
[2]
[3]
[4]
[5]
a03ut2c076ca
99
