Drive; Transfer Belt Conveyance/Pressure Drive - Develop ineo+ 6500 Service Manual

Theory of Operation Ver1.0 Sep.2006

11.2 Drive

11.2.1

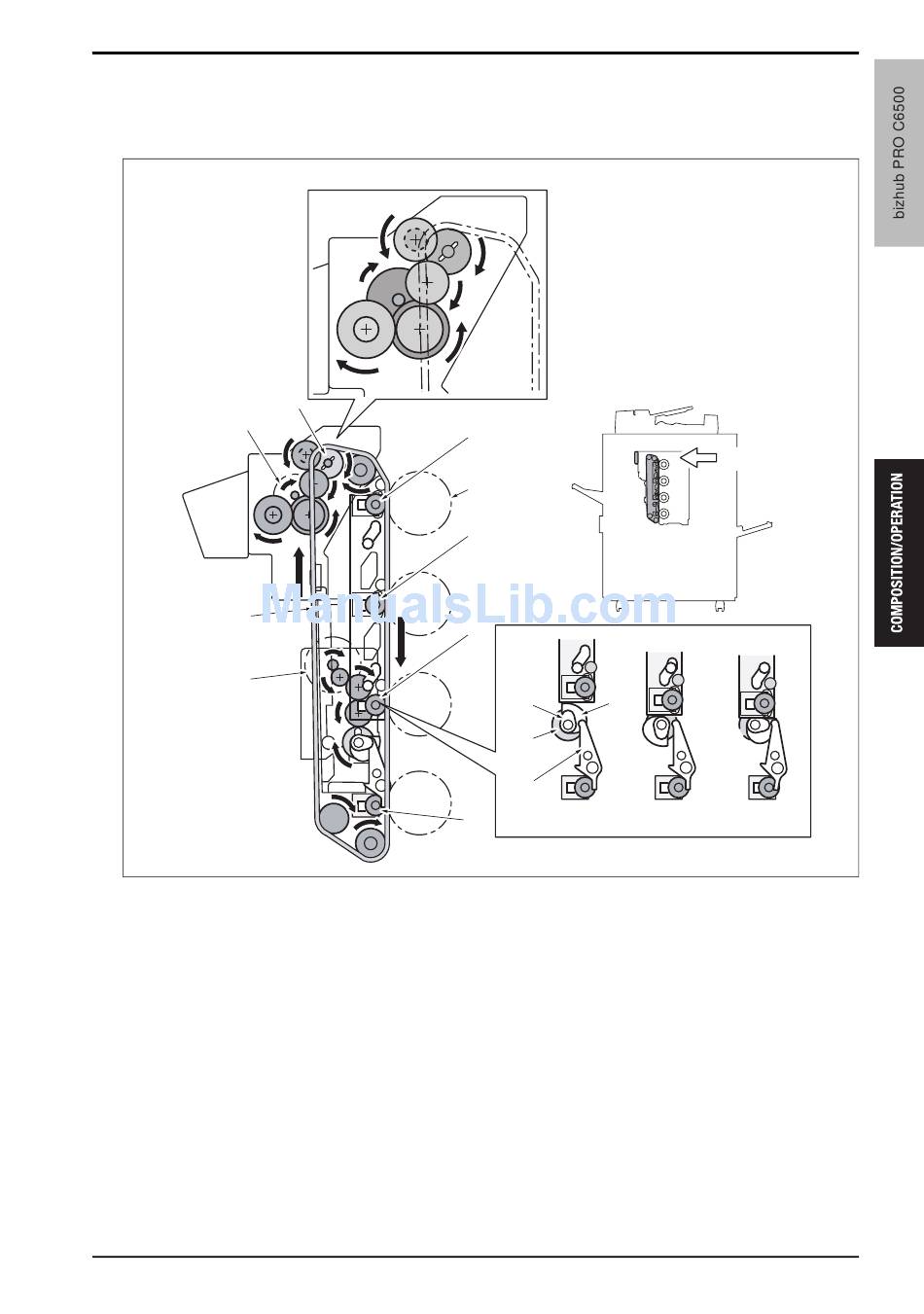

Transfer belt conveyance/pressure drive

[8]
[7]
[6]
[1] First transfer roller /Y
[2] Drum
[3] First transfer roller /M
[4] First transfer roller /C
[5] First transfer roller /K
[6] First transfer pressure/release motor (M19)
[7] Transfer belt
[8] Transfer belt motor (M18)
[9]
11. INTERMIDIATE TRANSFER SECTION
[1]
[2]
[3]
[4]
[16]
[15]
[14]
[13]
[12]
[5]
[9] Belt driving roller
[10] Standby (all released)
[11] Black-and-white mode (Only first transfer
rollers /K is pressed)
[12] Full color mode (all pressed)
[13] First transfer roller /K pressure release arm
[14] Drive coupling
[15] First transfer roller /K pressure release cam
[16] First transfer rollers /Y /M /C pressure
release cam
A
[11] [10]
a03ut2c033ca
49
