5. CONVEYANCE SECTION
5.3

Operation

5.3.1

Scanning and conveyance control

• The conveyance belt is driven by the conveyance motor (M302).
• In single-sided mode, a swing-back to position the original for scanning is performed after the original is
conveyed from the paper feed section to the conveyance belt.
• In double-sided mode, the original returned from the reverse/paper feed section is conveyed at low speed,
and is positioned for scanning.
• Thin paper mode is provided in the original size setting as the positioning control method differs between
thin paper and the other papers (plain and thick).

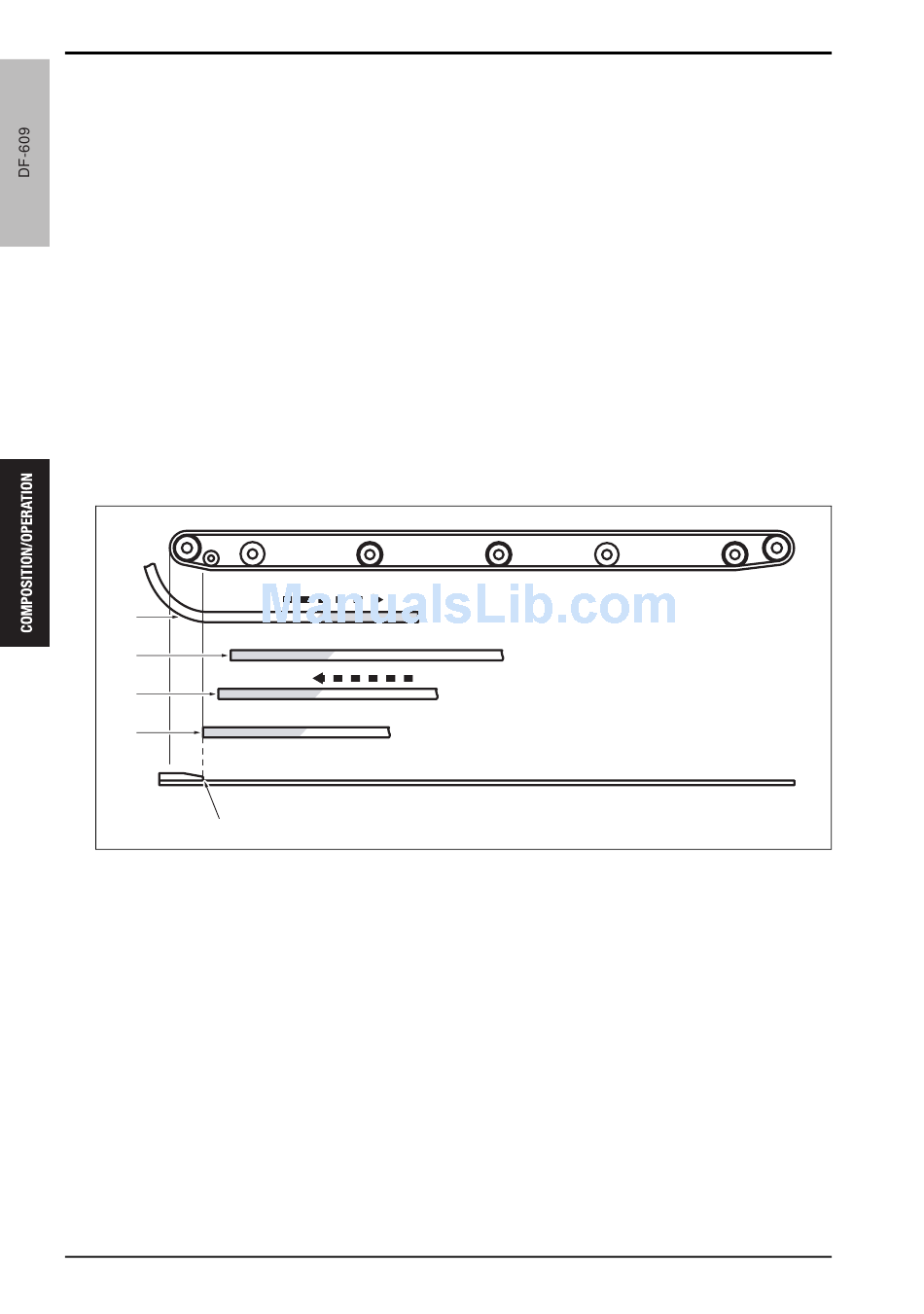

A. Single-sided mode
(1) Swing-back
1.
The original is conveyed from the paper feed section [2].
2.
The original is conveyed [3] to the point that the rear end of the original comes over the positioning plate [1].
3. The conveyance motor (M302) rotates in reverse at low speed and returns the original [4], and the original is
stuck against the positioning plate [5].
4.
The original is scanned.
[2]
[3]
[4]
[5]
[1]
[1] Stuck position
[2] Original conveyance
[3] Stops after going through the stuck position
16
Theory of Operation Ver1.0 Sep.2006
[4] Swing-back
[5] Positioning completed
a052t2c008ca
