6. CONVEYANCE SECTION
6.3

Operation

6.3.1

Stacker tray conveyance

While in the stacker tray non-sort mode and the stacker tray sort mode, paper is conveyed into the stacker tray.
A. Decurler
Paper that has passed through the 1st gate is conveyed to the grip belt by the decurler roller. At this time, the
correction of curled paper is made by the decurler roller.
B. Grip conveyance
Paper conveyed by the decurler roller enters and is help by the grip provided on the grip belt. The paper held by
the grip is conveyed to the section above the stacker tray by the rotation of the grip belt.
Two grips are provided on the grip belt and each one of them conveys paper one after the other. The position
where the grip is waiting for paper from the decurler roller is controlled by the grip conveyance home sensor
(PS5).

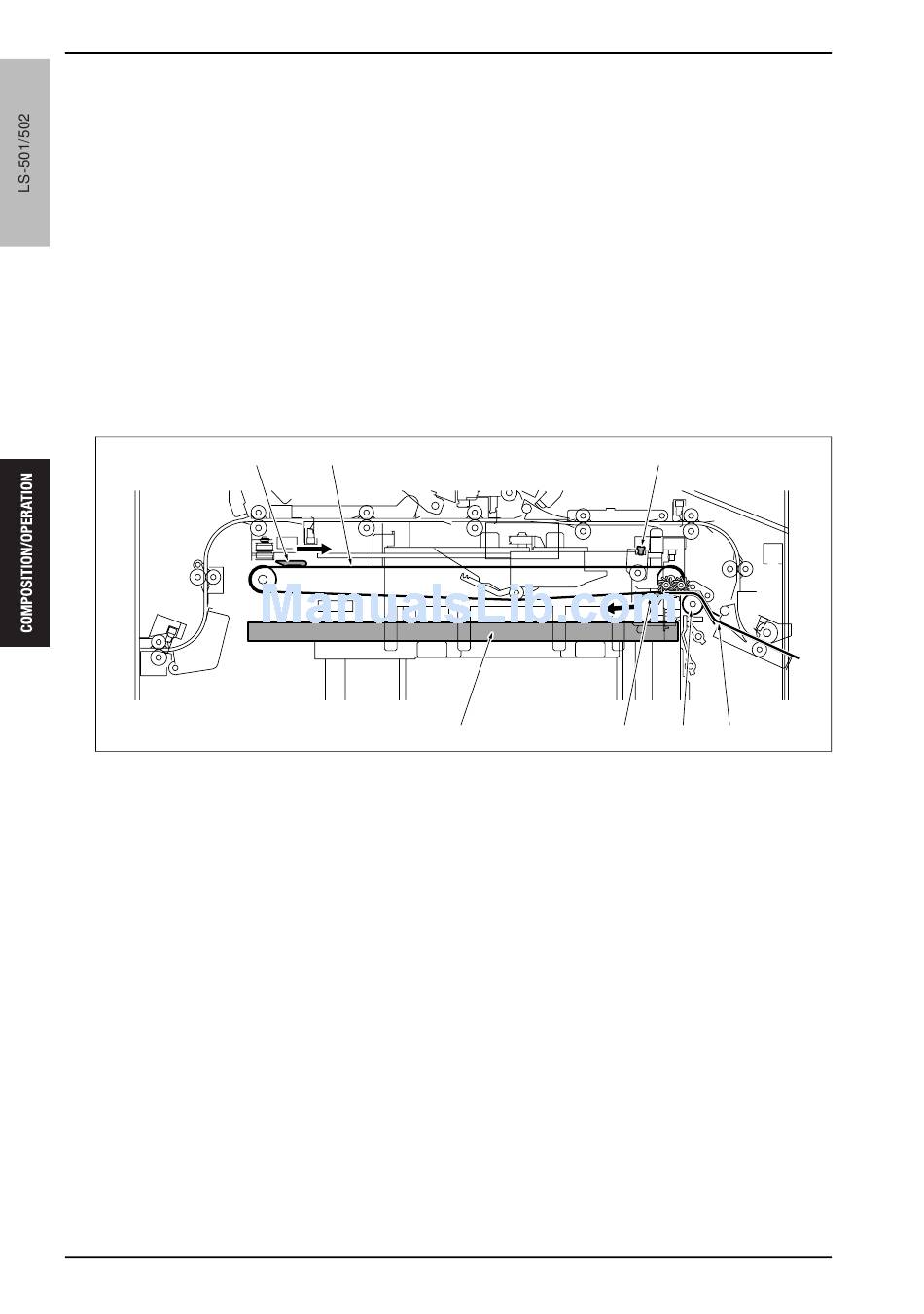

[1] Paper
[2] Decurler roller
[3] Grip
[4] Stacker tray
22
[5] [6]
Theory of Operation Ver2.0 Sep.2006
[4] [3]
[5] Grip
[6] Grip belt
[7] Grip conveyance home sensor (PS5)
[7]
[2] [1]
