Theory of Operation Ver1.0 Sep.2006

15.3 Operation

15.3.1

Plate up/down control

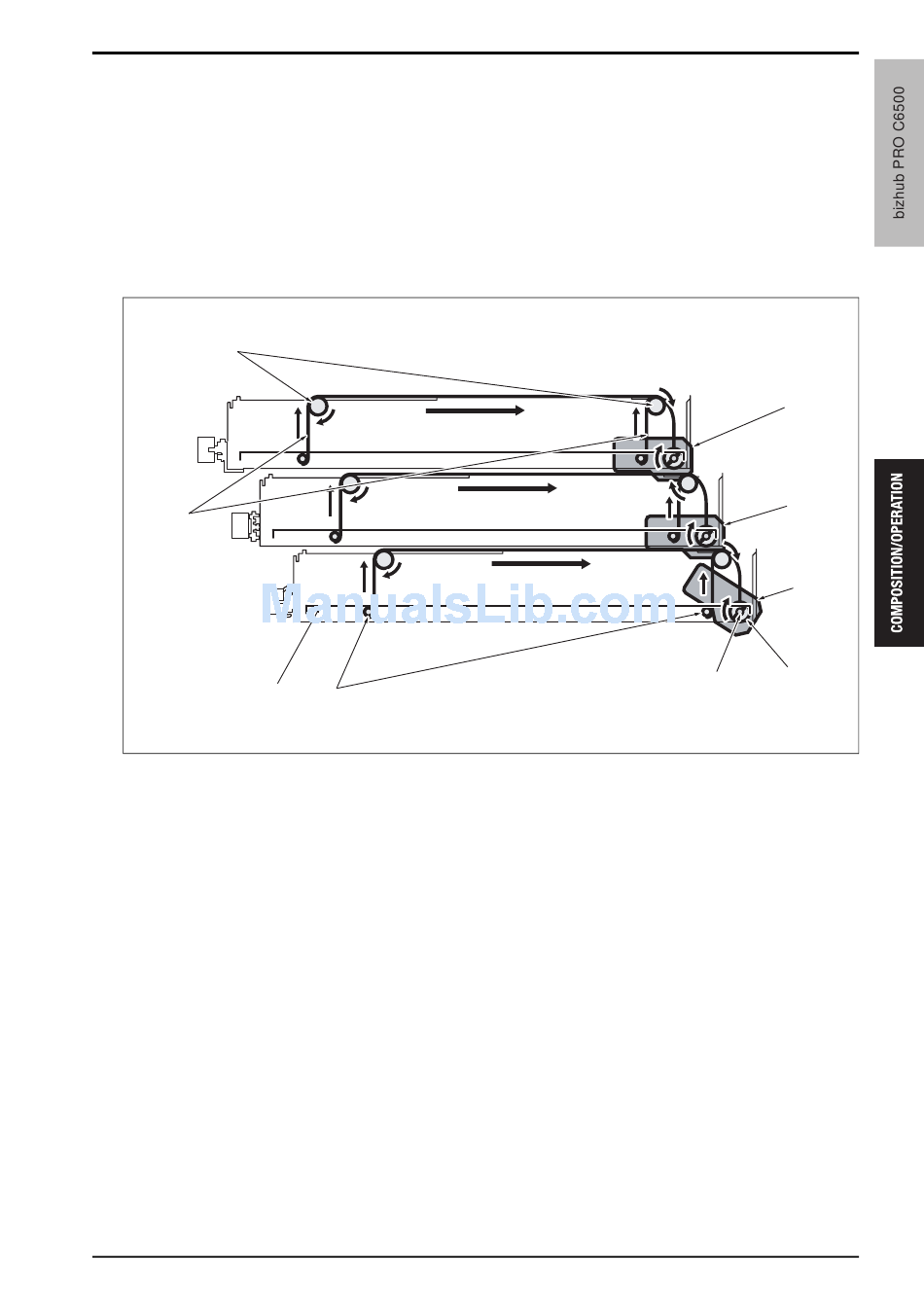

A. Plate-up operation
• The lift plate [7] lies on the both left and right shaft [6].
• The lift wires [8] are connected to each shaft and the plate is kept in a horizontal position by the drive pulley
[4], one for each of the lift drive shaft [5] via each pulley [9].
• When the each lift drive shaft of the trays are rotated by the paper lift motors /1 (M38) [1], /2 (M39) [2] and /
3 (M40) [3], the each drive pulley winds up the wire and then the lift plate goes up.
[9]
[8]
[7]
[1] M38
[2] M39
[3] M40
[4] Drive pulley
[5] Lift drive shaft
[6]
15. PAPER FEED SECTION
[6] Shaft
[7] Lift plate
[8] Lift wires
[9] Pulleys
[1]
[2]
[3]
[4]
[5]
a03ut2c047ca
