Serial audio interface (SAI)

FS signal role

The FS signal can have a different meaning depending on the FS function. FSDEF bit in the

SAI_xFRCR register selects which meaning it will have:

0: start of frame, like for instance the PCM/DSP, TDM, AC'97, audio protocols,

1: start of frame and channel side identification within the audio frame like for the I2S,

the MSB or LSB-justified protocols.

When the FS signal is considered as a start of frame and channel side identification within

the frame, the number of declared slots must be considered to be half the number for the left

channel and half the number for the right channel. If the number of bit clock cycles on half

audio frame is greater than the number of slots dedicated to a channel side, and TRIS = 0, 0

is sent for transmission for the remaining bit clock cycles in the SAI_xCR2 register.

Otherwise if TRIS = 1, the SD line is released to HI-Z. In reception mode, the remaining bit

clock cycles are not considered until the channel side changes.

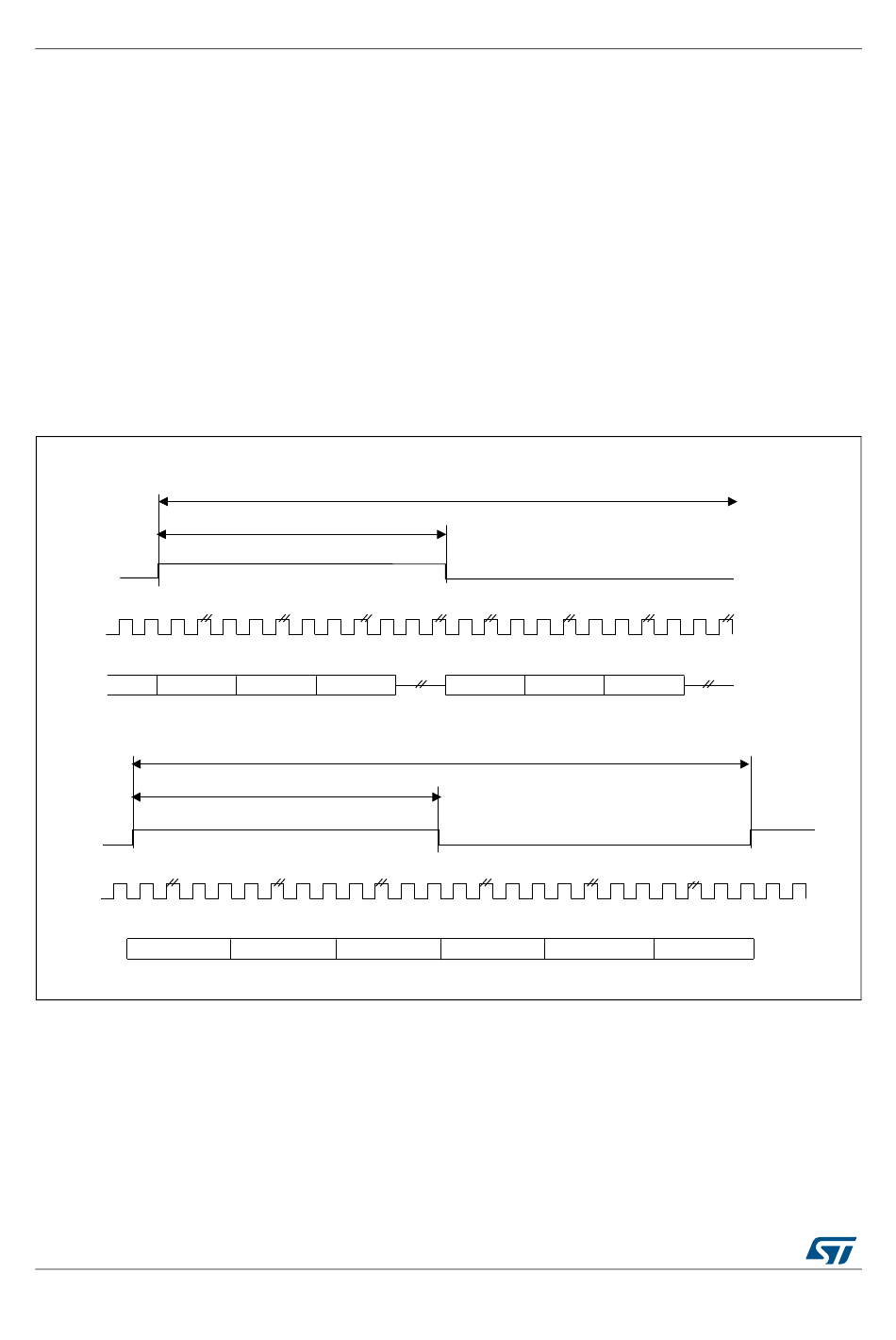

Figure 548. FS role is start of frame + channel side identification (FSDEF = TRIS = 1)

Number of slots not aligned with the audio frame

Number of slots aligned with the audio frame

1. The frame length should be even.

If FSDEF bit in SAI_xFRCR is kept clear, so FS signal is equivalent to a start of frame, and if

the number of slots defined in NBSLOT[3:0] in SAI_xSLOTR multiplied by the number of bits

by slot configured in SLOTSZ[1:0] in SAI_xSLOTR is less than the frame size (bit FRL[7:0]

in the SAI_xFRCR register), then:

Half of frame

Slot 1 OFF Slot 2 ON

Half of frame

RM0432 Rev 6

Slot 3 ON Slot 4 OFF Slot 5 ON
