5. OTHER MAINTENANCE ITEMS
[1]
[1]
5.5.39

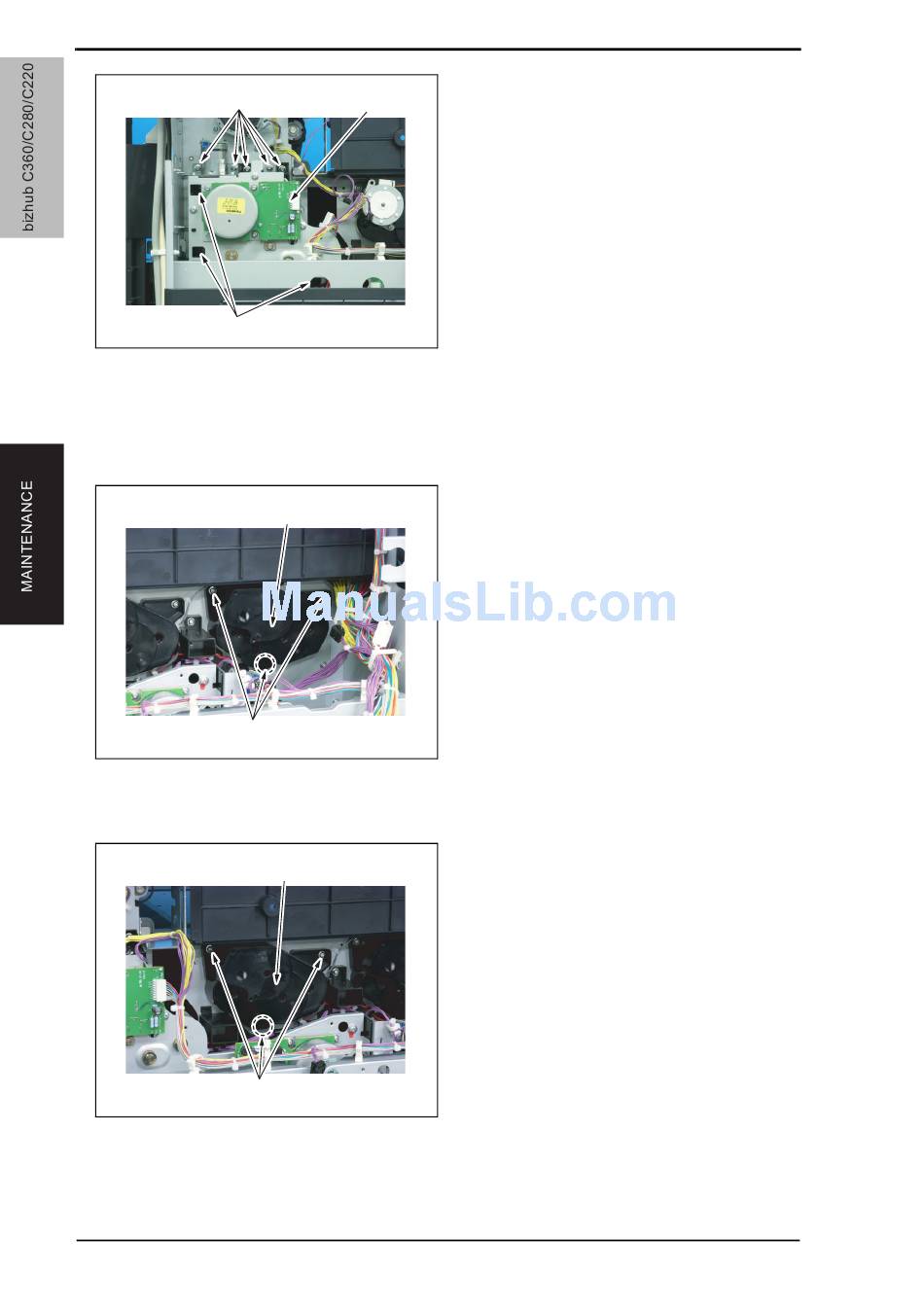

Hopper drive unit (C/K, Y/M)

A. Hopper drive unit (Y/M)
1. Remove the toner cartridge motor/YM.
See P.118
[1]
B. Hopper drive unit (C/K)
1. Remove the toner cartridge motor/CK.
See P.118
[1]
92
[2]
A0EDF2C130DA
[2]
A0EDF2C131DA
[2]
A0EDF2C132DA
Field Service Ver. 2.1 Feb. 2012
12. Remove eight screws [1], pull the
fusing drive unit [2] to you, and
remove it.
2. Remove three screws [1], and
remove the hopper drive unit (Y/M)
[2].
2. Remove three screws [1], and
remove the hopper drive unit (C/K)
[2].
