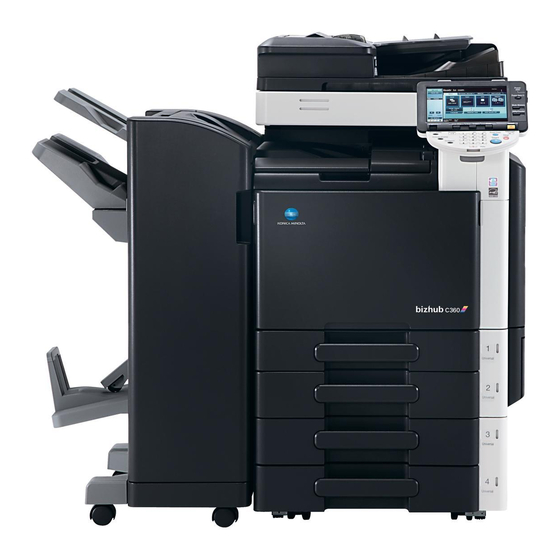

bizhub C360 / C280 / C220 Specifications
Type Full Color Printer/Copier/Scanner
Document holder Stationary (mirror scanning)
Photoconductor OPC
Luminous source White fluorescent lamp
Copying system Laser electrostatic copy method
Developing system Dry-type dual-component HMT
developing method
Fusing system Oil-less Belt Fusing System
Resolution Scanning: 600 x 600 dpi
Printing: 1800 (equivalent) x 600 dpi
Document holder Types: Sheets, books (page spreads),
three-dimensional objects
Size: Maximum 11" x 17"
Weight: 4.44 lb. (three-dimensional objects)
Paper Plain Paper (16 lb. to 24 lb.)
Thick Paper 1 (24.25 lb. to 40 lb.)
Thick Paper 2 (40.25 lb. to 55.5 lb.)
Thick Paper 3 (55.75 lb. to 68 lb.)
Thick Paper 4 (68.25 lb. to 72 lb.)*
OHP Transparencies*, letterhead,
colored paper, envelopes*, label sheets*,
banner paper*, postcards*
* Can only be fed through the bypass tray; B/W
copying/printing
on transparencies is supported. Color copying/
printing
on transparencies is NOT supported.
Copy sizes 1st Tray:
11" x 17" to 8.5" x 11", 5.5" x 8.5", 8" x 13"*
2nd Tray:
12.25" x 18" to 8.5" x 11", 5.5" x 8.5", 8" x 13"*
Bypass Tray:
12" x 18" to 5.5" x 8.5", 12.25" x 18", 4" x 6",
8" x 13"*, Banner Paper
* This setting must be changed by an authorized
Konica Minolta Service Technician.
Paper tray capacity 1st Tray and 2nd Tray:
Plain Paper: 500 sheets
Thick Paper: 1: 150 sheets
Thick Paper: 2: 150 sheets
Thick Paper: 3: 150 sheets
Bypass Tray:
Plain Paper: 150 sheets
Thick Paper: 1/2/3/4,
OHP Transparencies, Postcards,
Label Sheets: 20 sheets; Envelopes: 10;
Banner Paper: 10
Copy exit tray Plain Paper: 250 sheets
capacity Thick Paper: 10 sheets
OHP Transparencies*: 1 sheet
* Can only be fed through the bypass tray; B/W
copying/printing on transparencies is supported.
Color copying printing on transparencies is NOT
supported.
Konica Minolta
bizhub C360/C280/C220
Specification & Installation Guide
Warm-up time* C360/C280:
Full Color: Less than 35 seconds
B/W: Less than 27 seconds
C220:
Full Color: Less than 27 seconds
B/W: Less than 22 seconds
*at room temperature/73.4° F
Image loss width Leading edge: 0.188"
Trailing edge: 0.125"
Rear edge: 0.125"
Front edge: 0.125"
First copy C360/C280:
Color: 7.7 sec. or less
B/W: 5.8 sec. or less
C220:
Color: 11 sec. or less
B/W: 7.5 sec or less
Print speed*: C360:
(Full color/black) Full Color:
36 ppm (letter) single-sided;
36 sides/min (letter) double-sided
Black:
36 ppm (letter) single-sided;
36 sides/min (letter) double-sided
with special paper or with the "Glossy"
setting (letter): 12 ppm (single-sided):
C280:
Full Color:
28 ppm (letter) single-sided;
28 sides/min (letter) double-sided
Black:
28 ppm (letter) single-sided;
28 sides/min (letter) double-sided
with special paper or with the "Glossy"
setting (letter): 12 ppm (single-sided):
C220:
Full Color:
22 ppm (letter) single-sided;
22 sides/min (letter) double-sided
Black:
22 ppm (letter) single-sided;
22 sides/min (letter) double-sided
with special paper or with the "Glossy"
setting (letter): 12 ppm (single-sided):
Color/B/W (single sided):
C360/C280/C220 Paper Size
17/17/12 ppm
20/20/14 ppm
36/29/23 ppm
25/25/18 ppm
20/20/14 ppm
36/29/23 ppm
05/2011
11" x 17"
8.5" x 14"
8.5" x 11"P
8.5" x 11"L
8" x 13"L
5.5" x 8.5"L
continued
