5.5

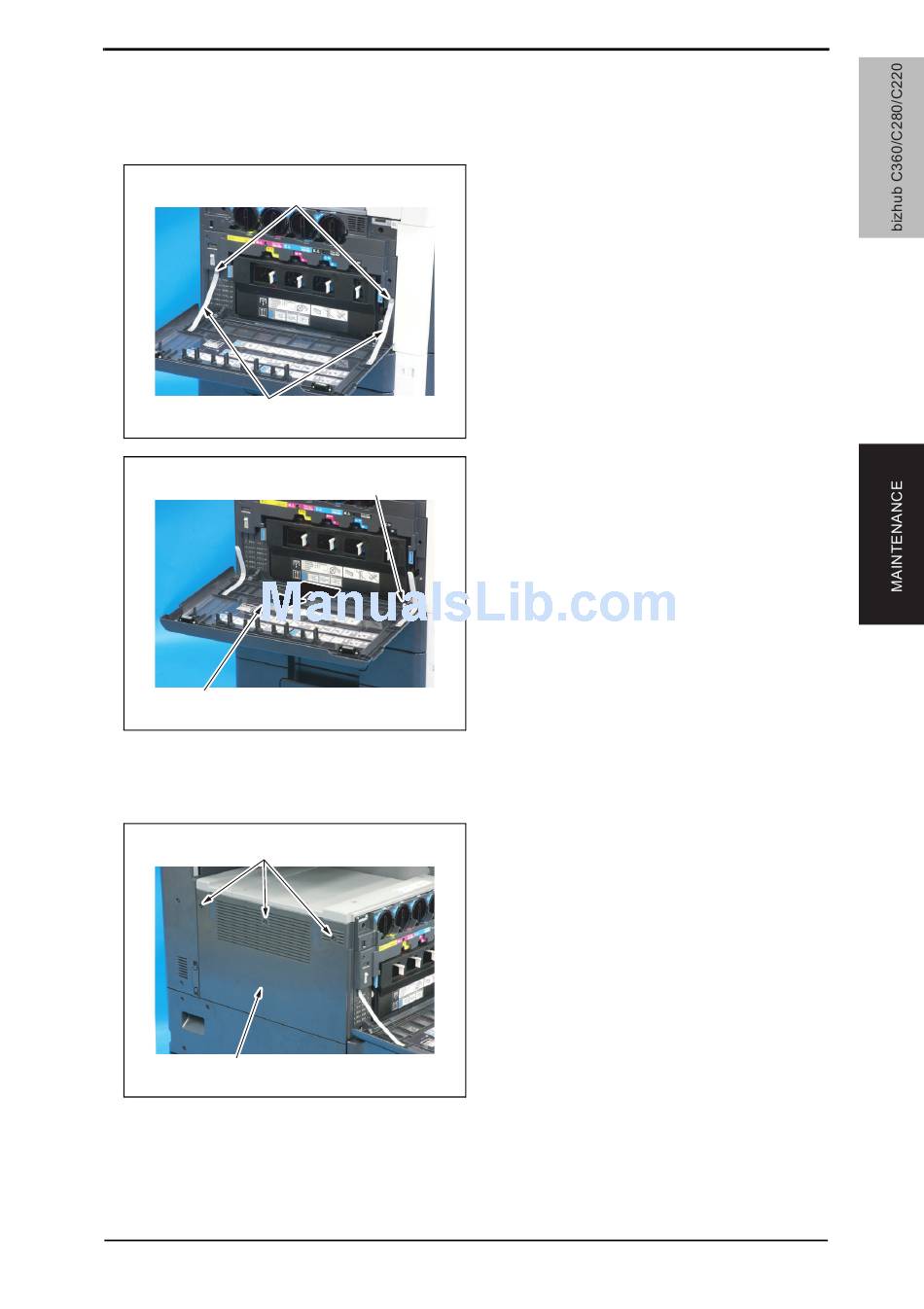

Disassembly/reassembly procedure

5.5.1

Front door

1. Open the front door.
[2]
[2]
5.5.2

Left cover

1. Open the front door.
[1]
[2]
[1]
A0EDF2C041DA
[1]
A0EDF2C042DA
A0EDF2C043DA
5. OTHER MAINTENANCE ITEMS
2. Remove two screws [1], and remove
two stoppers [2].
3. Remove the C-clip [1], and remove
the front door [2].
2. Remove three screws [1], and
remove the left cover [2].
55
