Piston Removal - Honda Transalp XL700V Manual

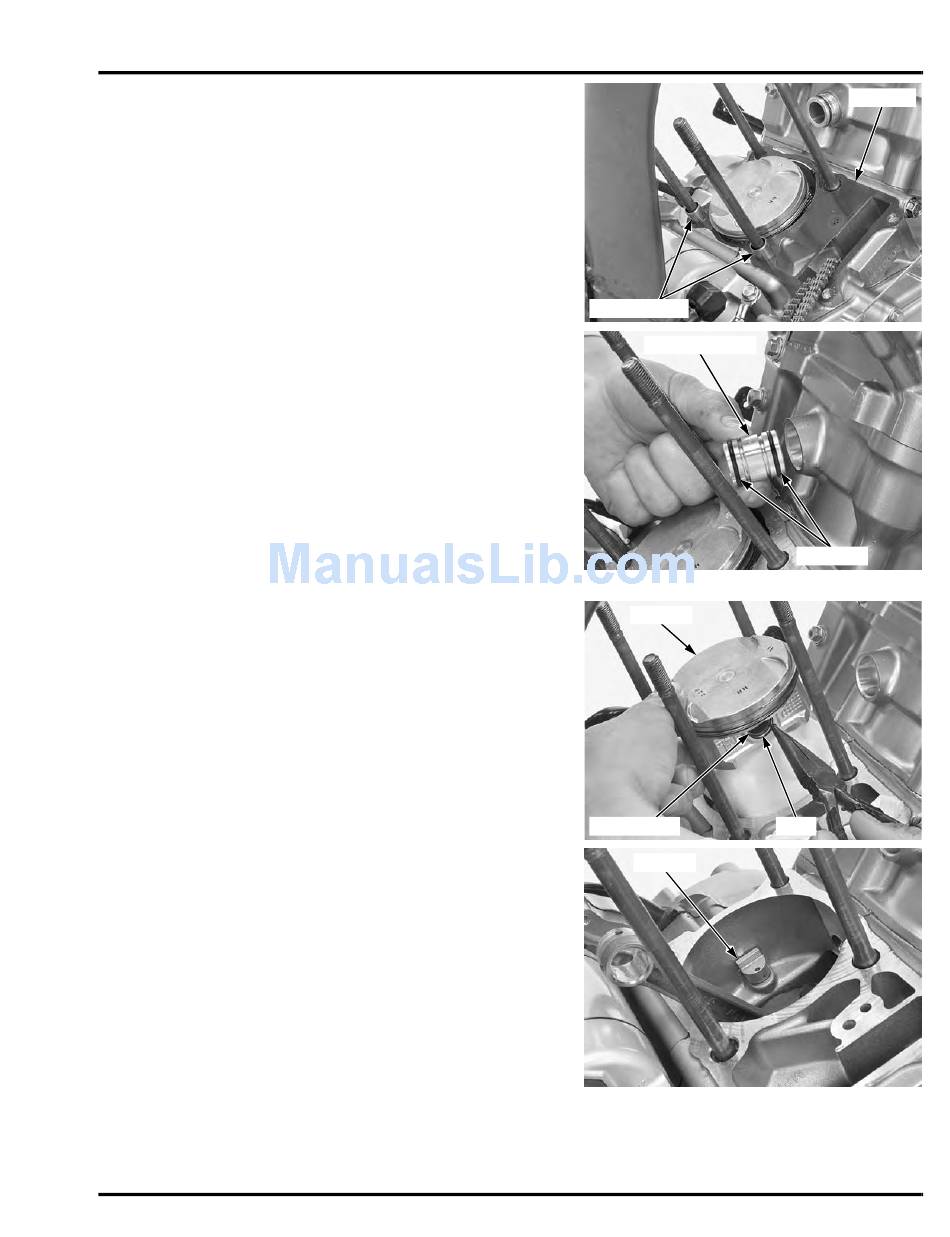

Remove the gasket and dowel pins.
Clean off any gasket material from the crankcase
Be careful not to
upper surface.
damage the mating
surface.
Remove the joint collar from the cylinder.
Remove the O-rings.

PISTON REMOVAL

Remove the piston pin clip with pliers.
Place a clean shop
Push the piston pin out of the piston and connecting
towel over the
rod, then remove the piston.
crankcase to
prevent the clip
from falling into the
crankcase.
Remove the oil jet from the crankcase.
CYLINDER/PISTON
DOWEL PINS
JOINT COLLAR
PISTON
PISTON PIN
OIL JET
GASKET
O-RINGS
CLIP
9-5
