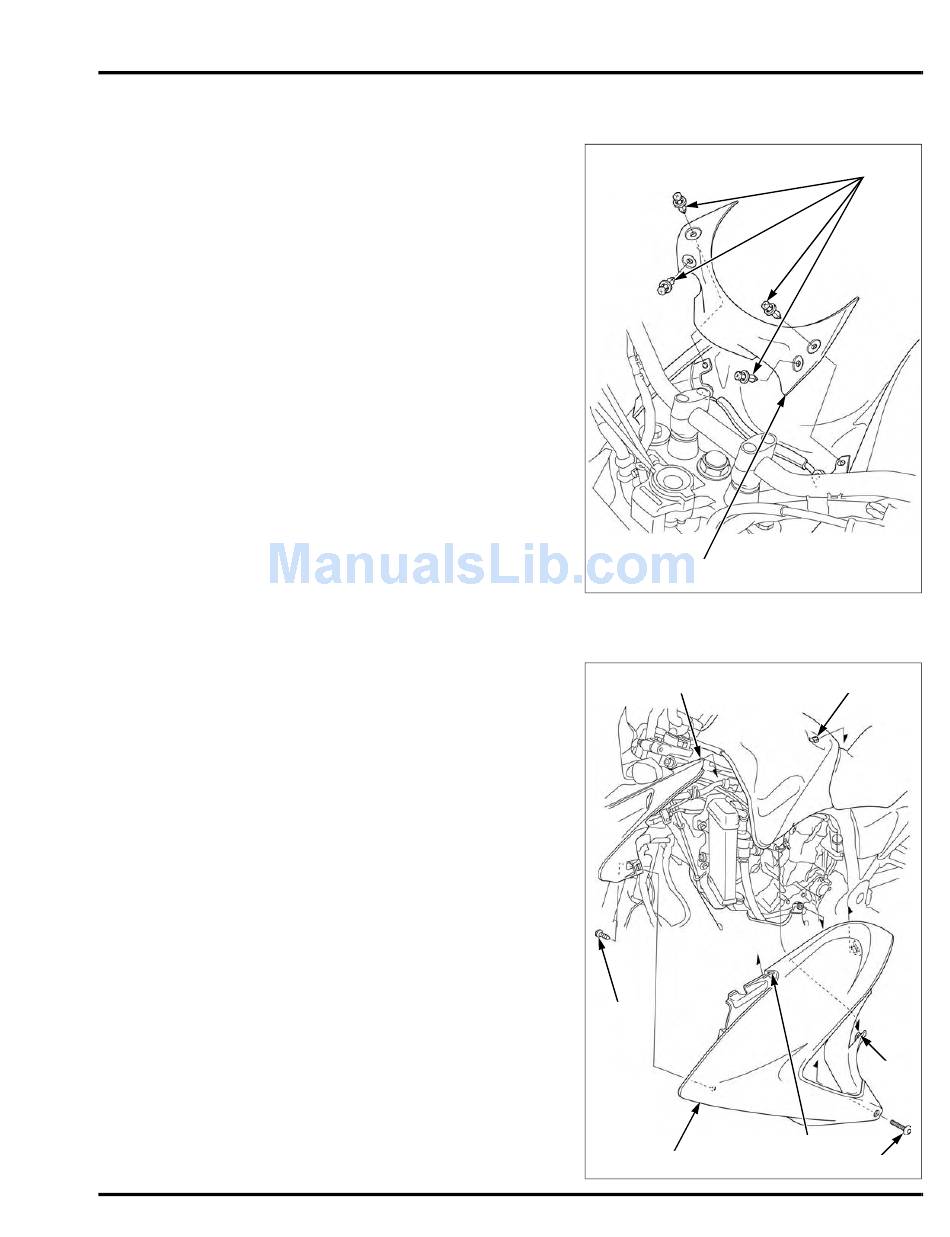

INNER CENTER COWL

REMOVAL/INSTALLATION
Remove the trim clips and inner center cowl.
Installation is in the reverse order of removal.

FRONT SIDE COWL

REMOVAL/INSTALLATION
Remove the inner center cowl (page 2-9).
Remove the bolt and screw.
Release the tab on the front center cowl from the
Be careful not to
front side cowl slit.
damage the tabs
Release the tab on the front side cowl from the fuel
and slit.
tank.
Release the prong on the fuel tank and remove the
front side cowl.
Installation is in the reverse order of removal.
FRAME/BODY PANELS/EXHAUST SYSTEM
INNER CENTER COWL
TAB
SCREW
FRONT SIDE COWL
TRIM CLIPS
PRONG
TAB
SLIT
BOLT
2-9
