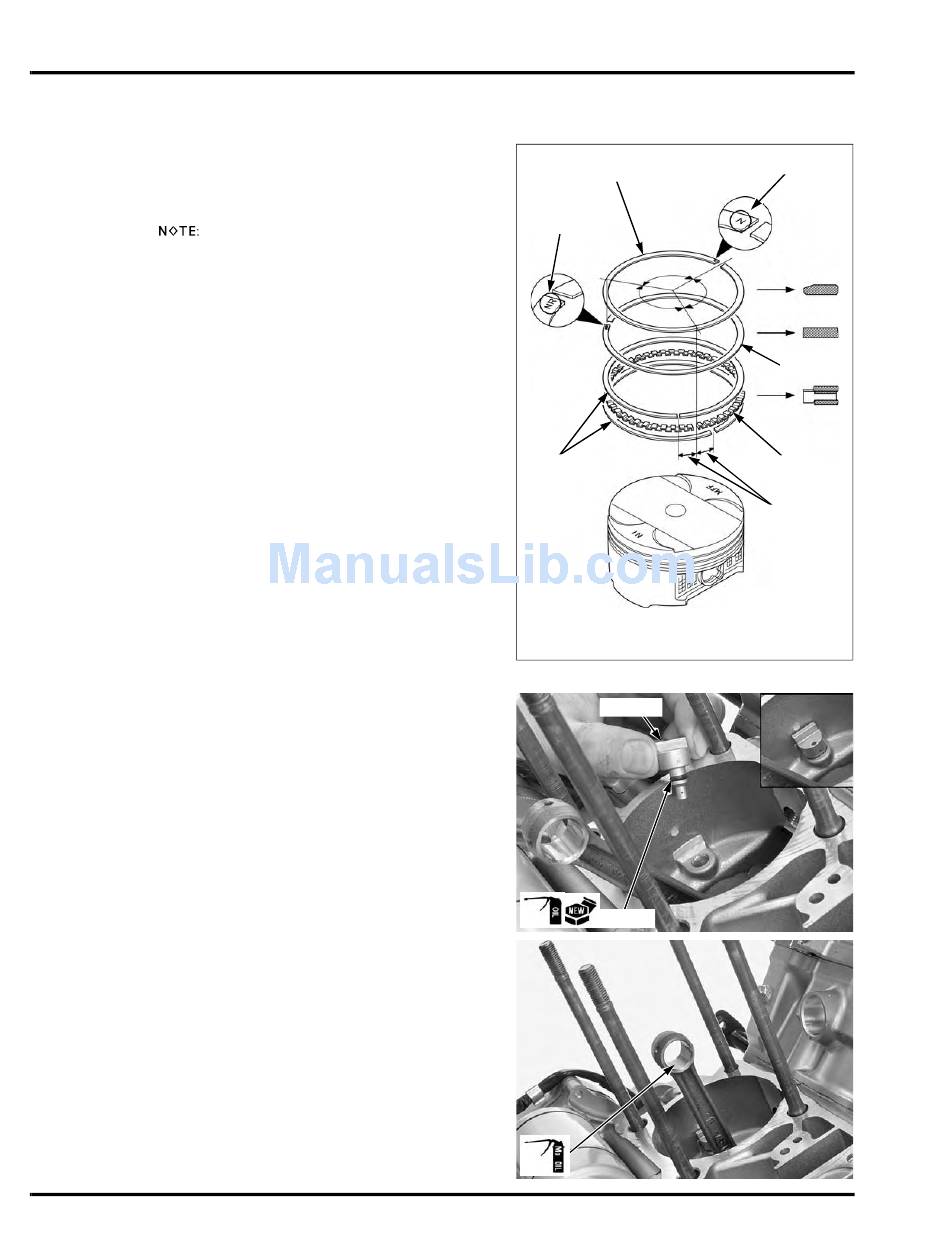

CYLINDER/PISTON
CYLINDER/PISTON INSTALLATION
PISTON RING INSTALLATION
Apply engine oil to the piston and piston ring outer
surface.
Carefully install the piston rings into the piston ring
Be careful not to
grooves with the markings facing up.
damage the piston
and rings.
• Do not confuse the top and second rings.
• To install the oil ring, install the spacer first, then
install the side rails.
Stagger the piston ring end gaps 120° apart from
each other.
Stagger the side rail end gaps as shown.
PISTON INSTALLATION
Replace the O-ring with a new one and apply engine
oil.
Install new O-ring to the oil jet groove securely.
Install the oil jet to the crankcase securely with the
semi-circular side facing in.
Apply molybdenum disulfide oil solution to the con-
necting rod bore.
9-10
TOP RING
"NR" MARK
120°
120°
SIDE RAILS
OIL JET
O-RING
"N" MARK
120°
SECOND
RING
SPACER
20 mm (0.8 in)
OR MORE
