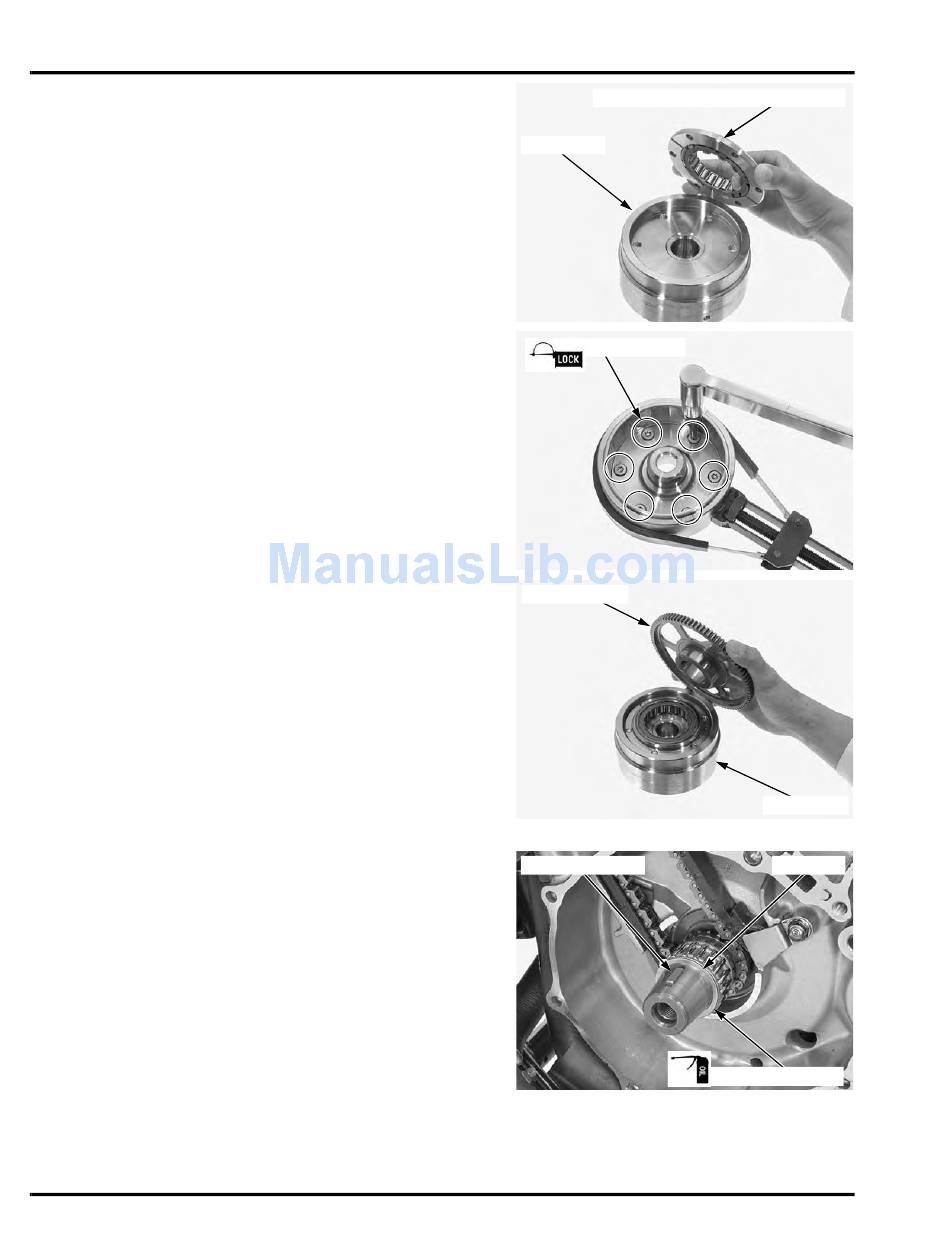

ALTERNATOR/STARTER CLUTCH
Install the clutch outer and one-way clutch to the fly-
wheel.
Hold the flywheel using the special tool.
TOOL:
Flywheel holder
Clean and apply a locking agent to the torx bolt
threads (page 1-18).
Install and tighten the torx bolts to the specified
torque.
TORQUE: 30 N·m (3.1 kgf·m, 22 lbf·ft)
Install the starter driven gear to the flywheel while
turning the driven gear counterclockwise.
Recheck the one-way clutch operation (page 11-7).

FLYWHEEL INSTALLATION

Apply engine oil to the needle bearing and install it
to the crankshaft.
Install the washer to the crankshaft.
Wipe any oil off the mating surface of the crankshaft
with flywheel and woodruff key groove.
Install the woodruff key to the key groove of the
During woodruff
crankshaft.
key installation, be
careful not to
damage the key
groove or
crankshaft.
11-10
FLYWHEEL
07725-0040001 or
equivalent commer-
cially available
DRIVEN GEAR
WOODRUFF KEY
CLUTCH OUTER/ONE-WAY CLUTCH
TORX BOLTS
FLYWHEEL
NEEDLE BEARING
WASHER
