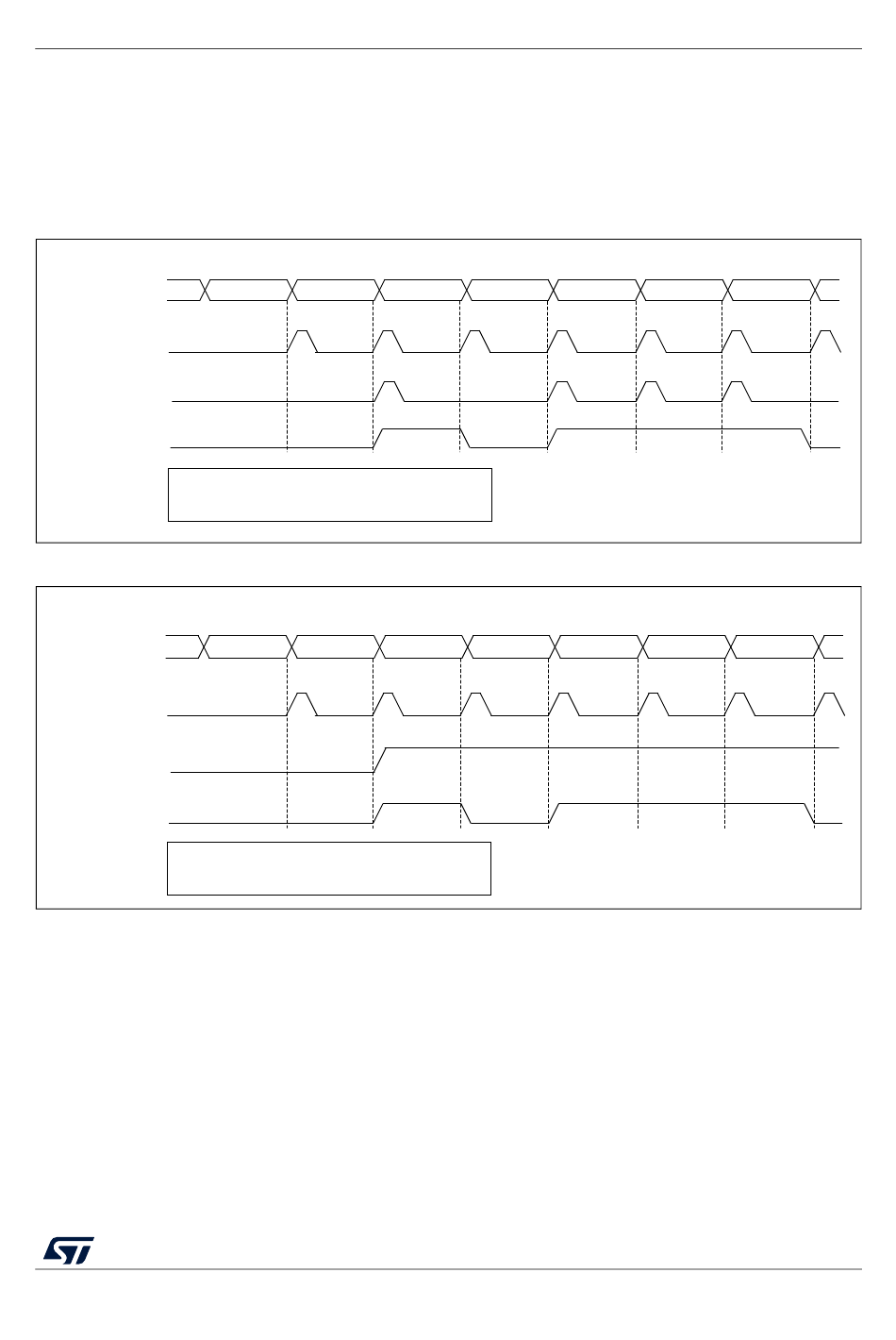

Figure 63. Adc_Awdx_Out Signal Generation; Figure 64. Adc_Awdx_Out Signal Generation (Awdx Flag Not Cleared By Software) - STMicroelectronics STM32WLEx Reference Manual

RM0461
The AWD comparison is performed at the end of each ADC conversion. The
ADC_AWDx_OUT rising edge and falling edge occurs two ADC_CLK clock cycles after the
comparison.
As ADC_AWDx_OUT is generated by the ADC_CLK domain and AWD flag is generated by
the APB clock domain, the rising edges of these signals are not synchronized.
ADC STATE
RDY
EOC FLAG
AWDx FLAG
ADC_AWDx_OUT
- Converted channels: 1,2,3,4,5,6,7
- Guarded converted channels: 1,2,3,4,5,6,7

Figure 64. ADC_AWDx_OUT signal generation (AWDx flag not cleared by software)

ADC STATE RDY
EOC FLAG
AWDx FLAG
ADC_AWDx_OUT
- Converted channels: 1,2,3,4,5,6,7
- Guarded converted channels: 1,2,3,4,5,6,7

Figure 63. ADC_AWDx_OUT signal generation

Conversion1 Conversion2
inside outside
Conversion1 Conversion2
inside outside
Conversion3 Conversion4
inside outside
Cleared
by SW
Conversion3 Conversion4
inside outside
not cleared by SW
