RM0461
15.3 CRC functional description
15.3.1 CRC block diagram
crc_hclk
15.3.2 CRC internal signals
Signal name
15.3.3 CRC operation
The CRC calculation unit has a single 32-bit read/write data register (CRC_DR). It is used to
input new data (write access), and holds the result of the previous CRC calculation (read
access).
Each write operation to the data register creates a combination of the previous CRC value
(stored in CRC_DR) and the new one. CRC computation is done on the whole 32-bit data
word or byte by byte depending on the format of the data being written.
The CRC_DR register can be accessed by word, right-aligned half-word and right-aligned
byte. For the other registers only 32-bit accesses are allowed.
The duration of the computation depends on data width:
•
4 AHB clock cycles for 32 bits
•
2 AHB clock cycles for 16 bits
• 1 AHB clock cycles for 8 bits
An input buffer allows a second data to be immediately written without waiting for any wait
states due to the previous CRC calculation.

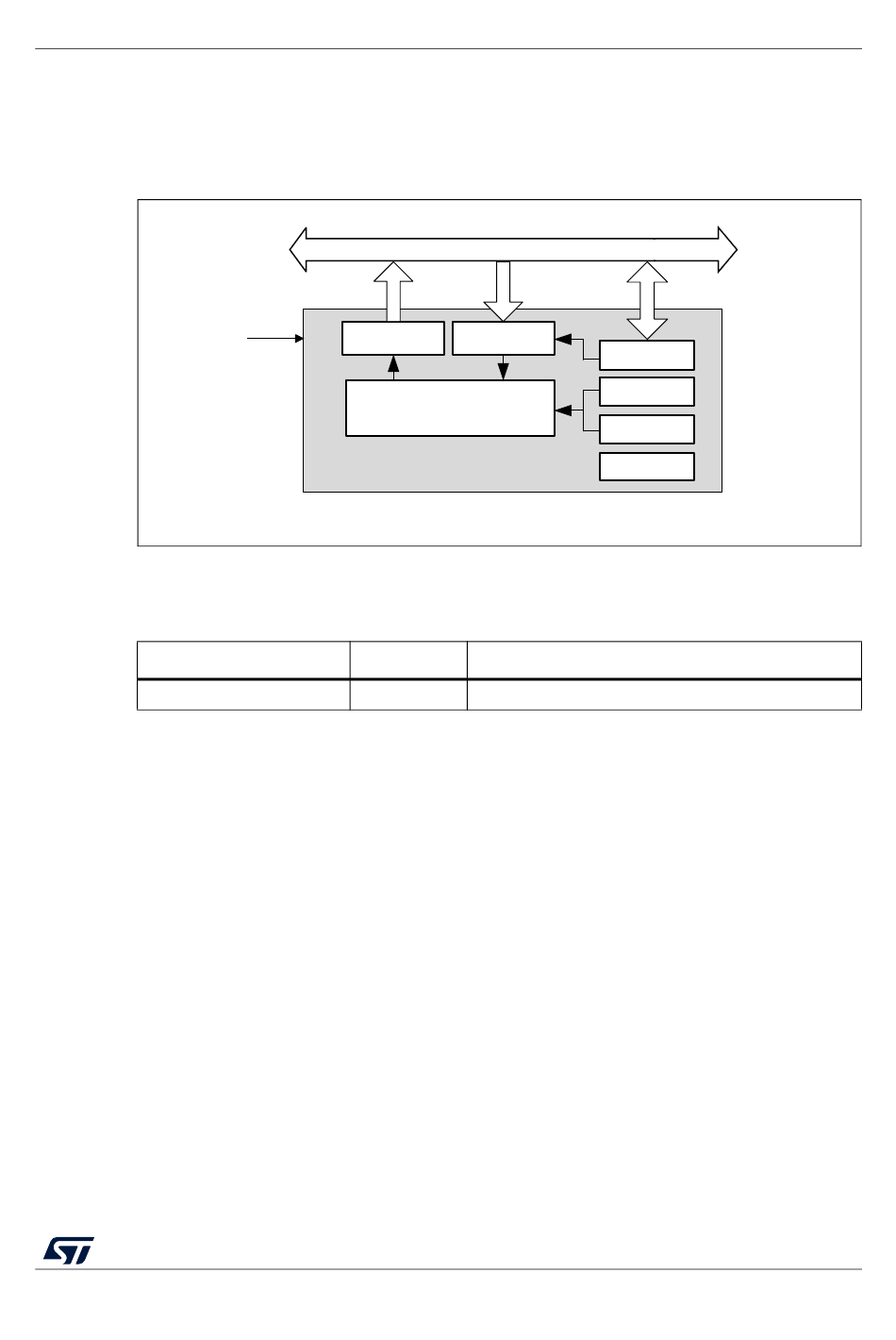

Figure 43. CRC calculation unit block diagram

read access
Data register
(output)

Table 86. CRC internal input/output signals

Signal type
crc_hclk Digital input
Cyclic redundancy check calculation unit (CRC)
32-bit AHB bus
write access 32-bit accesses
Data register
(input)
CRC computation
AHB clock
RM0461 Rev 5
CRC_INIT
CRC_CR
CRC_POL
CRC_IDR
Description
MS19882V3
421/1306
426
