RM0461 Advanced-control timer (TIM1)

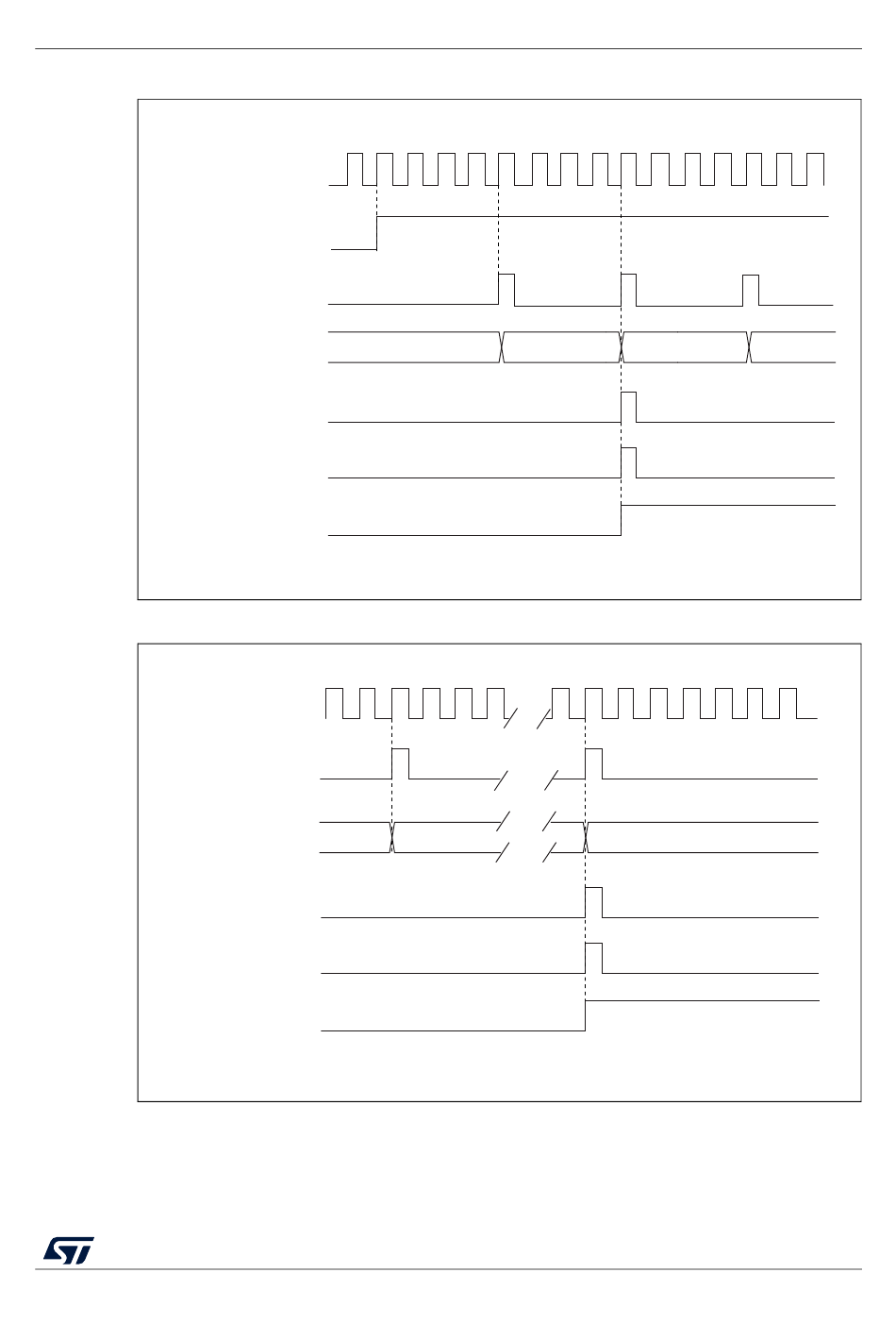

Figure 119. Counter timing diagram, internal clock divided by 4

CK_PSC
CNT_EN
Timerclock = CK_CNT
Counter register
0035 0036 0000 0001
Counter overflow
Update event (UEV)
Update interrupt flag
(UIF)
MS31080V2

Figure 120. Counter timing diagram, internal clock divided by N

CK_PSC
Timerclock = CK_CNT
1F 00
Counter register 20
Counter overflow
Update event (UEV)
Update interrupt flag
(UIF)
MS31081V2
