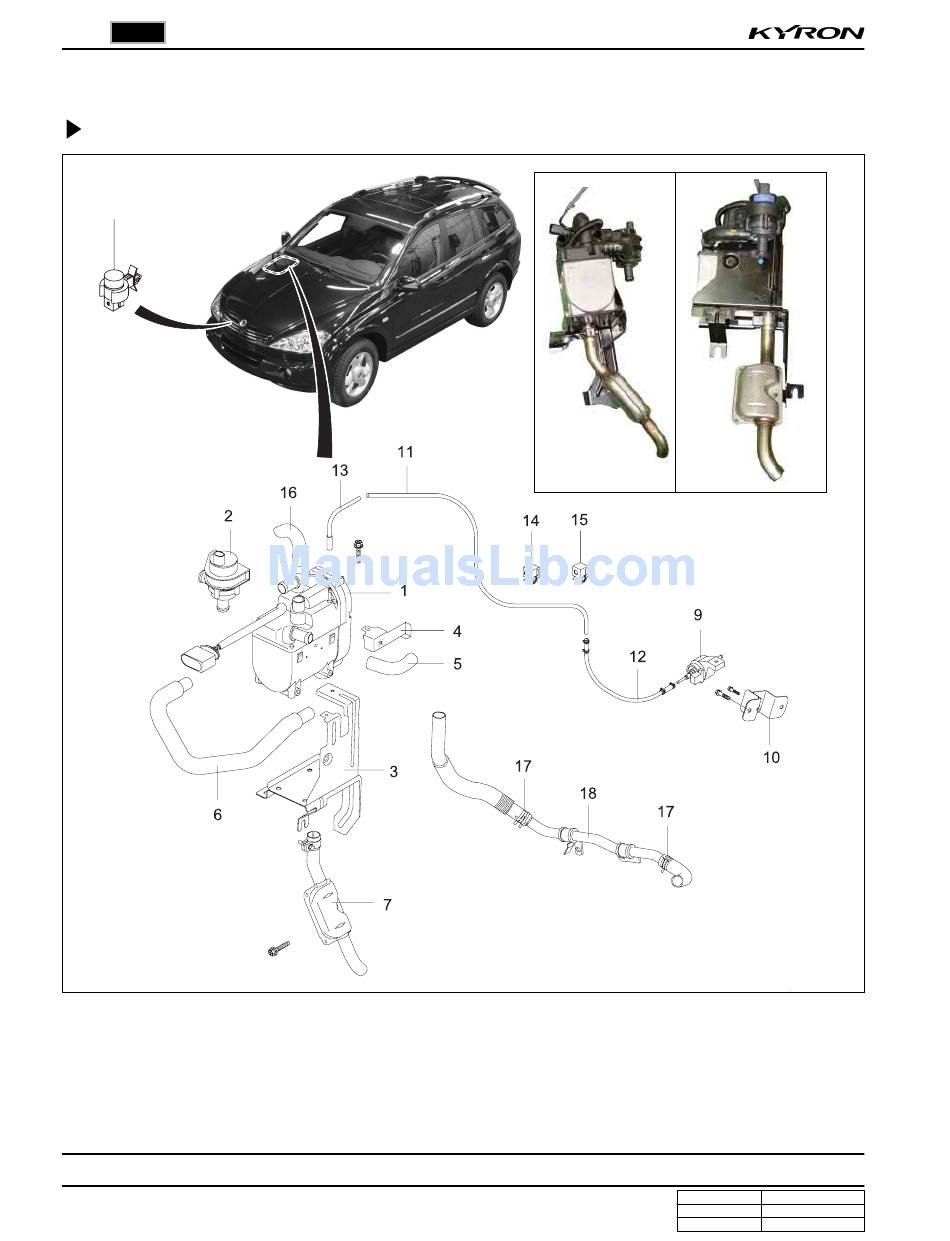

2. FFH LAYOUT

Components
8
1. FFH assembly
2. Water pump and bracket assembly
3. FFH bracket assembly
4. FFH water pump bracket
5. FFH NO.3 inlet hose
6. FFH NO.2 inlet hose
AIR CONDITIONING SYSTEM
KYRON SM - 2005.09
7. FFH pipe assembly & silencer
8. Ambient temperature switch
9. FFH fuel pump
10. Fuel pump bracket
11. Fuel pipe NO.1
12. Fuel pipe NO.2
13. Fuel pipe NO.3
14. Tube clip mounting
15. Tube clip mounting
16. Intake hose
17. Clamp
18. FFH NO.1 inlet hose
