Rear Bumper

Preceding Work: Disconnect the negative battery cable and remove the rear combination lamps.

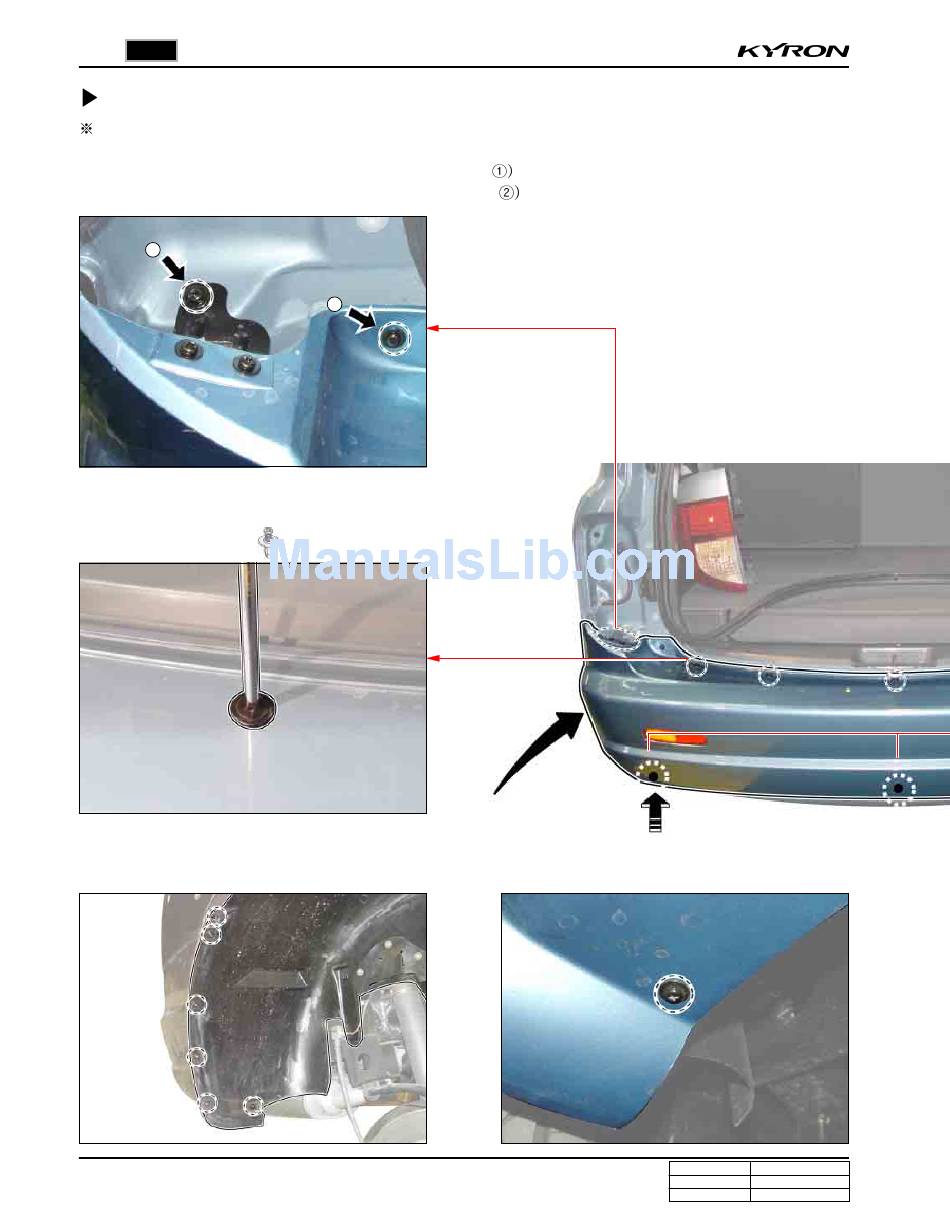

1. Unscrew the mounting bolts from the rear bumper. (arrow
Unscrew the mounting screw from the rear bumper. (arrow
1
2. Remove the scrivets (
3. Unscrew the mounting screws from the wheelhouse.
BODY EXTERIOR
KYRON SM - 2005.09
2
) from the rear bumper.
4. Unscrew the lower mounting screws from the bumper.
