General Inspection

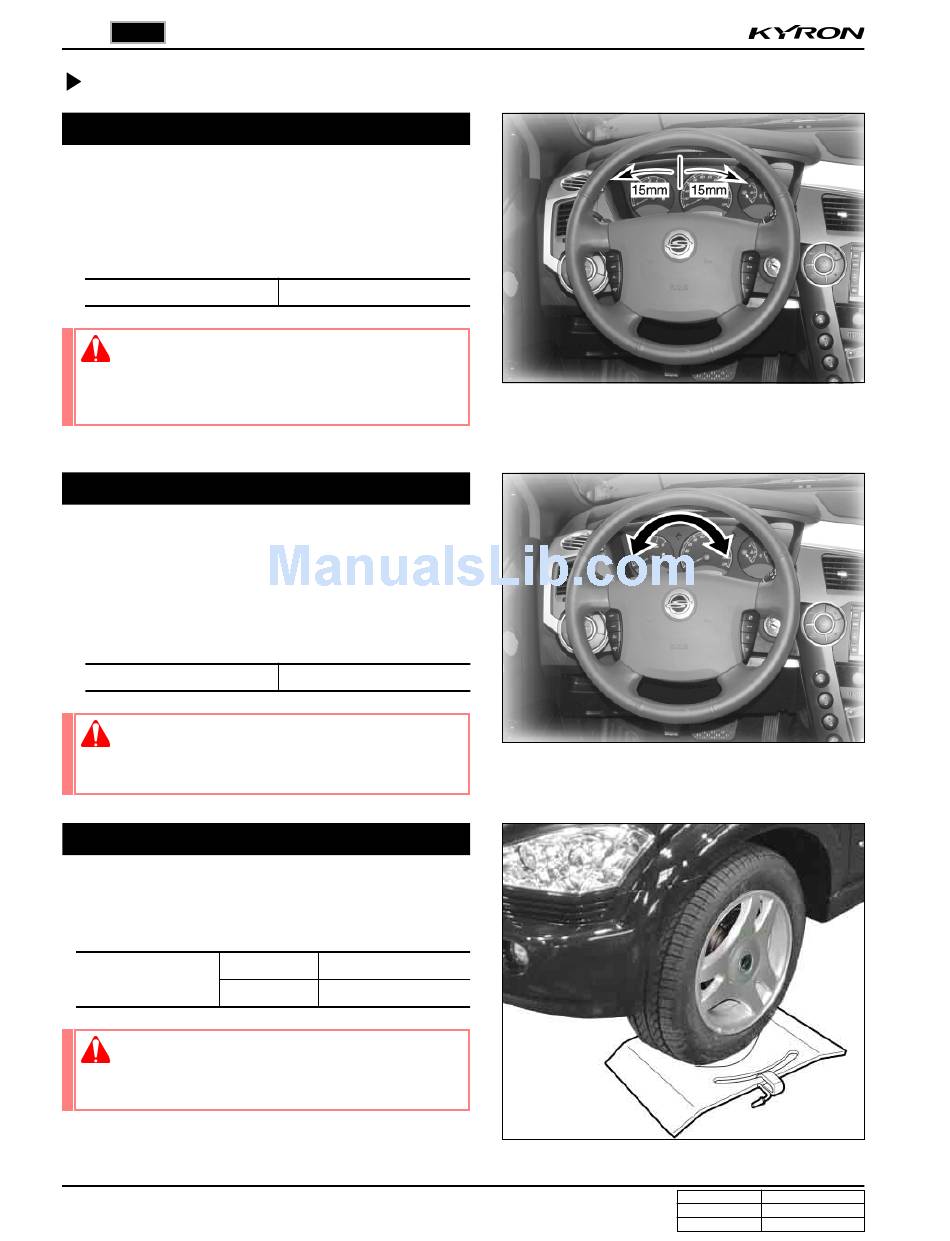

Power Steering Wheel Free Play Check
1. Start the engine and place the wheels at straight ahead
direction.
2. Turn the steering wheel until the tires starts to move
and measure the distance on the circumference of the
steering wheel.
Specified value
NOTICE
• If the free play is out of the specified value, check
the free play in steering column shaft connection and
steering linkage. Replace or repair if necessary.
Steering Effort Check
1. Park the vehicle on a paved and flat ground and place
the front wheels at straight ahead direction.
2. Start the engine and let it run around 1,000 rpm.
3. Install the spring scale on the circumference of the steer-
ing wheel and measure the steering effort in both
directions.
Steering effort
NOTICE
• The difference between both sides should be within
0.6 kg.
Steering Angle Check
1. Place the front wheel on a turning radius measuring tool.
2. Turn the steering wheel to the its both ends and mea-
sure the maximum steering angle.
Specified value
NOTICE
• If the free play is out of the specified value, check
and adjust the toe-in.
POWER STEERING SYSTEM
KYRON SM - 2005.09
30 mm
below 3.0 kg
Inner 36° 20'
Outer 32° 40'
