SSANGYONG Kyron Repair Manual page 263

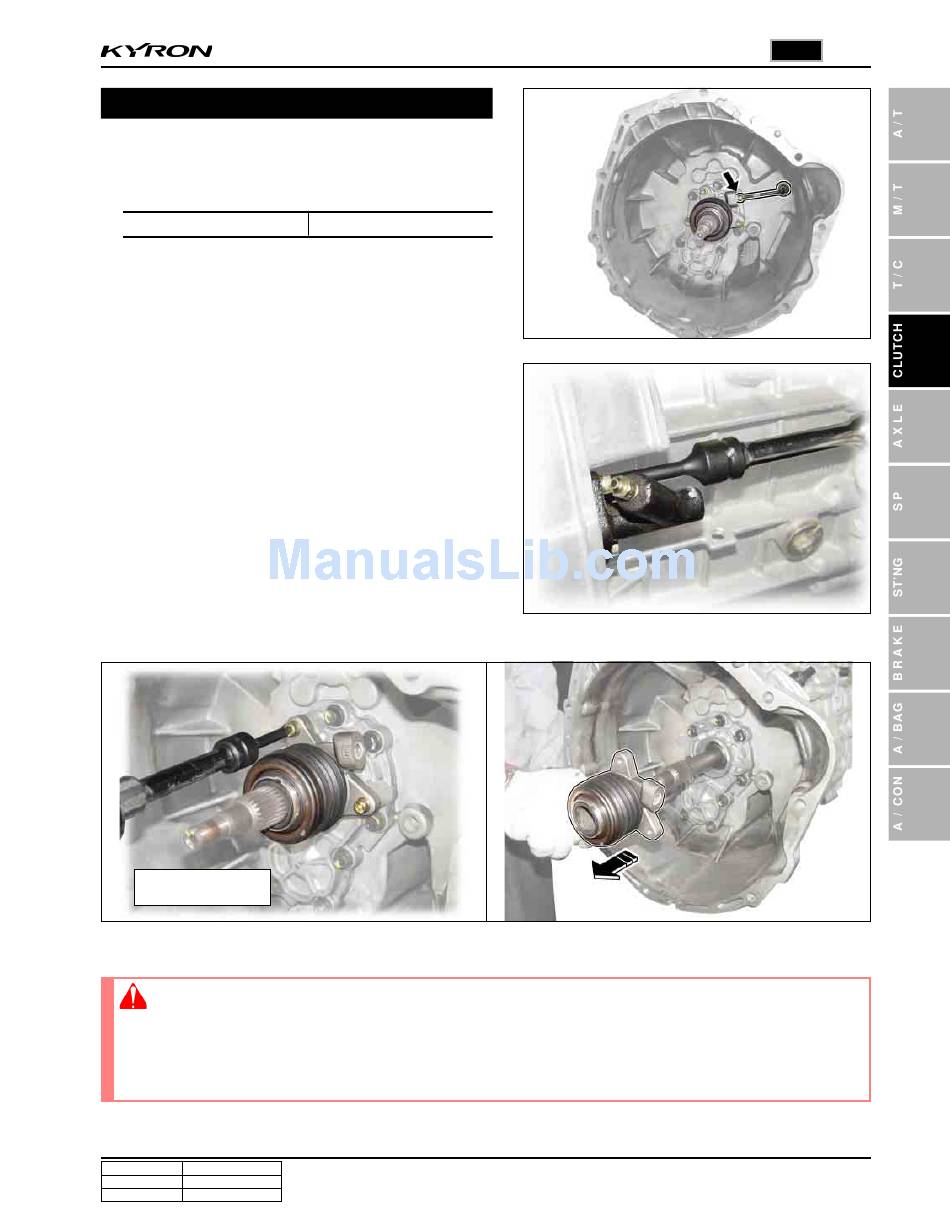

Concentric Slave Cylinder
1. Unscrew the nut and remove the oil pipe from the clutch
housing.
Installation Notice
Tightening torque
2. Unscrew the oil pipe adapter mounting bolt from the
clutch housing and remove the adapter and oil pipe.
3. Unscrew three bolts and remove the concentric slave cylinder assembly on the input shaft of cylinder.
Tightening torque:
10 ~ 16 Nm
4. Install in the reverse order of removal.
NOTICE
• Before installation, clean all the components.
• Do not re-use the used clutch fluid.
• Apply a small amount of clutch fluid on the internal components such as piston.
• Replace parts if necessary.
Keep the specified tightening torque.
CHANGED BY
EFFECTIVE DATE
AFFECTED VIN
20 ~ 25 Nm
15
3010
CLUTCH
KYRON SM - 2005.09
