POWER OUTLET

Rated voltage: over DC 12 V, Max. operating current: 10 A, Resistance: over 5 MΩ
Front Power Outlet
1. Remove the power outlet bracket from the center
console (passenger side).
2. Disconnect the power outlet connector.
SWITCHES / ELECTRIC DEVICES
KYRON SM - 2005.09

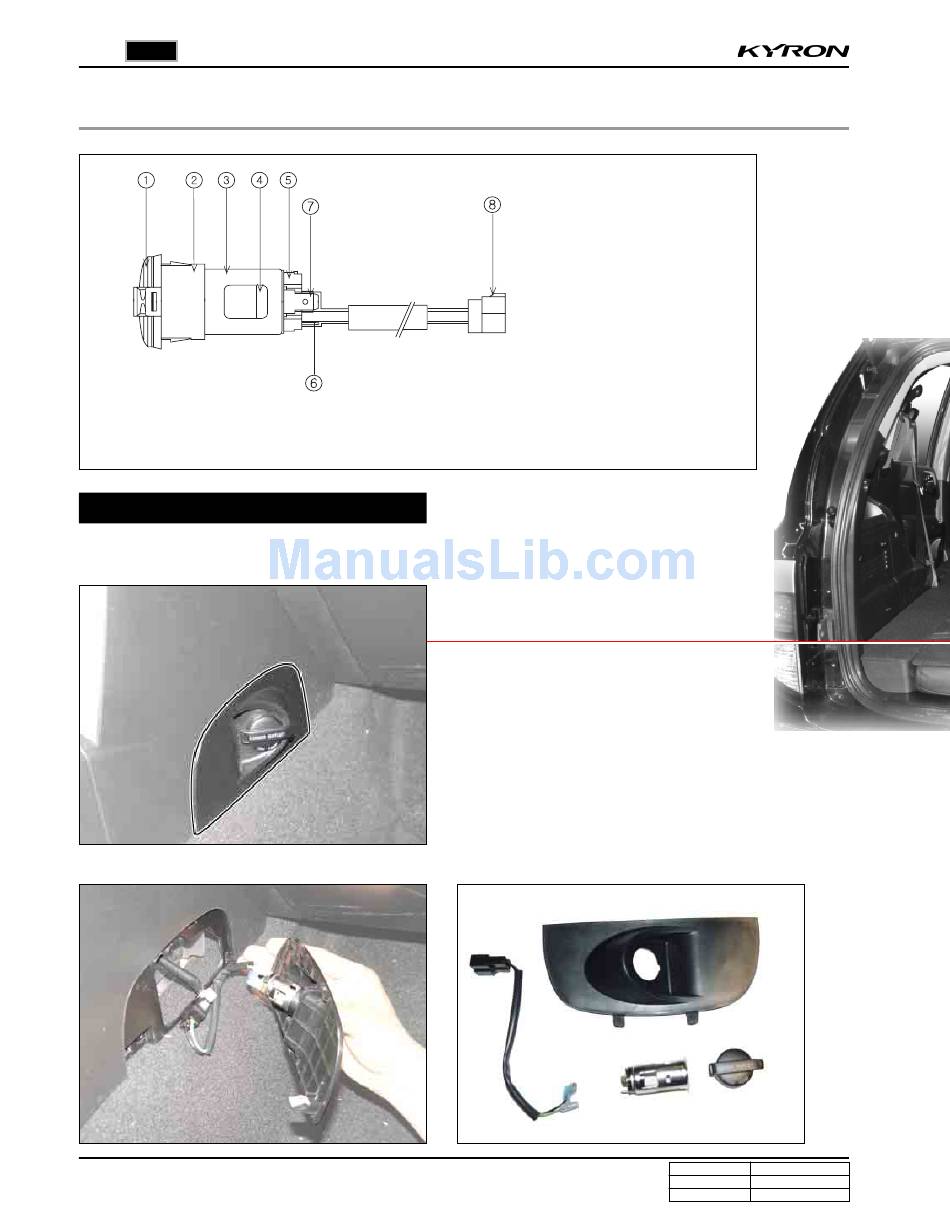

1. Cap
2. Cap cover
3. Socket
4. Installation holder
5. Insulator
6. (+) terminal
7. (-) terminal
8. Connector
3. Remove the power outlet from the bracket.
