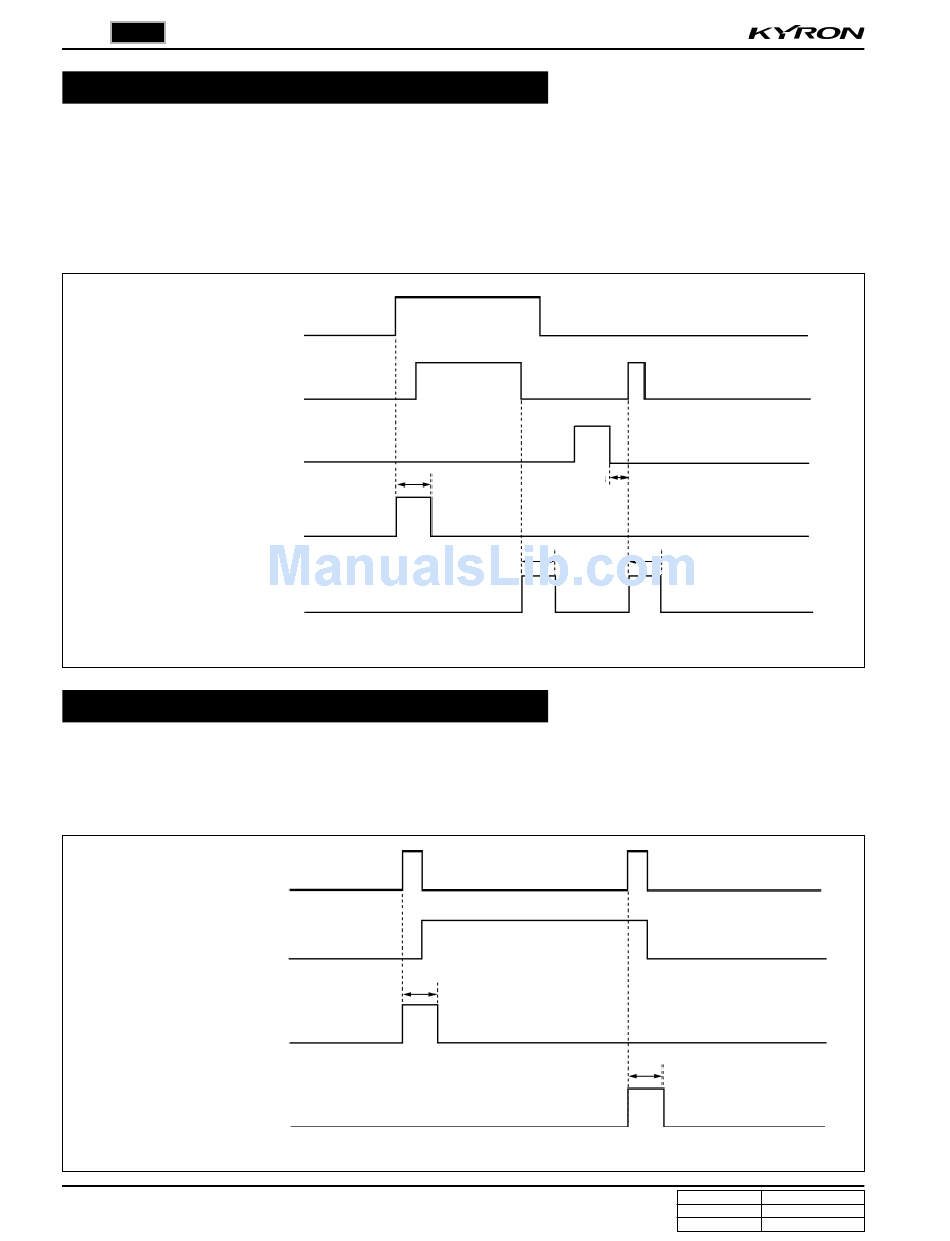

Door Lock/Unlock Control by Door Lock Switch
1. The door lock system outputs "LOCK" for 0.5 seconds when positioning the driver's or passenger's door lock
switch to the lock position.
2. The door lock system outputs "UNLOCK" for 0.5 seconds when positioning the driver's or passenger's door lock
switch to the unlock position.
3. "LOCK" or "UNLOCK" by the door lock switch is ignored when outputting the "LOCK" or "UNLOCK" by other functions.
4. All door lock signals are "UNLOCK" for 0.5 seconds just for once when receiving the "LOCK" signal within 0.5
seconds after closing the driver's or passenger's door while the ignition key is removed.
DR DOOR
LOCK SW
UNLOCK
PS DOOR
LOCK SW
UNLOCK
DR/PS DOOR
SW
DOOR LOCK
RELAY
DOOR UNLOCK
RELAY
Door Lock/Unlock by Central Door Lock Switch
1. The door lock system outputs "LOCK/UNLOCK" for 0.5 seconds when operating the central door lock switch.
(However, if the door lock switch (front doors) is at LOCK position, the system outputs UNLOCK signal, and vice
versa.)
2. The "LOCK" or "UNLOCK" inputs from the central door lock switch in armed mode are ignored.
CENTRAL
LOCK SW
LOCK
MONITORING
UNLOCK
DOOR LOCK
RELAY
DOOR UNLOCK
RELAY
RKSTICS (REKES + STICS) / STICS
KYRON SM - 2005.09
LOCK
LOCK
OPEN
CLOSE
T1
ON
OFF
ON
OFF
T1: 0.5 sec
ON
OFF
T1
ON
OFF
ON
OFF
T3
T2
T2: 0.5 sec T3: within 0.5 sec
T1: 0.5 sec T2: 0.5 sec
T4
T4: 0.5 sec
T2
