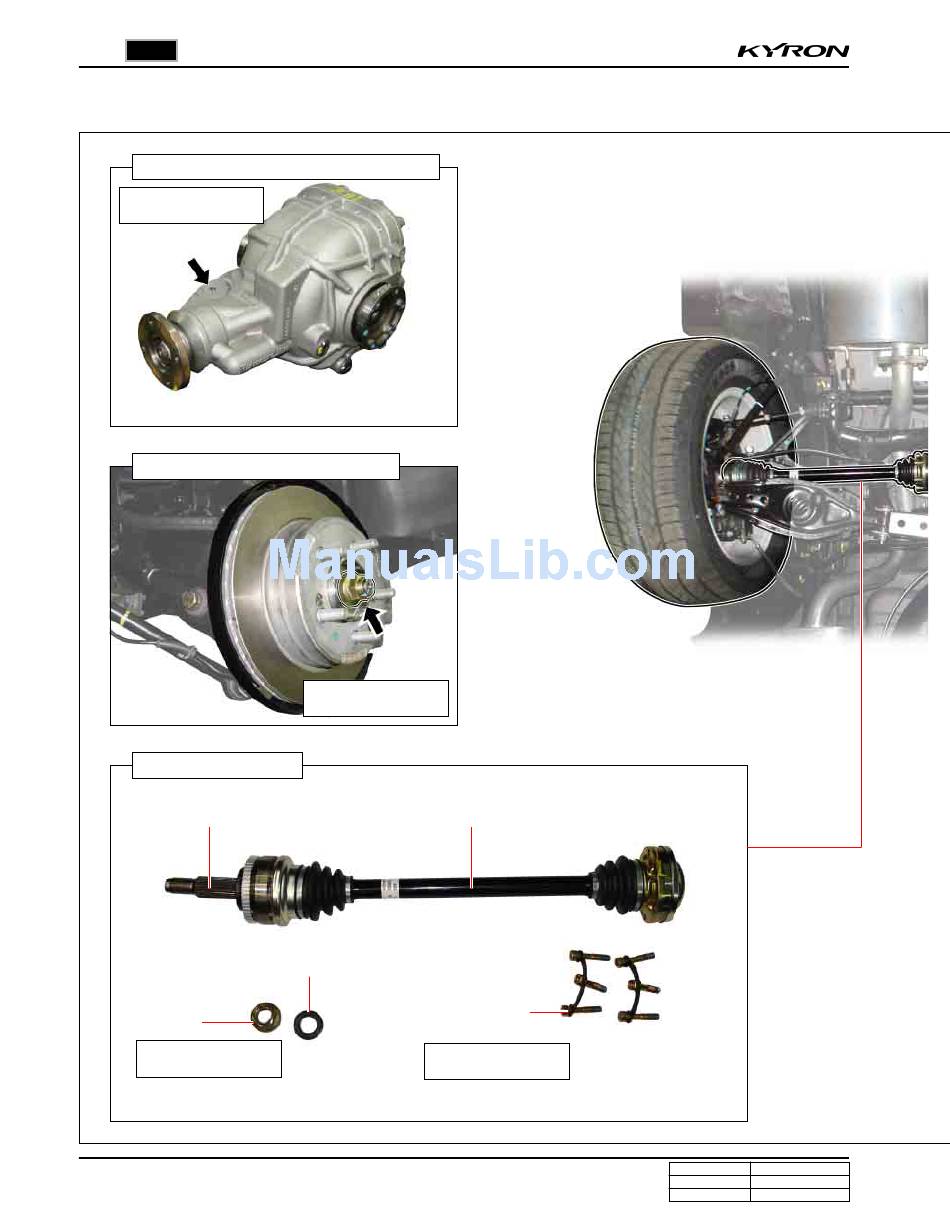

3. IRDA (INDEPENDENT REAR DRIVE AXLE)

IRDA Axle Mounting Bolt (30 mm - 1 EA)
Tightening torque:
95 ~ 142 Nm
Brake Disc Lock Nut (30 mm - 1 EA)
* Caulk the nut after tightening
Axle Shaft Assembly
Axle shaft
Hub plane washer
Lock nut
Tightening torque:
250 ~ 350 Nm
AXLE
KYRON SM - 2005.09
Tightening torque:
250 ~ 350 Nm
Rear axle shaft
Mounting bolt
(axle side)
Tightening torque:
70 ~ 80 Nm
