Description of Burglar Alarm Function
1. Definitions of Door Open and Close
1) Definitions in theft deterrent mode
Door OPEN: Any of door switches (engine hood, front doors, rear doors, tailgate) output "OPEN" signal.
Door CLOSE: All door switches (engine hood, front doors, rear doors, tailgate) output "CLOSE" signal.
2) Door LOCK: Any of door lock switches (front doors, rear doors, tailgate) output "LOCK" signal.
Door UNLOCK: All lock switches (front doors, rear doors, tailgate) output "UNLOCK" signal.
2. Armed mode activation requirements
1) The "LOCK" output is "ON" when receiving the "LOCK" signal from transmitter while the ignition key is re-
moved and all doors are closed. The armed mode is activated when the door lock switch is locked (theft
deterrent horn output: once, hazard relay output: twice).
2) The theft deterrent horn and hazard relay outputs are "ON" when receiving the "LOCK" signal from the remote
control key again in armed mode (theft deterrent horn output: once, hazard relay output: twice).
3) When receiving "LOCK" signal from the remote control key while any of doors is not closed, only the "LOCK"
output can be done and then activates the armed ready mode (without theft deterrent horn and hazard warning
flasher). At this moment, if the ignition key is in the ignition switch, the door unlock switch is turned "ON" or
the door lock switch is unlocked, it cancels the armed mode and activates the normal mode.
4) When the door is not opened or the ignition key is not inserted into ignition switch for 30 seconds after
receiving "UNLOCK" signal, it outputs "LOCK" and then activates armed mode (RELOCK operation). Also, at
this moment, the system outputs hazard warning flasher twice.
5) The armed mode will not be activated except above conditions.
Ex) The armed mode will not be activated when the door is locked by the ignition key.
CHANGED BY
EFFECTIVE DATE
AFFECTED VIN

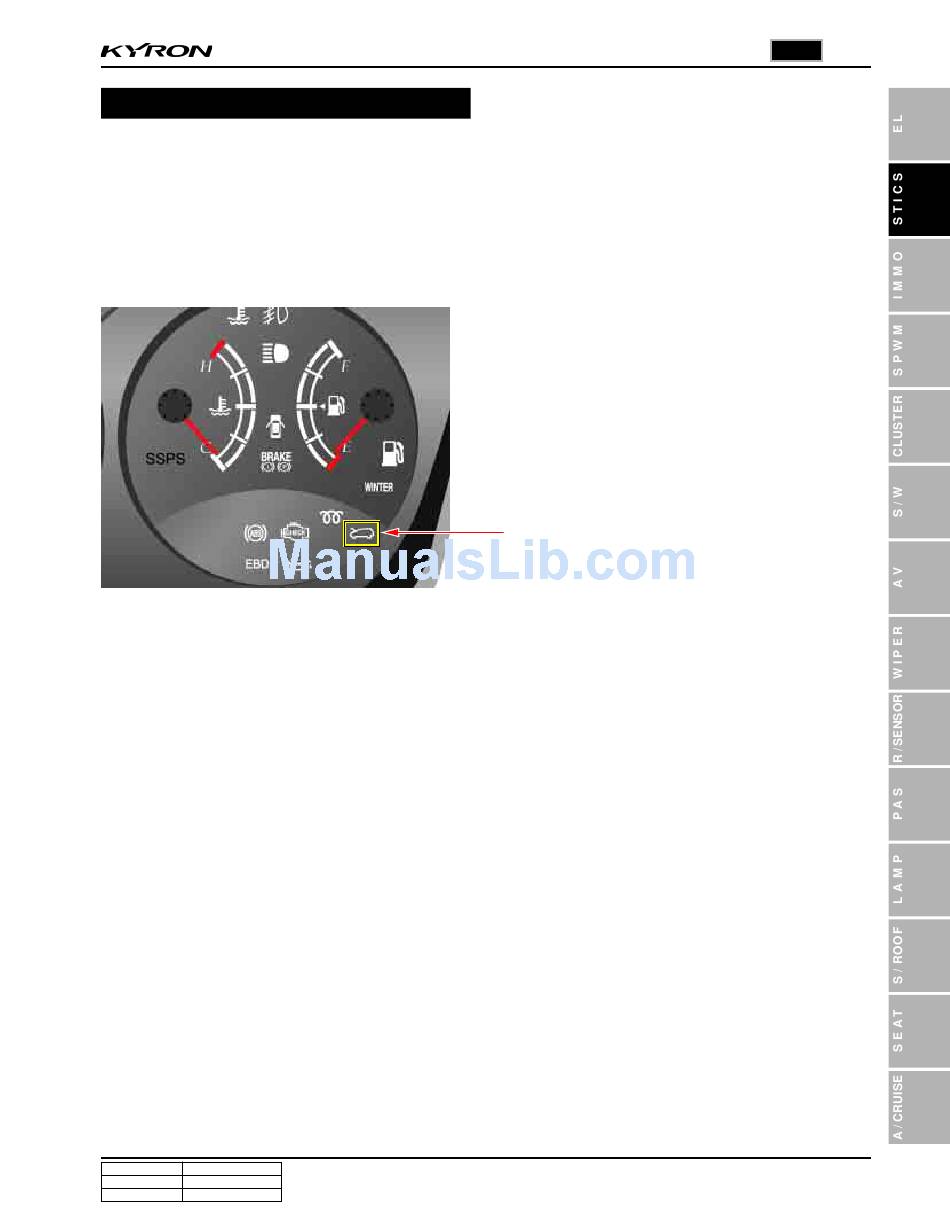

Engine hood open warning lamp
The warning lamp comes on when the engine hood
is open.
