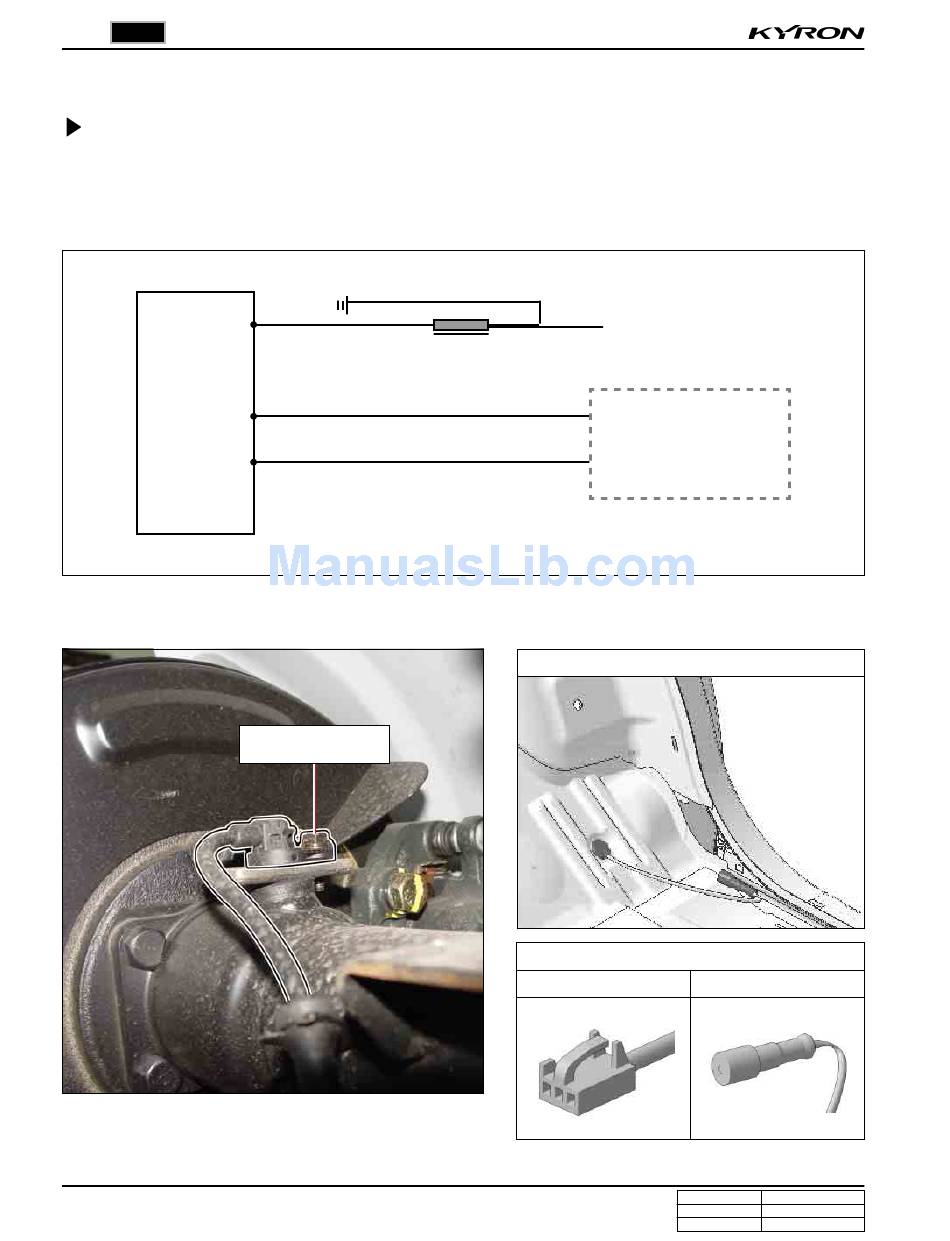

Non-ABS Equipped Vehicle – With One Wheel Speed Sensor
The wheel speed sensor is installed on the rear right wheel regardless of the ABS/ESP installation.
This sensor is to signal the vehicle speed to the engine ECU, TCCU, transmission, and instrument panel. There is
no separate unit to process the wheel speed sensor signal. The wheel speed sensor is connected to the engine ECU
(terminal 36), where its signal is processed, and is connected to other related systems through CAN communication.
36
KYRON
D27DT
E
54
C
73
U
Location of the wheel speed sensor (rear right wheel)
ABS/ESP SYSTEM
KYRON SM - 2005.09
Wheel speed sensor
CAN HI
CAN LO
Tightening torque:
6 ~ 8 Nm
Battery (B+)
Instrument panel
TCU
TCCU
Location of the Sensor Connector
Connector Appearance
In vehicle without ABS In vehicle with ABS/ESP
