SSANGYONG Kyron Repair Manual page 728

34 8510

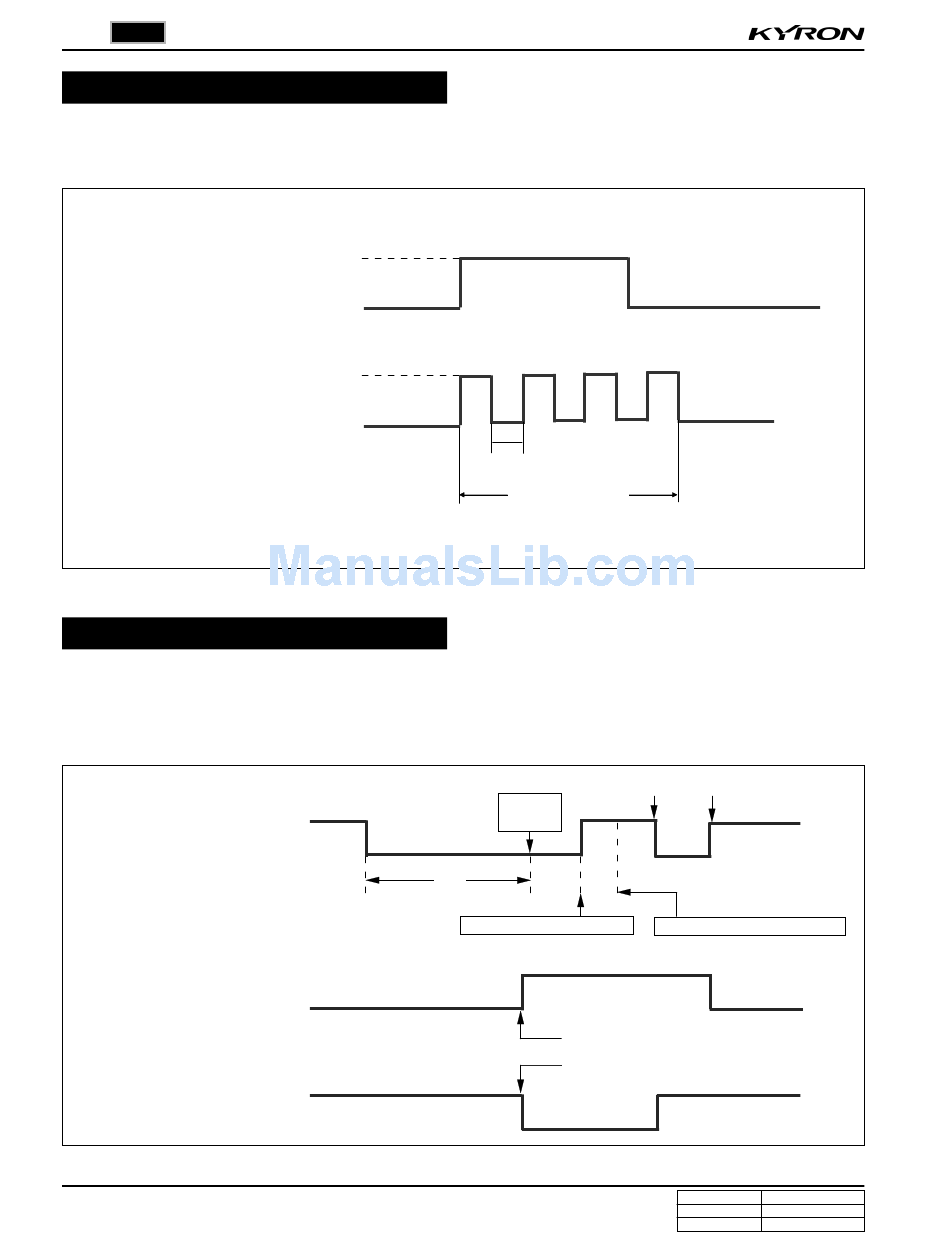

ESP Warning Lamp Blinking in Control
ESP warning lamp blinks when ESP control is activated. If the activation reaches a certain limitation, a beep sounds
to warn the driver. The ESP warning lamp goes off when ESP function is deactivated. Even when the ESP is
operated for a very short period of time, the ESP warning lamp blinks minimum of 4 times every 175 milliseconds.
ESP operation
(including TCS)
ESP warning lamp
ESP OFF Switch Monitoring
When the ESP unit recognizes that the ESP OFF switch is pushed for over 10 seconds, the ESP unit determines
it as a ESP OFF switch malfunction. When the ESP OFF switch is pushed, the ESP system is resumed after 10
seconds. However, the ESP warning lamp comes on when the ESP OFF switch is pushed (for over 150 ms) and
then goes out when the ESP system is resumed. When the ESP OFF switch returns to normal position, the ESP
unit resets the ESP OFF switch for approx. 3.5 seconds.
HI
ESP operation
LO
ESP function
(including TCS)
OFF
ON
ESP warning lamp
OFF
SWITCHES / ELECTRIC DEVICES
KYRON SM - 2005.09
ON
OFF
ON
OFF
ON
175 ms
175 ms
Min. 4 times
Detect
failure
10 3.5
sec sec
Return to switch signal
Cancellation of ESP OFF mode
Turning the ESP warning lamp off
Push Release
Reset to normal condition
