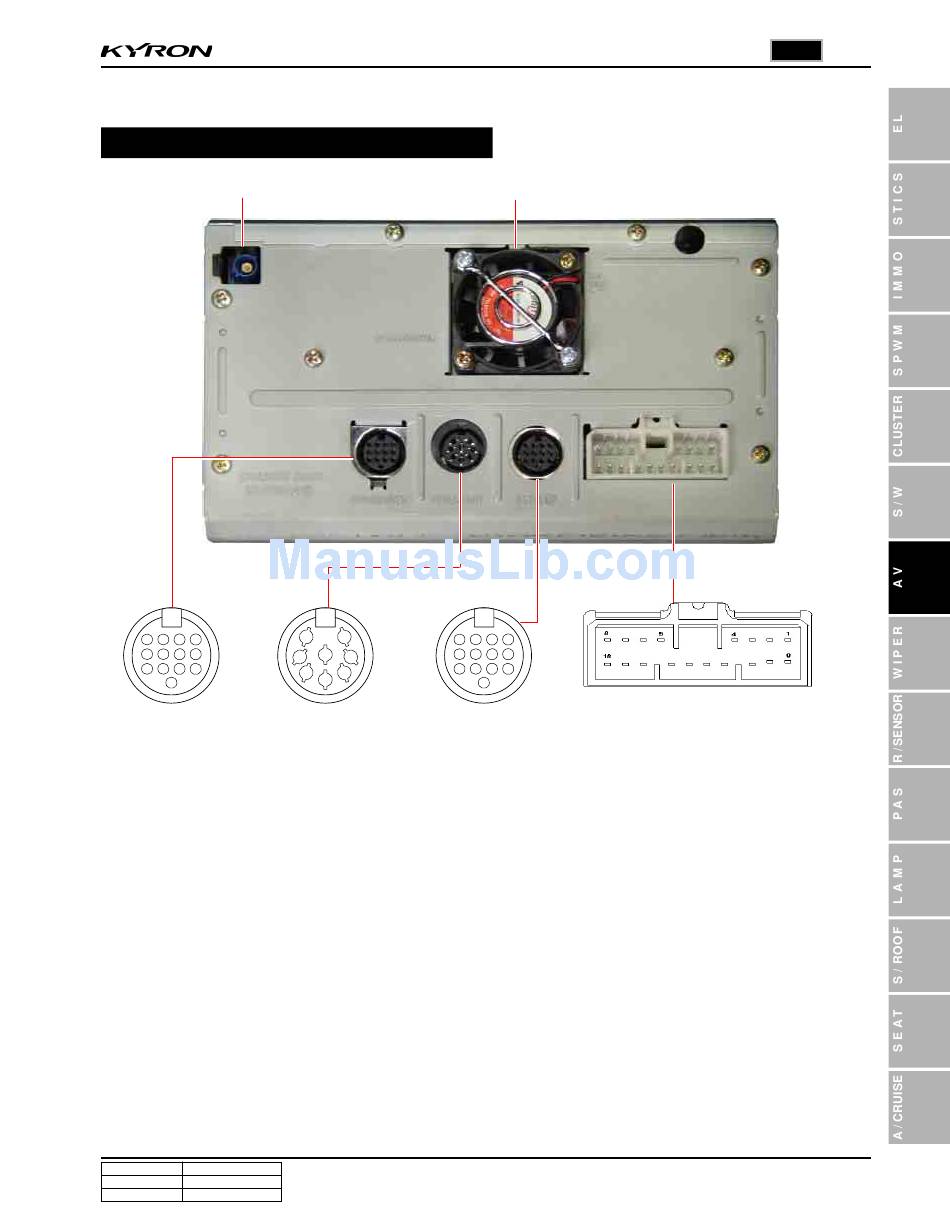

Wiring Connection
GPS connector terminal
DVD CHANGER
4 3 2 1
8 7 6 5
12 11 10 9
13
1. BACK UP 1. TUNER ON
2. BACK UP 2. BACK UP +
3. VIDEO GND 3. VIDEO GND
4. VIDEO signal 4. VIDEO SIGNAL
5. GND 5. GND
6. - 6. BACK UP
7. RESET 7. R/V VIDEO
8. SPDIF GND 8. R/V GND
9. SPDIF signal
10. CAN -GND
11. CAN-HI
12. CAN-LO
13. DVDC ON
CHANGED BY
EFFECTIVE DATE
AFFECTED VIN
TUNER
7 6
4 3
8 7
8
3 1
12 11 10 9
5 4
2
1. MUTE
2. NAVI ON/OFF
3. NAVI Voice GND
4. NAVI voice
5. GND
6. -
7. RESET
8. SPDIF GND
9. SPDIF signal
10. CAN -GND
11. CAN-HI
12. CAN-LO
13. AMP ON
Fan
DSP amplifier
2 1
6 5
13
1. CAN-HI
2. -
3. Illumination (+)
4. ACC+
5. BACK UP +
6. -
7. Speed pulse
8. Reverse
9. CAN-LO
10. -
11. Illumination (-)
12. -
13. -
14. GND
15. ALT D+
16. Steering wheel remote control
17. Steering wheel remote control GND
18. PARKING SENSOR
7
8932
AV SYSTEM
