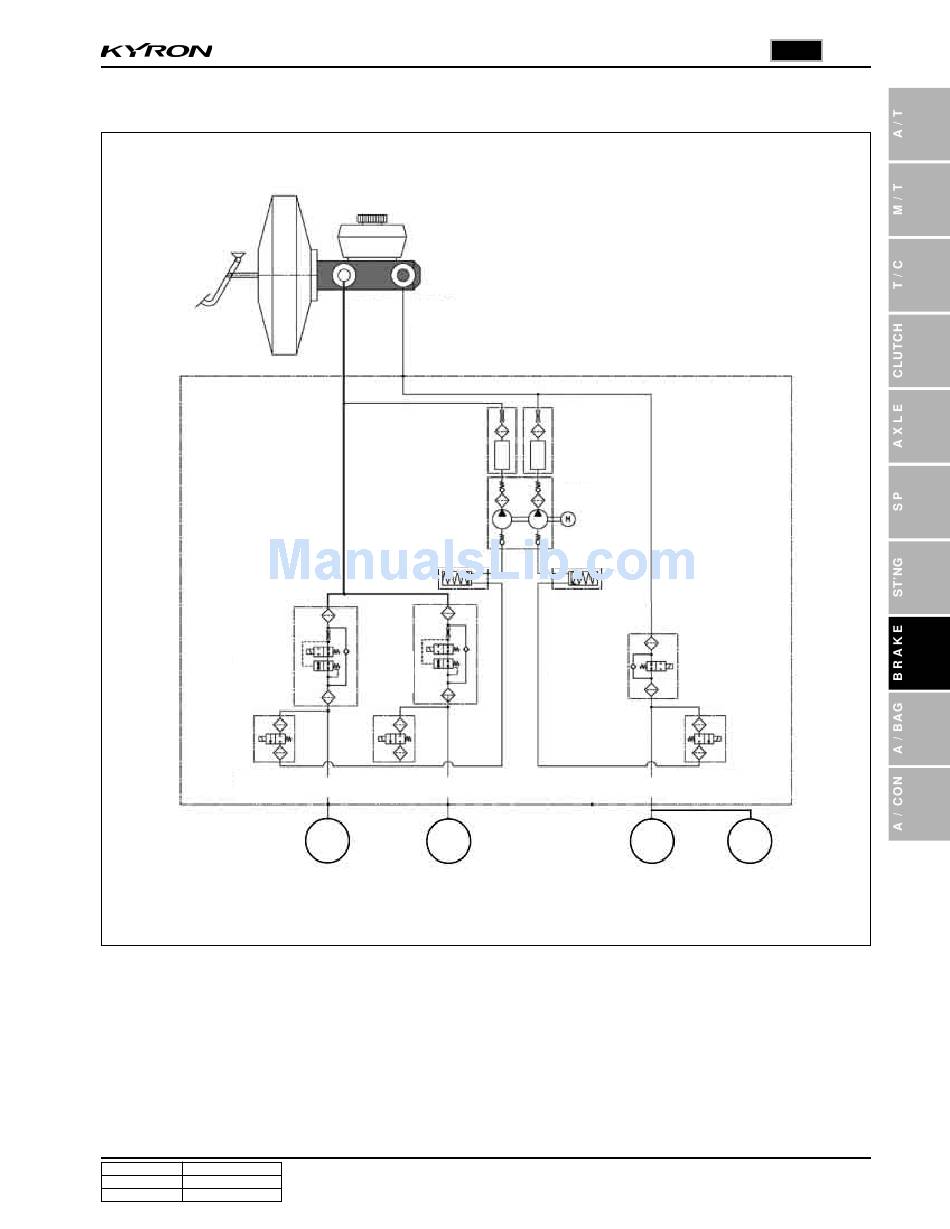

4. HYDRAULIC CIRCUIT OF ABS

Inlet valve
(FR)
Outlet valve
(FR)
The vehicle equipped only with the ABS controls the wheel's braking force using or channel 4-sensor method.
The front wheels that are the primary circuit of the brake system is composed of two wheel speed sensors and two
channel valves system with two inlet valves and two outlet valves. The rear wheels that are the secondary circuit of
the brake system is composed of two wheel speed sensors, one inlet valve and one outlet valve. This system is
similar to the one from the previous model.
CHANGED BY
EFFECTIVE DATE
AFFECTED VIN
Master cylinder
Secondary circuit
Primary
circuit
Low pressure
accumulator
Inlet
valve
(FL)
Outlet valve
(FL)
Wheel (FR) Wheel (FL)
Damping
chamber
Pump
Low pressure
accumulator
Inlet valve
(all rear
wheel)
Outlet valve
(all rear wheel)
Wheel (RR) Wheel (RL)
65
4890
ABS/ESP SYSTEM
KYRON SM - 2005.09
