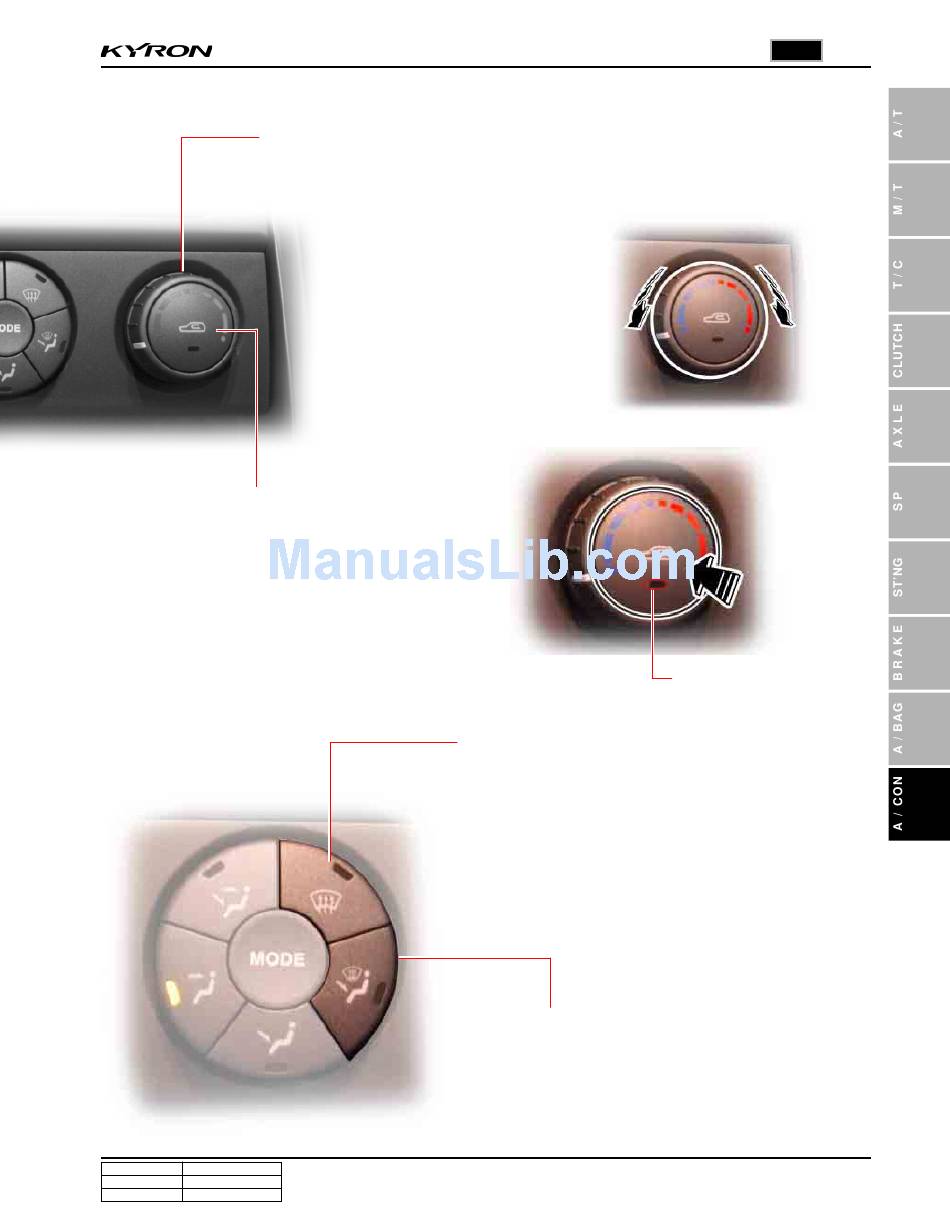

Temperature Control Switch
The temperature can be adjusted by rotating the switch.
Clockwise direction (red): Higher temperature
Counterclockwise direction (blue): Lower temperature
Air Source Selection Switch
When pressing this switch, the air recirculates in the
vehicle inside and indicator comes on. When pressing it
again, the indicator goes off and the fresh air comes in.
CHANGED BY
EFFECTIVE DATE
AFFECTED VIN
Lower
temperature
Defroster Switch
When pressing this switch, the airflow direction will be changed
to windshield and door glasses, the air conditioner operates
automatically and outside air comes in.
At this moment, the indicator comes on. When the defrost-
ing is completed, press the switch to return to normal
operations.
Defroster & Foot Mode
The air flows towards face and floor and the
indicator comes on.
