Tail Lamp/Back-up Lamp/RR Fog Lamp
Preceding Work: Disconnect the negative battery cable.

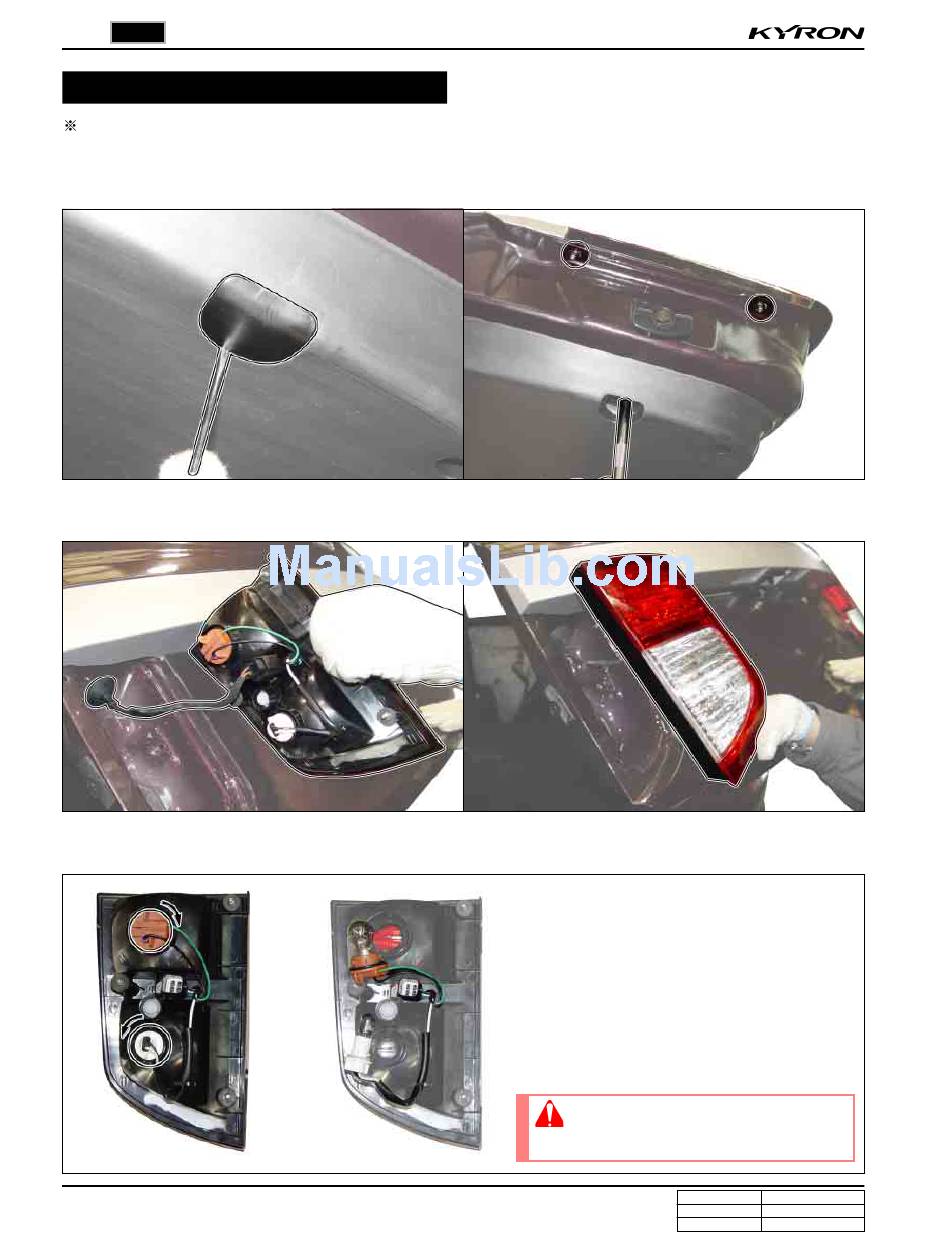

1. Open the tailgate and remove the bolt cover. Then, unscrew three mounting nuts (10 mm) and remove the rear
combination lamp assembly (tail lamp/back-up lamp/RR fog lamp).
2. Disconnect the connector and remove the rear combination lamp assembly.
3. Open the bulb holders/connectors by turning them counterclockwise and remove the bulbs.
LAMP
KYRON SM - 2005.09
NOTICE
• Use only specified bulb for replacement.
