4. FUNCTIONS AND SPECIFICATIONS OF RAIN SENSING WIPER

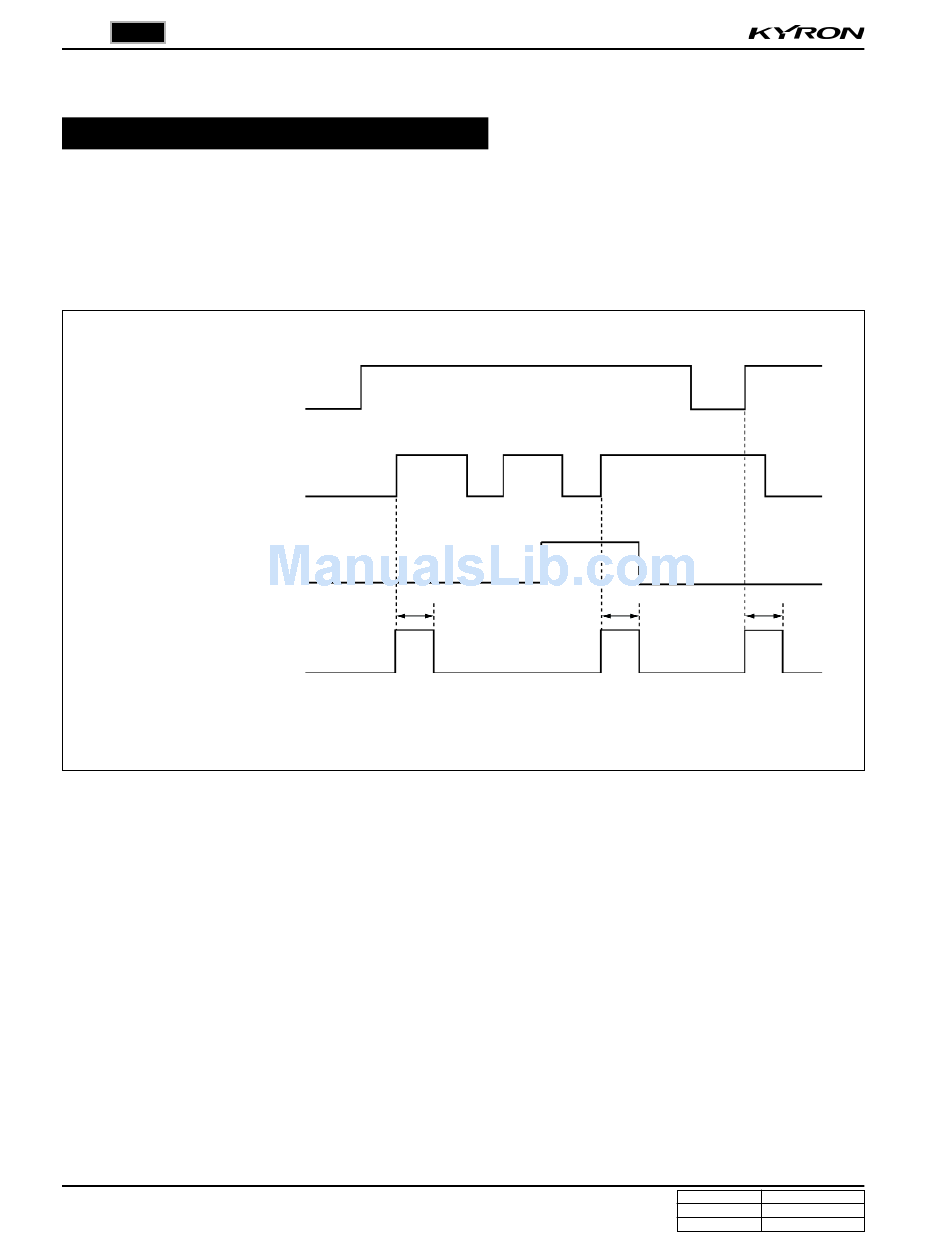

Power-up Reminder Wiper
1. When turning off and on the auto INT switch, the system drives the wiper motor through LOW relay regardless of
communication with rain sensor.
2. The wiper relay (LOW) is turned on and the wiper motor runs one cycle when changing the wiper switch to
"AUTO" position from any other positions (while the ignition key is in "ON" position).
When the wiper switch is turned to "ON" position again from other positions, the system Drives the wiper motor
through LOW relay one cycle only when the rain sensor detects the "Rain Detected" signal.
ON
KEY IN &
IGN2
OFF
ON
INT AUTO
SW
OFF
Rain
detected
RAIN
SENSOR to
OFF
RKSTICS
ON
WIPER
LOW RELAY
OFF
RAIN SENSOR UNIT (WITH AUTO RIGHT SENSOR)
KYRON SM - 2005.09
T1
T1: 1 cycle
T1 T1
